Produktbeskrivning

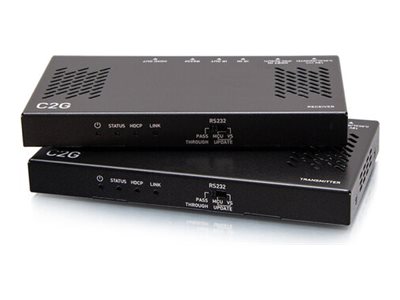

The HDMI HDBaseT + RS232 and IR over cat extender box transmitter to box receiver (18Gbps) - 4K 60Hz allows a 4K HDMI source to be extended up to 328ft to a 4K display using a single Cat6a Ethernet cable. This is an ideal solution where HDMI video and audio in conference rooms, classrooms, lecture halls, and many other installation needs are far beyond the length limitations of standard HDMI cabling. Extend 4K HDMI up to 230 feet and 1080p up to 328 feet using a Cat5e or Cat6 cable. For longer 4K distances, extend 4K HDMI or up to 328 feet using a Cat6a cable. This HDMI HDBaseT receiver supports Visual Lossless Compression (VLC), which means the compressed data will appear identical to the uncompressed data. The receiver is also HDCP 2.2 compliant, making sure that the connection from the source is secure. With bidirectional Power over Cable (PoC) support, one power adapter at either transmitter or receiver side can power both units, so no additional power adapter is required, allowing for greater flexibility in installations. Advanced users can control bi-directional IR and device control through the RS232 port.



Teknisk specifikation

Typ av enhet	Video/ljud/seriell förlängare
Formfaktor	Extern
Färg	Svart

Anslutningsteknik	Kabelansluten
Datalänkprotokoll	HDMI, HDBaseT
Dataöverföringshastighet	18 Gbps
Frekvensband	600 MHz
Max upplösning	4K @ 60 Hz
Max överföringsavstånd	100 m
Funktioner	4 K upplösningssupport, 8KV ESD Protector, power over HDBaseT (PoH), CEC-passthrough, Dolby TrueHD support, DTS-HD Master Audio support, fungerar med Dolby Atmos, fungerar med DTS:X, Visually Lossless Compression
Standarder som följs	HDCP 2.2

Gränssnitt	1 x HDMI (inmatning) - 19-stifts HDMI typ A hona 1 x nätverk (inmatning) - RJ-45 hona 1 x nätverk (utmatning) - RJ-45 hona 1 x HDMI (utmatning) - 19-stifts HDMI typ A hona 1 x RS-232 (inmatning) hona 1 x RS-232 (utmatning) hona

Standarder som följs	EDID-kompatibel

Nätdel	Extern strömadapter
Installerat antal	2
Nätspänning	DC 18 V

Vikt	630 g
Dimensioner (BxDxH)/vikt	Sändare: 13.64 cm x 7.42 cm x 1.52 cm / 260 g Mottagare: 13.64 cm x 7.42 cm x 1.52 cm / 260 g

Service och support	Begränsad garanti - 3 år

Min temperatur vid drift	0 °C
Max temperatur vid drift	45 °C
Luftfuktighet vid drift	10 - 90 % (icke-kondenserade)
