Produktbeskrivning

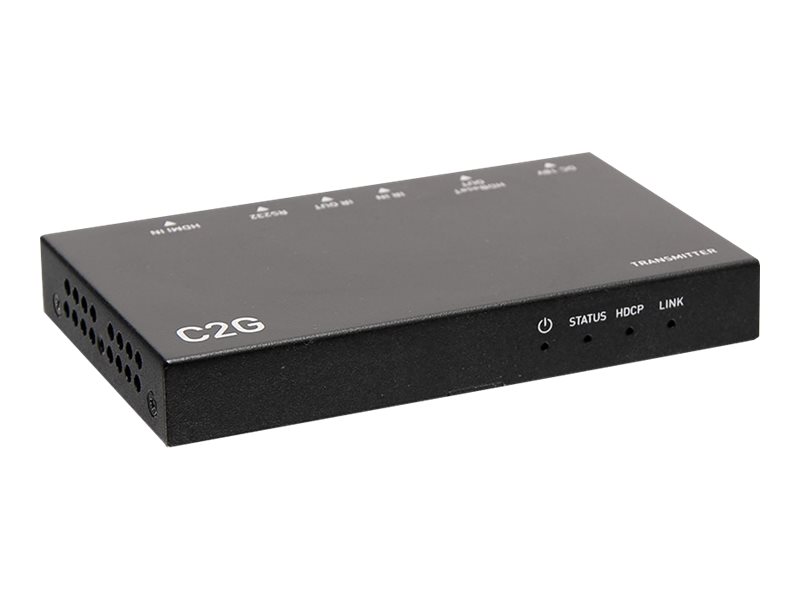

The HDMI Ultra-Slim HDBaseT + RS232 and IR over Cat Extender Box Transmitter - 4K 60Hz allows a 4K HDMI source to be extended up to 130ft to a 4K display using a single Cat6a Ethernet cable. This is an ideal solution where HDMI video and audio need to be extnded to displays in conference rooms, classrooms, lecture halls, and many other installation needs that are far beyond the length limitations of standard HDMI cabling.

This transmitter extends HDMI signals over a single network patch cable. Extend 4K HDMI up to 115 feet and 1080p up to 230 feet using a Cat5e or Cat6 cable. For longer 4K distances, extend 4K HDMI or up to 130 feet using a Cat6a cable.

This HDMI HDBaseT transmitter is HDCP 2.2 compliant, making sure that the connection from the source is secure. With bi-directional PoC support, one power adapter at either transmitter or receiver side can power both units, so no additional power adapter is required, allowing for greater flexibility in installations. Advanced users can control bi-directional IR and RS232 pass through.



Egenskaper

Colour
Black

Warranty
3 Years

Connector 1:
(1) HDMI Female, (1) DC Power Plug

Connector 2:
(1) RJ45 Female



Teknisk specifikation

Typ av enhet	Video/ljud/seriell förlängare
Formfaktor	Extern
Färg	Svart

Anslutningsteknik	Kabelansluten
Datalänkprotokoll	HDMI, HDBaseT
Dataöverföringshastighet	10.2 Gbps
Max upplösning	4096 x 2160 @ 60 Hz
Max överföringsavstånd	70 m
Funktioner	7.1-kanaligt ljudstöd, 8KV ESD Protector, Dolby TrueHD support, DTS-HD Master Audio support, fungerar med Dolby Atmos, fungerar med DTS:X, IR genomströmning
Standarder som följs	HDCP 2.2

Gränssnitt	1 x HDMI-inlopp - 19-stifts HDMI typ A 1 x HDBaseT (utmatning) - RJ-45 hona 1 x RS-232 1 x IR (utmatning) hona 1 x IR (inmatning) hona

PoE (Power Over Ethernet)	PoC
Nätdel	Extern strömadapter
Nätspänning	DC 18 V
Energiförbrukning vid drift	8.88 Watt

Bredd	10.88 cm
Djup	6.42 cm
Höjd	1.5 cm
Vikt	180 g

Service och support	Begränsad garanti - 3 år

Min temperatur vid drift	0 °C
Max temperatur vid drift	45 °C
Luftfuktighet vid drift	10 - 90 % (icke-kondenserade)
