Produktbeskrivning

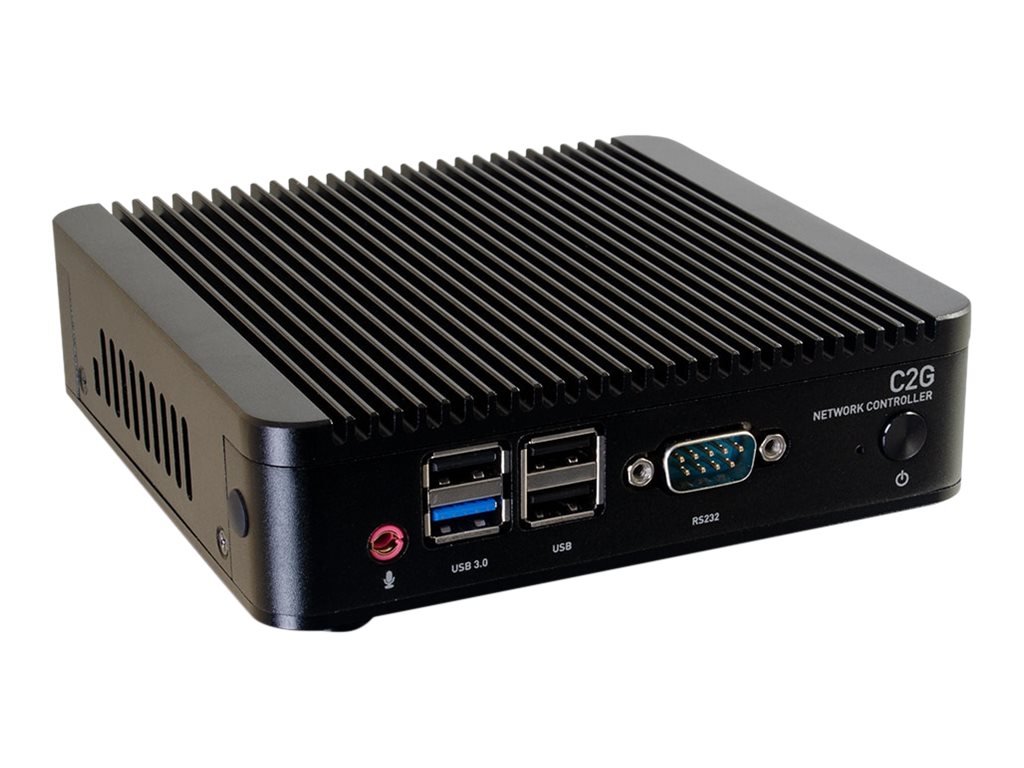

The Network Controller for HDMI over IP is a Linux-based PC that allows users to control HDMI over IP products, supporting video wall and multiview connectivity. The Network Controller may be managed via a Web interface or the C2G AVoIP Control Smartphone & Tablet App.

When installed on a local area network (LAN), the Network Controller will scan the LAN for connected C2G HDMI over IP products allowing the user to auto-discover, configure, manage connectivity and support firmware upgrades for the AV over IP devices through the Web interface. The Network Controller may also be managed by the C2G AVoIP Control App for a more user-friendly experience.

An Application Program Interface (API) is available ― supporting several third-party partner control applications running on smartphones and tables.

Note: When installed in an electrically noisy environment, an STP cable must be used. Also, cross-connection reduces the effective distance depending on the grade of twisted cable used.



Egenskaper

Connector 1
(1) 3.5mm Female, (3) USB-A Female, (1) USB 3.0 A Female, (1) DB9 Male

Connector 2
(1) VGA Female, (1) HDMI Female, (2) RJ-45 Female, (1) 3.5mm Female

Colour
Black

Warranty
3 Years



Teknisk specifikation

Typ av enhet	Enhet för nätverksadministration
Bredd	13.3 cm
Djup	12.7 cm
Höjd	3.5 cm
Vikt	700 g
Färg	Svart

Installerade processorer	1 x Intel Celeron J1800 2.4 GHz
Max antal som stöds	1
RAM	2 GB DDR3 SDRAM

Formfaktor	Extern
Antal portar	2
Anslutningsteknik	Kabelansluten
Funktioner	Fast programvara kan uppdateras, webbaserad hantering

Gränssnitt	1 x ljudingång - mini-jack 3 x USB 2.0 - Type A 1 x USB 3.0 - Type A 1 x RS-232 - DB-9 1 x VGA-utgång 1 x HDMI-utgång 2 x nätverk - RJ-45 1 x linjeutgång för ljud - mini-jack

Standarder som följs	FCC, RoHS, WEEE

Medföljande OS	Ubuntu 18.04 LTS

Service och support	Begränsad garanti - 3 år

Min temperatur vid drift	0 °C
Max temperatur vid drift	50 °C
Luftfuktighet vid drift	10 - 90 % (icke-kondenserade)
