Produktbeskrivning

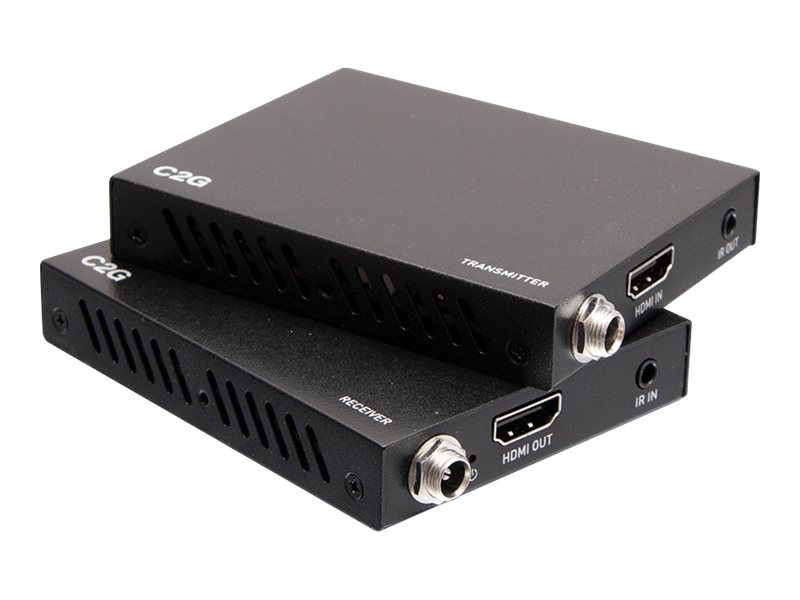

The HDMI over Cat Extender Box Transmitter to Box Receiver - 4K 60Hz allows a 4K HDMI source to be extended up to 131ft to a 4K display using a single Cat6/6a Ethernet cable. This is an ideal solution where HDMI video and audio in conference rooms, classrooms, lecture halls, and many other installation needs are far beyond the length limitations of standard HDMI cabling.

This HDMI over Cat Extender is HDCP 2.2 compliant, making sure that the connection from the source is secure. Multi-channel audio formats are supported, including PCM 7.1, Dolby TrueHD and DTS-HD Master Audio. With bi-directional Power over Cable (PoC) support, one power adapter at either transmitter or receiver side can power both units, so no additional power adapter is required, allowing for greater flexibility in installations.

Note: Ensure a solid, reliable connection between the 4K HDMI Extender and critical equipment. We suggest using HDMI Cables with gripping connectors that provide greater port retention than standard HDMI connectors.

Signal Specifications

• Video Resolution: Up to 4K resolution at 60Hz, 4:4:4

• Transmitter Input/Output Ports: 1 x HDMI IN; 1 x IR OUT; 1 x RJ45; 1 x DC 12V IN

• Receiver Input/Output Ports: 1 x HDMI OUT; 1 x IR IN; 1 x RJ45; 1 x DC 12V IN

• Audio Formats: Supports Multichannel audio up to PCM 7.1, Dolby TrueHD and DTS-HD Master Audio

Electrical Specification

• Power Supply: Bi-directional Power over Cable (PoC), one power adapter at either transmitter or receiver side can power both units

• Power Adapter: Input: 100-240VAC, 50-60Hz

• Power Adapter: Output: 12VDC, 1A

Physical Specifications

• Operating Temperature: 0°C to 45°C; 10-90% RH (Non-Condensing)

• Storage Temperature: -20°C to 70°C; 10-90% RH (Non-Condensing)

Physical Characteristics

• Transmitter Dimensions (LxWxH): 90x70x15.2mm

• Transmitter Dimensions with Mounting Brackets (LxWxH): 90x90x15.2mm

• Receiver Dimensions (LxWxH): 90x70x15.2mm

• Receiver Dimensions with Mounting Brackets (LxWxH): 90x90x15.2mm

• DC Jack: OD = 6.3mm, ID = 2.0mm; CU: Nickel Plating

• Power Adapter Cable Length: 1800±50mm

• QC Inspection: Bi-directional PoC Test, max length cable transmission, 1080p and 4K 60Hz 4:4:4 video/ image test on all ports, IR control function test and accessory functionality.



Egenskaper

Colour
Black

Warranty
3 years

Connector 1:
(1) HDMI Female, (1) DC Power Plug, (1) RJ45 Female

Connector 2:
(1) HDMI Female, (1) DC Power Plug, (1) RJ45 Female



Teknisk specifikation

Typ av enhet	Förlängd räckvidd för audio/video
Formfaktor	Extern
Färg	Svart

Anslutningsteknik	Kabelansluten
Datalänkprotokoll	HDMI
Max upplösning	4096 x 2160 @ 60 Hz
Max överföringsavstånd	50 m
Statusindikatorer	Strömförsörjning, status
Funktioner	7.1-kanaligt ljudstöd, 8KV ESD Protector, ström över kabel (PoC), Dolby TrueHD support, DTS-HD Master Audio support, fungerar med Dolby Atmos, fungerar med DTS:X, IR genomströmning

Gränssnitt	1 x HDMI-inlopp - 19-stifts HDMI typ A hona 1 x HDMI-utlopp (utmatning) - 19-stifts HDMI typ A hona 2 x - RJ-45 hona 1 x IR (utmatning) hona 1 x IR (inmatning) hona

Inkluderade tillbehör	IR-sensor, 4 monteringsfästen, IR-bredbandsmottagare
Medföljande kablar	Strömkabel - 1.8 m
Standarder som följs	HDCP 2.2

Nätdel	Extern strömadapter
Nätspänning	DC 12 V

Bredd	7 cm
Djup	9 cm
Höjd	1.52 cm
Vikt	580.6 g

Service och support	Begränsad garanti - 3 år

Min temperatur vid drift	0 °C
Max temperatur vid drift	45 °C
Luftfuktighet vid drift	10 - 90 % (icke-kondenserade)
