Produktbeskrivning

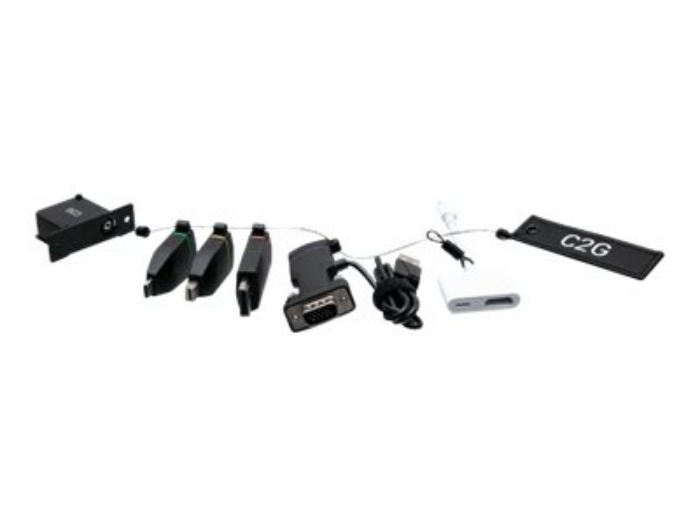

The Patent Pending Retractable Table Box Mount 4K HDMI Adapter Ring is the perfect addition to conference rooms, huddle spaces, lecture halls, or classrooms to make sure that anyone can connect. The standard configuration includes the adapters to connect nearly any device to the in-room display while supporting up to a 4K video resolution. Choose from HDMI to DisplayPort, Mini DisplayPort, USB-C, Lightning, or VGA to meet connectivity challenges.
Color Coded Adapters
The DisplayPort, Mini DisplayPort, USB-C, and VGA adapters are color-coded with a band that saves time and frustration by making it easy to identify the adapter you need.
Integrated Pull Tab
Quickly grab the adapters when you need them with the integrated Pull Tab that is also available to be customized to feature your company or organization logo. Minimum order quantities apply to customized Pull Tabs.
Retractable Table Box Mount
The Retractable Table Box Mount attaches to a Wiremold AVIP, Extron MAAP, or FSR IPS opening in a table box, providing mounting flexibility to best fit your environment. The retractor extends out to 4.9ft, ensuring that the adapters are always within reach when needed, and the retractor is tested to over 20,000 extension cycles for a long service life.
Tools Included
To simplify the process, the installation tool is included.
Egenskaper
ColourBlack
WarrantyLifetime
Connector 1 :(5) HDMI Female
Connector 2 :(1) Mini DisplayPort Male, (1) DisplayPort Male, (1) USB-C Male, (1) Lightning Male, (1) VGA Male, (1) USB-A Male
Teknisk specifikation
Allmänt
| Kabeltyp | Videoadaptersats stöd för 4K |
|---|
| Inkluderad kvantitet | 5 |
|---|
| Gränssnitt som stöds | Mini DisplayPort / DisplayPort / VGA / USB-C / Lightning |
|---|
| Mantelmaterial | PVC |
|---|
| Avskärmningsmaterial | Nickel |
|---|
| Pläterad kontakt | Mässing, guld |
|---|
| Egenskaper | Adapterring |
|---|
| Färg | Svart |
|---|
Specifikationer
| Inkluderad kvantitet x Typ | Videokort - Mini DisplayPort (hane) till 19 pin HDMI typ A (hona)
Videokort - 20-stifts DisplayPort (hane) till 19 pin HDMI typ A (hona)
Videokort - 24-stifts USB-C (hane) till 19 pin HDMI typ A (hona)
Videokort - Lightning (hane) till 19-stifts HDMI typ A/24-stifts USB-C (hona)
Videokort - 15 pin HD D-Sub (HD-15) / 4 pin USB Type A (power only) (hane) till 19 pin HDMI typ A (hona) |
|---|
Diverse
| Standarder som följs | RoHS 2 (2011/65/EU) |
|---|
Tillverkarens garanti
| Service och support | Begränsad garanti - livstid |
|---|
