Produktbeskrivning

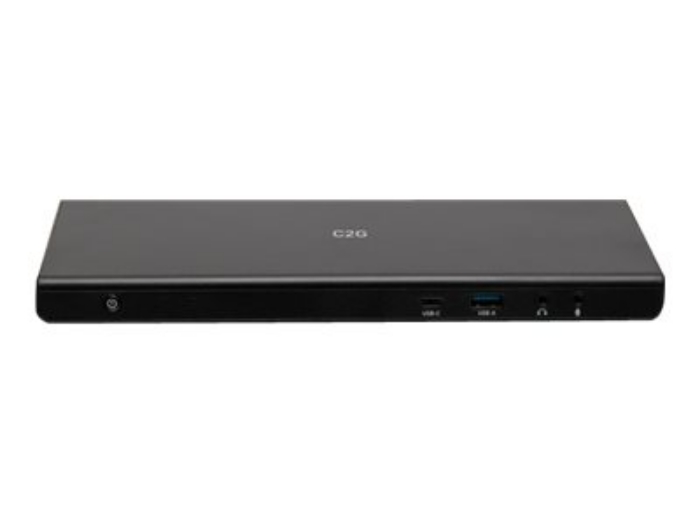

The USB-C 14-in-1 Triple Display Docking Station with HDMI, DisplayPort, Ethernet, USB, 3.5mm Audio and Power Delivery connects to USB-C or Thunderbolt 3 enabled laptops and is perfect for contributing to a desktop solution ― making it ideal for inside reps that have extra connectivity demands while in the office or when working from home.

This USB-C Triple Display Docking Station supports connected devices, such as keyboards, mice, portable hard drives, and other peripherals, all while supporting up to 85W of power delivery to charge and power a laptop. The maximum power capacity depends on how much power the connected adapter can supply. The right amount of power is necessary to keep the laptop battery charged, for all connected devices to function, and for the dock to provide that connectivity. This docking station includes a 135W power supply.

This USB-C Triple Display Docking Station is equipped with three video display outputs, simultaneously splitting content to three display devices while connected to a single source with a USB-C output. This dock is perfect for a triple display desk setup - improving multitasking and productivity. Connect up to three displays, supporting resolutions up to 4K (3840 x 2160) at 30Hz. Connect up to two displays, supporting resolutions up to 4K (4096 x 2160) at 60Hz, or connect to a single DisplayPort display and support resolutions up to 5K (5120 x 2880) at 60Hz. The USB-A ports support SuperSpeed USB 5Gbps data transfers ― allowing a full HD movie to be downloaded in under a minute. The USB-C port supports SuperSpeed USB 10Gbps ― allowing for twice the amount of data in the same amount of time as the USB-A ports. Optimize performance by connecting displays designed for 4K signals and USB-C devices designed for 10Gbps transfer speeds.

Note: This USB-C Triple 4K Display Docking Station is a DisplayLink device that requires the installation of DisplayLink drivers. For most installs, the connected docking station will automatically download the necessary drivers. DisplayLink drivers can also be installed from Window's Update.

DisplayLink Supports:

• Windows 7, 8, and 10

• macOS

• Android

• Chrome OS

• Ubuntu/Linux

Maximum Supported Resolutions

3 HDMI or DisplayPort Ports to 3 Displays: 4K (3840 x 2160) at 30Hz

2 HDMI Ports to 2 Displays: 4K (4096 x 2160) at 60Hz

2 DisplayPort Ports to 2 Displays: 4K (4096 x 2160) at 60Hz

1 HDMI Port to 1 Display: 4K (4096 x 2160) at 60Hz

1 DisplayPort Port to 1 Display: 5K (5120 x 2880) at 60Hz

PORTS

3x 4K HDMI: Connect to three 4K displays via the HDMI ports.

2x 4K DisplayPort: Connect to two 4K DisplayPort displays via the DisplayPort ports.

1x USB-C: Connect storage devices and transfer data up to 10Gbps through the USB-C port.

1x USB-C Power Delivery: Power a laptop or tablet with up to 85W power delivery.

4x USB-A: Connect storage devices and transfer data up to 5Gbps through the USB-A ports.

1x Front USB-A: Connect storage device and transfer data up to 5Gbps through the USB-A port. This port supports BC 1.2 for enhanced mobile device charging.

Gigabit Ethernet: Connect to local network for network and internet access.

Headphone Jack: Connect headphones and speakers for audio output.

Microphone Jack: Connect to a microphone for audio input.



Egenskaper

Colour
Black

Warranty
5 Years

Connector 1 :
(2) USB-C Male, (2) USB-C Female, (5) USB 3.0 A Female

Connector 2:
(2) 3.5mm Female, (1) RJ-45 Female, (3) HDMI Female, (2) DisplayPort Female



Teknisk specifikation

Typ av produkt	Dockningsstation
Bredd	25 cm
Djup	8.235 cm
Höjd	3.439 cm
Vikt	1.36 kg
Färg	Svart

Max Upplösningsinformation	3840 x 2160 - 30 Hz (Tre bildskärmar (3 x HDMI / DisplayPort)) 4096 x 2160 - 60 Hz (Dubbel skärm) 5120 x 2880 - 60 Hz (endast DisplayPort) 4096 x 2160 - 60 Hz (Endast HDMI)

Datalänkprotokoll	Ethernet, Fast Ethernet, Gigabit Ethernet
Standarder som följs	USB 3.1

Gränssnitt	4 x bildskärm / video - HDMI - 19-stifts HDMI typ A 2 x bildskärm / video - DisplayPort - 20-stifts DisplayPort 1 x USB-C - 24 pin USB-C 1 x USB-C med strömförsörjning (85 W) - 24 pin USB-C 5 x USB 3.1 - 4-stifts USB typ A 1 x nätverk - 1000Base-T - RJ-45 1 x hörlurar - minitelefon 3,5 mm 1 x mikrofon - minitelefon 3,5 mm

Egenskaper	Plats för säkerhetslås (kabellås säljs separat)
Typ av säkerhetsplats	Kensington säkerhetsplats
Standarder som följs	RoHS 2 (2011/65/EU)
TAA-kompatibel	Ja

Nätdel	Strömadapter
Nätspänning	AC 120/230 V (50/60 Hz)
Effekt	135 Watt

Service och support	Begränsad garanti - 5 år

Min temperatur vid drift	0 °C
Max temperatur vid drift	35 °C
