Produktbeskrivning

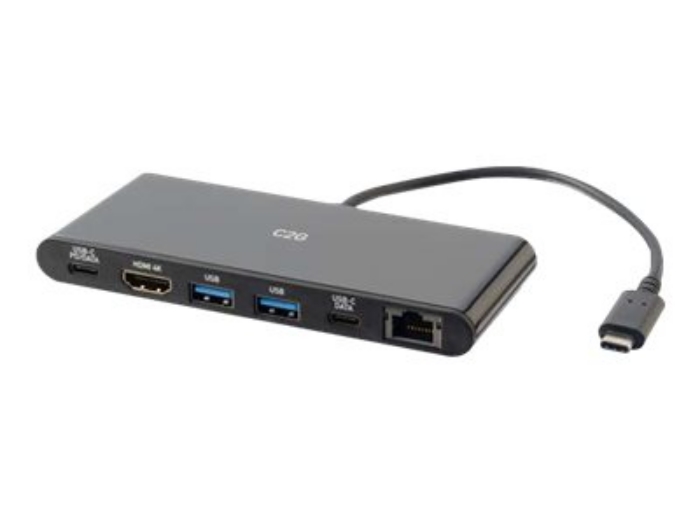

The USB-C Docking Station with 4K HDMI, Ethernet, USB and Power Delivery is an ideal solution for audio/video, wired network connectivity and transferring data whilst in the office or on the road. This docking station connects to a USB-C or Thunderbolt 3 enabled laptop, tablet, or desktop computer and features an Ethernet port and a USB Type-C port with power delivery.

Convenience

Connect to this docking station and display 4K HDMI audio/video content, while delivering power to ensure that a USB-C equipped laptop, tablet or smartphone is fully charged. Also transfer data with ease and speed, using the included USB-C data port or USB 3.0 ports that are backward compatible with USB 2.0. Overall, this docking station offers a lightweight, portable, and simple way to deliver video, transfer data, connect to a network and stay charged up.

Performance

Supporting resolutions up to 4K (3840x2160 at 30Hz), the HDMI connection allows this docking station to mirror or extend a high quality video image to the connected display. Deliver up to 60W of charging power to the connected device. Transfer data up to 10Gbps using the USB-C port or 5Gbps whilst connected to the USB 3.0 ports. The Ethernet port allows for reliable internet connectivity with file transfer speeds up to 1000Mbps.



Egenskaper

Convenience
Connect to this docking station and display 4K HDMI audio/video content, whilst delivering power to ensure that a USB-C equipped laptop, tablet or smartphone is fully charged. Also transfer data with ease and speed, using the included USB-C data port or USB 3.0 ports that are backward compatible with USB 2.0. Overall, this docking station offers a lightweight, portable, and simple way to deliver video, transfer data, connect to a network and stay charged up.

Performance
Supporting resolutions up to 4K (3840x2160 at 30Hz), the HDMI connection allows this docking station to mirror or extend a high quality video image to the connected display. Deliver up to 60W of charging power to the connected device. Transfer data up to 10Gbps using the USB-C port or 5Gbps whilst connected to the USB 3.0 ports. The Ethernet port allows for reliable internet connectivity with file transfer speeds up to 1000Mbps.



Teknisk specifikation

Typ av produkt	Dockningsstation
Bredd	13.3 cm
Djup	5.52 cm
Höjd	1.4 cm
Vikt	100 g
Färg	Svart

Max Upplösningsinformation	3840 x 2160 - 30 Hz

Datalänkprotokoll	Ethernet, Fast Ethernet, Gigabit Ethernet

Gränssnitt	1 x bildskärm / video - HDMI - 19-stifts HDMI typ A 2 x USB 3.1 Gen 1 - 9-stifts USB typ A 1 x USB-C/Thunderbolt 3 med Power Delivery - 24 pin USB-C 1 x USB-C / Thunderbolt 3 - 24 pin USB-C 1 x nätverk - RJ-45

Medföljande kablar	1 x USB-C-kabel - extern - 17 cm
Egenskaper	4K Ultra HD, 60W strömleverans
Standarder som följs	RoHS 2 (2011/65/EU), HDCP 2.2, HDCP 1.4

Service och support	Begränsad garanti - 1 år

Min temperatur vid drift	0 °C
Max temperatur vid drift	35 °C
