Produktbeskrivning

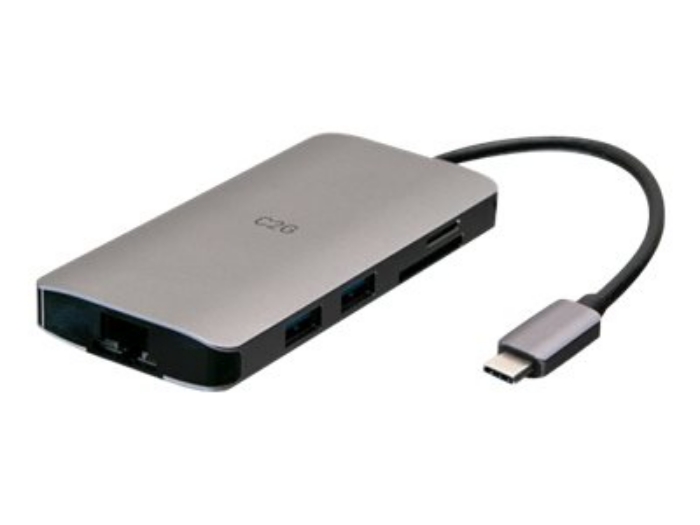

This USB-C 8-in-1 Mini Dock with HDMI, USB-A, Ethernet and USB-C Power Delivery connects to USB-C or Thunderbolt 3 enabled laptops and is perfect for contributing to a desktop solution ― making it ideal for inside reps that need essential connectivity while in the office or when working from home.

This USB-C mini dock supports up to 100W of power delivery to charge and power mobile laptops when using the USB-C power adapter that is included with the laptop. The maximum power capacity depends on how much power the connected adapter can supply. The right amount of power is necessary to keep the laptop battery charged, for all connected devices to function, and for the dock to provide that connectivity.

This mini dock includes an HDMI port with a resolution up to 4K (3840 x 2160) at 30Hz for high definition audio/video. The USB-A and USB-C data ports support SuperSpeed USB 5Gbps data transfers ― allowing up to 32GB of data to be downloaded in under a minute. The Ethernet port allows for reliable internet connectivity with file transfer speeds up to 1000Mbps. Optimize performance by connecting displays designed for 4K 30Hz signals and USB devices designed for 5Gbps transfer speeds.



Egenskaper

Colour
Black

Warranty
5 Years

Connector 1 :
(1) USB-C Male

Connector 2 :
(1) HDMI Female, (2) USB 3.0 A Female, (1) RJ-45 Female, (1) SD Card Reader



Teknisk specifikation

Typ av produkt	Dockningsstation
Bredd	10.5 cm
Djup	5.2 cm
Höjd	1.3 cm
Vikt	127 g
Färg	Svart

Max Upplösningsinformation	3840 x 2160 - 30 Hz

Datalänkprotokoll	Ethernet, Fast Ethernet, Gigabit Ethernet

Gränssnitt	1 x bildskärm / video - HDMI - 19-stifts HDMI typ A 3 x SuperSpeed USB 3.0 - 9-stifts USB typ A 1 x USB-C/Thunderbolt 3 med Power Delivery - 24 pin USB-C 1 x nätverk - 1000Base-T - RJ-45

Inmatningsenhet	SD card reader, mikroSD-kortläsare
Medföljande kablar	1 x USB-C-kabel - integrerad - 12 cm
Egenskaper	4K Ultra HD, 100W strömleverans
Standarder som följs	RoHS 2 (2011/65/EU)

Service och support	Begränsad garanti - 5 år

Min temperatur vid drift	0 °C
Max temperatur vid drift	45 °C
