Produktbeskrivning

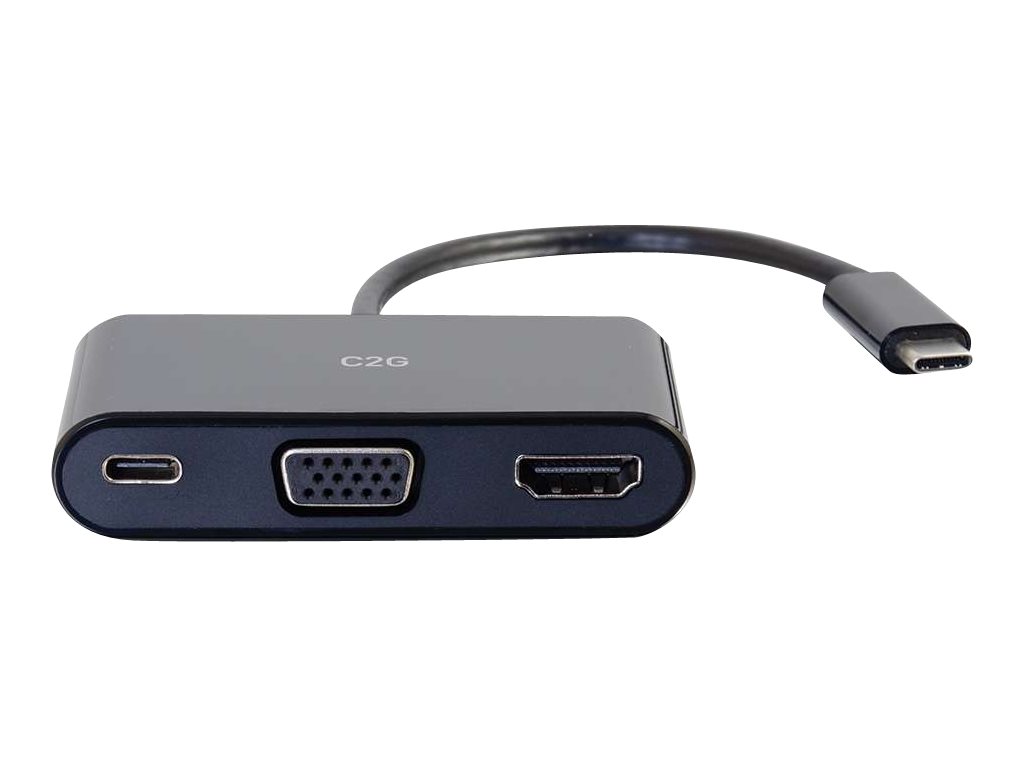

The USB-C to HDMI and VGA Adapter Converter with Power Delivery is an ideal solution for connecting a USB-C or Thunderbolt 3 enabled laptop, tablet, or desktop computer to HDTVs, projectors, or other displays with HDMI and VGA ports and features a USB Type-C port with power delivery. Convenience.
This adapter converter offers a light-weight, portable, and easy way to deliver audio/video and stay charged up while in the office or on the road. Simply connect to a USB-C equipped laptop, tablet or smartphone and display HDMI audio/video or VGA video content plus deliver power to keep those devices fully charged. Performance.
Supporting resolutions up to 4K (3840x2160 at 30Hz) for HDMI and 1920x1080p at 60Hz for VGA, this adapter converter mirrors or extends a high-quality video image to the connected display, while delivering up to 60W of charging power to the connected device. This adapter also allows HDMI and VGA to display at the same time, as well as independently.
Note: When HDMI and VGA ports work simultaneously, the max resolution will be 1920x1080p at 60Hz on each port.
Egenskaper
ConvenienceThis adapter converter offers a light-weight, portable, and easy way to deliver audio/video and stay charged up while in the office or on the road. Simply connect to a USB-C equipped laptop, tablet or smartphone and display HDMI audio/video or VGA video content plus deliver power to keep those devices fully charged.
PerformanceSupporting resolutions up to 4K (3840x2160 at 30Hz) for HDMI and 1920x1080p at 60Hz for VGA, this adapter converter mirrors or extends a high-quality video image to the connected display, while delivering up to 60W of charging power to the connected device. This adapter also allows HDMI and VGA to display at the same time, as well as independently.
Teknisk specifikation
Allmänt
| Typ av produkt | Dockningsstation |
|---|
| Vikt | 100 g |
|---|
| Färg | Svart |
|---|
Video
| Max Upplösningsinformation | 3840 x 2160 - 30 Hz (Endast HDMI)
1920 x 1200 - 60 Hz (Endast HDMI)
1920 x 1080 - 60 Hz (endast VGA) |
|---|
Nätverk
| Standarder som följs | Power Delivery 2.0 |
|---|
Expansion/Anslutning
| Gränssnitt | 1 x audio / video - HDMI - 19-stifts HDMI typ A
1 x bildskärm / video - VGA - 15 pin HD D-Sub (HD-15)
1 x USB-C med strömförsörjning (60 W) - 24-stifts USB-C (enbart ström) |
|---|
Diverse
| Medföljande kablar | 1 x USB-C-kabel - integrerad - 20 cm |
|---|
| Egenskaper | 60W strömleverans |
|---|
| Standarder som följs | FCC, RoHS, REACH, HDCP 1.4 |
|---|
Tillverkarens garanti
| Service och support | Begränsad garanti - 3 år |
|---|
Miljöparametrar
| Min temperatur vid drift | 0 °C |
|---|
| Max temperatur vid drift | 50 °C |
|---|
