Produktbeskrivning

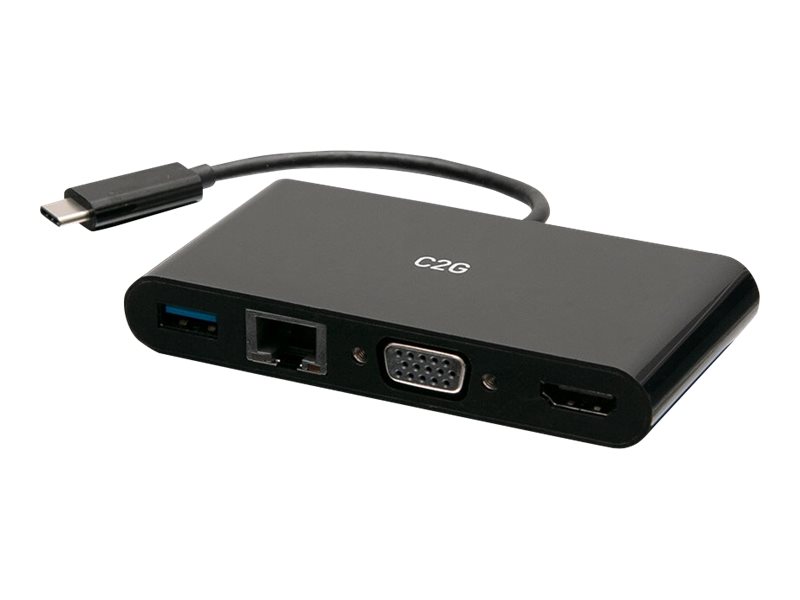

The USB-C to HDMI , VGA, USB-A, and RJ45 Multiport Adapter connects to USB-C or Thunderbolt 3 enabled laptops and is perfect for contributing to a desktop solution ― making it ideal for inside reps that need essential connectivity while in the office or when working from home.

This multiport adapter offers a lightweight, portable, and easy way to deliver audio/video and transfer data. Connect to a USB-C equipped laptop or tablet, display HDMI audio/video or VGA video content, plus transfer data and connect to a network.

Supporting resolutions up to 4K at 30Hz for HDMI and 1920x1200 at 60Hz for VGA, this multiport adapter mirrors or extends a high-quality video image to the connected display. The USB-A data port supports SuperSpeed USB 5Gbps data transfers ― allowing up to 32GB of data to be downloaded in under a minute. The Ethernet port allows for reliable internet connectivity with file transfer speeds up to 1000Mbps.

Note: When both video ports are connected, HDMI and VGA display the same image with resolutions up to 1080p at 60Hz.



Egenskaper

Colour
Black

Warranty
1 Year

Connector 1:
(1) USB-C Male

Connector 2:
(1) HDMI Female, (1) VGA Female, (1) RJ-45 Female, (1) USB 3.0 A Female



Teknisk specifikation

Typ av produkt	Dockningsstation
Bredd	10.3 cm
Djup	5.2 cm
Höjd	1.55 cm
Vikt	31.8 g
Färg	Svart

Max Upplösningsinformation	4K - 30 Hz (Endast HDMI) 1920 x 1200 - 60 Hz (endast VGA)

Datalänkprotokoll	Ethernet, Fast Ethernet, Gigabit Ethernet
Standarder som följs	USB 2.0, USB 3.0, USB 3.1

Gränssnitt	1 x audio / video - HDMI - 19-stifts HDMI typ A 1 x bildskärm / video - VGA - 15 pin HD D-Sub (HD-15) 1 x nätverk - 10Base-T/100Base-TX/1000Base-T - RJ-45 1 x SuperSpeed USB 3.0 - 9-stifts USB typ A

Medföljande kablar	1 x USB-C-kabel - integrerad
Standarder som följs	RoHS2, 2011/65/EU

Service och support	Begränsad garanti - 1 år

Min temperatur vid drift	0 °C
Max temperatur vid drift	45 °C
