Produktbeskrivning

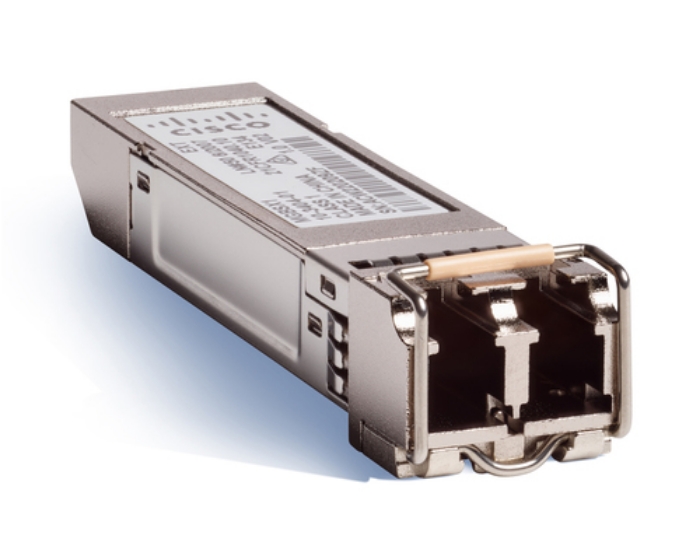

The Cisco 1000BASE-SX SFP Module is an industry-standard Small Form-Factor Pluggable (SFP) Gigabit Interface Converter that links switches and routers to the network. Featuring a robust design for enhanced reliability, this SFP receiver/transmitter module plugs into a Gigabit Ethernet port or slot and is hot-swappable to maximise uptime and simplify serviceability.



Viktiga egenskaper

Cisco 1000BASE-SX SFP Module for Gigabit Ethernet Deployments, Hot Swappable, 5-Year Standard Warranty (GLC-SX-MMD=). SFP transceiver type: Fiber optic, Maximum data transfer rate: 1000 Mbit/s, Interface type: SFP. Power consumption (typical): 1.5 W. Width: 13.4 mm, Depth: 56.5 mm, Height: 8.5 mm. Quantity per pack: 1 pc(s). Package width: 143 mm, Package depth: 158.8 mm, Package height: 44.5 mm



Teknisk specifikation

SFP transceiver type	Fiber optic
Maximum data transfer rate	1000 Mbit/s
Interface type	SFP
Multi-mode fiber (MMF) supported	Yes
Fiber optic connector	LC
Fiber cable diameters supported (core/cladding)	50/125,62.5/125 µm
SFP transceiver standard	SX
Maximum transfer distance	10000 m
Wavelength	850 nm
Networking standards	IEEE 802.3z
Auto MDI/MDI-X	No
Fiber ports quantity	2

Hot-swap	Yes
Country of origin	China

Power consumption (typical)	1.5 W

Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C

Width	13.4 mm
Depth	56.5 mm
Height	8.5 mm
Weight	75 g

Package width	143.002 mm
Package depth	158.75 mm
Package height	44.45 mm
Package weight	90.7 g

Quantity per pack	1 pc(s)
Harmonized System (HS) code	85369010
