Produktbeskrivning

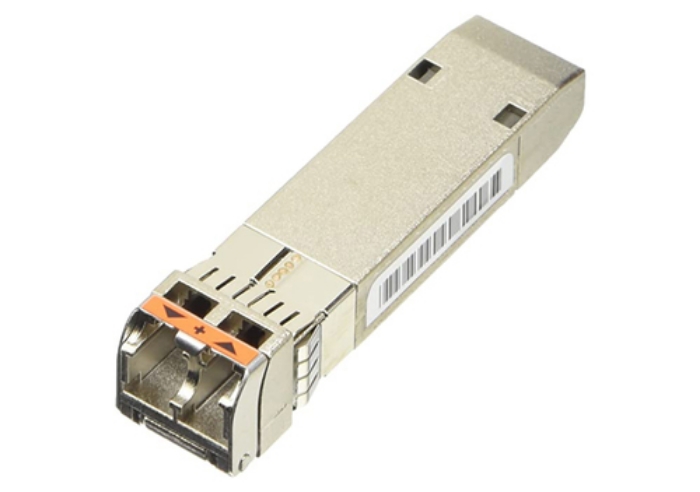

The Cisco 10GBASE-LRM SFP Module delivers 10-Gigabit Ethernet connectivity to customers with older Fibre Distributed Data Interface (FDDI), Optical Multimode 1 (OM1) and Optical Multimode 2 (OM2) Multimode Fibre (MMF) cable installation. It supports link lengths of 220 M on FDDI, OM1 and OM2. This input/output transceiver plugs into an Ethernet SFP+ port of a Cisco switch and offers optical interoperability with 10GBASE XENPAK, 10GBASE X2 and 10GBASE XFP interfaces on the same link.



Viktiga egenskaper

Cisco 10GBASE-LRM SFP Module for 10-Gigabit Ethernet Deployments, Hot Swappable, 5-Year Standard Warranty (SFP-10G-LRM=). Maximum transfer distance: 300 m, Wavelength: 1310 nm. Connectivity technology: Wired. Power consumption (typical): 1 W. Width: 13.4 mm, Depth: 56.5 mm, Height: 8.5 mm. Package width: 143 mm, Package depth: 158.8 mm, Package height: 44.5 mm



Teknisk specifikation

Connectivity technology	Wired

Maximum transfer distance	300 m
Wavelength	1310 nm

Country of origin	China

Power consumption (typical)	1 W

Hot-swap	Yes

Width	13.4 mm
Depth	56.5 mm
Height	8.5 mm
Weight	75 g

Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C

Package width	143.002 mm
Package depth	158.75 mm
Package height	44.45 mm
Package weight	90.7 g

Harmonized System (HS) code	85176990
Quantity per pack	1 pc(s)

Fiber type	MMF/SMF
