Produktbeskrivning

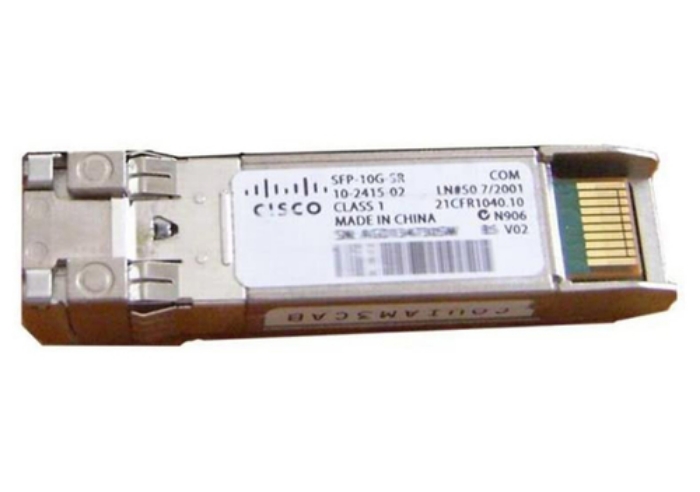

The Cisco 10GBASE-SR-S SFP Module delivers a wide variety of 10-Gigabit Ethernet connectivity options for data centre, enterprise server room and service provider transport applications. This hot-swappable input/output transceiver plugs into an Ethernet SFP+ port of a Cisco switch and offers optical interoperability with 10GBASE XENPAK, 10GBASE X2 and 10GBASE XFP interfaces on the same link.



Viktiga egenskaper

Cisco 10GBASE-SR S-Class SFP Module for 10 Gigabit Ethernet Deployments, Hot Swappable, 5-Year Standard Warranty (SFP-10G-SR-S=). SFP transceiver type: Fiber optic, Maximum data transfer rate: 10000 Mbit/s, Interface type: SFP+. Certification: MSA. Width: 13.4 mm, Depth: 56.5 mm, Height: 8.5 mm. Quantity per pack: 1 pc(s). Package width: 143 mm, Package depth: 158.8 mm, Package height: 44.5 mm



Teknisk specifikation

SFP transceiver type	Fiber optic
Maximum data transfer rate	10000 Mbit/s
Interface type	SFP+
Multi-mode fiber (MMF) supported	Yes
Fiber optic connector	LC,PC
SFP transceiver standard	SR
Wavelength	850 nm
Cabling technology	10GBASE-SR
Networking standards	IEEE 802.3,IEEE 802.3ab,IEEE 802.3ae,IEEE 802.3u
Duplex system	Full
Auto MDI/MDI-X	Yes

Hot-Plug support	Yes
Country of origin	China
Certification	MSA

Operating temperature (T-T)	-40 - 85 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	0 - 95 %
Storage relative humidity (H-H)	0 - 95 %

Width	13.4 mm
Depth	56.5 mm
Height	8.5 mm

Package width	143.002 mm
Package depth	158.75 mm
Package height	44.45 mm
Package weight	90.7 g

Quantity per pack	1 pc(s)
Harmonized System (HS) code	85369010
