Produktbeskrivning

One end of the cable has a 68-pin connector that plugs into the T1/E1 interface module and the other end of the cable with a 68-pin connector is connected to a RJ48, AMP64 or a DIN patch panel. Use the thumbscrews on either side of the connector to secure the cable to the interface. For information about the pinout of the cable connecting the T1/E1 interface to the rear of the patch panel, see T1/E1 ports, see the T1/E1 Port Pinout.

Patch Panel Cables

The patch panel cable connects the interface modules with the patch panel. Each cable connects one VHDCI connector on the interface module to the connector on the patch panel. A set of three cables is required to connect one interface module to one 48-port patch panel. The following table shows details of the patch panel cables:



Viktiga egenskaper

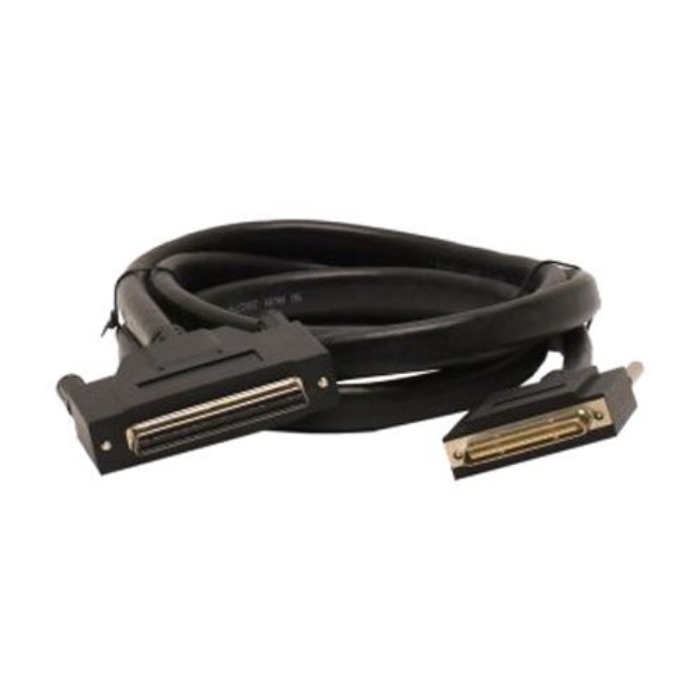

Cisco CABLE-16TDM-C-L3=. Mounting: Rack mounting, Cable connection: 68-pin T1/E1 - 68-pin RJ48, AMP64, DIN, Product colour: Black. Width: 22000 mm



Teknisk specifikation

Ports quantity	16
Mounting	Rack mounting
Cable connection	68-pin T1/E1 - 68-pin RJ48, AMP64, DIN
Product colour	Black

Width	22000 mm
