Produktbeskrivning

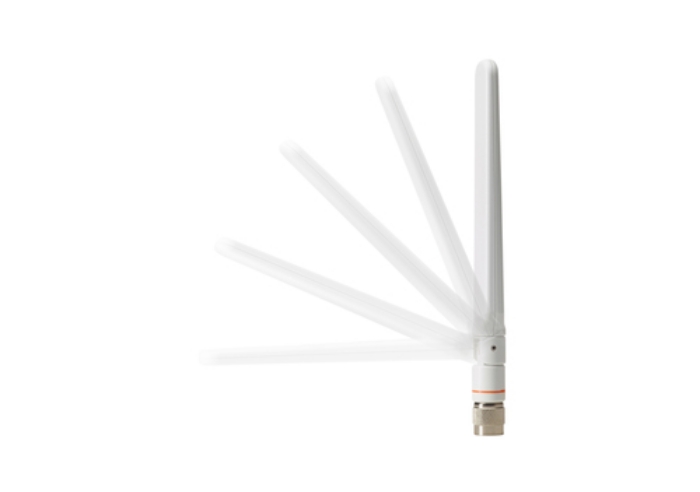

The Cisco Aironet AIR-ANT2524DW-R= Dual-Band Omnidirectional Wi-Fi Antenna is designed with improved coverage and performance in mind. This FCC-approved omnidirectional antenna provides a 360-degree radiation pattern and is intended for deployment when coverage in all directions from the antenna is required.



Viktiga egenskaper

Cisco Aironet Dual-Band Omnidirectional Wi-Fi Antenna, 2 dBi (2.4 GHz)/4 dBi (5 GHz), White Dipole (1 Port), RP-TNC Connector, 1-Year Limited Hardware Warranty (AIR-ANT2524DW-R=). Antenna gain level (max): 4 dBi, Frequency band: 2.4/5 GHz, Antenna gain (2.4 GHz): 2 dBi. Antenna type: Omni-directional antenna, Antenna connector type: RP-TNC, Connector gender: Male. Width: 21 mm, Depth: 168.5 mm, Weight: 38.5 g. Package width: 152.4 mm, Package depth: 184.2 mm, Package height: 49.3 mm. Quantity per pack: 1 pc(s)



Teknisk specifikation

Antenna gain level (max)	4 dBi
Frequency band	2.4/5 GHz
Antenna gain (2.4 GHz)	2 dBi
Antenna gain (5 GHz)	4 dBi
Impedance	50 Ω
Horizontal beam width (2.4 GHz)	63 °
Horizontal beam width (5 GHz)	39 °

Antenna type	Omni-directional antenna
Connector gender	Male
Antenna connector type	RP-TNC
Voltage Standing Wave Ratio (VSWR)	2:1
Purpose	Indoor
Country of origin	China
Product colour	Grey

Operating temperature (T-T)	-20 - 60 °C
Storage temperature (T-T)	-40 - 85 °C

Width	21 mm
Depth	168.5 mm
Weight	38.5 g
Package width	152.4 mm
Package depth	184.15 mm
Package height	49.276 mm
Package weight	136.05 g

Quantity per pack	1 pc(s)

Harmonized System (HS) code	85177100

Frequency range	2.4 - 2.5GHz, 5.15 - 5.85GHz
