Produktbeskrivning

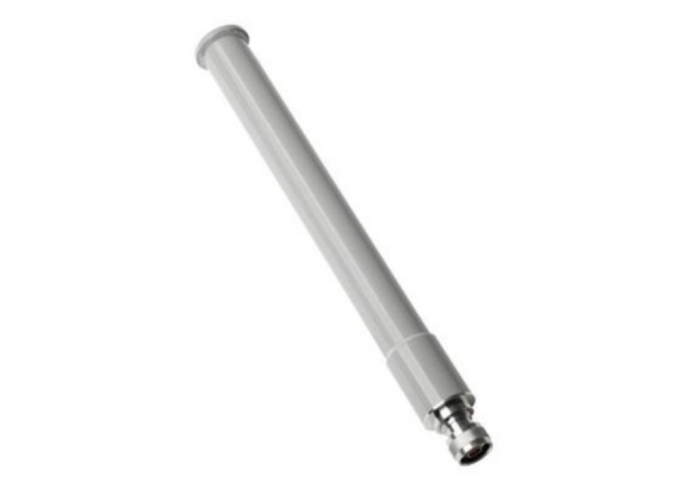

The Cisco Aironet AIR-ANT2547V-N= Dual-Band Omnidirectional Wi-Fi Antenna is designed with improved coverage and performance in mind. This FCC-approved omnidirectional antenna provides a 360-degree radiation pattern and is intended for deployment when coverage in all directions from the antenna is required.



Viktiga egenskaper

Cisco Aironet Dual-Band Omnidirectional Wi-Fi Antenna, 4 dBi (2.4 GHz)/7 dBi (5 GHz), N-Type Male Connector, Direct Mount, 1-Year Limited Hardware Warranty (AIR-ANT2547V-N=). Antenna gain level (max): 7 dBi, Frequency band: 2.4/5 GHz, Antenna gain (2.4 GHz): 4 dBi. Antenna type: Omni-directional antenna, Antenna connector type: N-type, Connector gender: Male. Width: 3.17 mm, Depth: 3.17 mm, Height: 282 mm. Package width: 152.4 mm, Package depth: 482.6 mm, Package height: 50.8 mm. Quantity per pack: 1 pc(s)



Teknisk specifikation

Antenna gain level (max)	7 dBi
Frequency band	2.4/5 GHz
Antenna gain (2.4 GHz)	4 dBi
Antenna gain (5 GHz)	7 dBi
Impedance	50 Ω
Horizontal beam width (2.4 GHz)	30 °
Horizontal beam width (5 GHz)	14 °

Antenna type	Omni-directional antenna
Connector gender	Male
Antenna connector type	N-type
Voltage Standing Wave Ratio (VSWR)	2:1
Purpose	Outdoor
Country of origin	China
Product colour	Silver

Operating temperature (T-T)	-40 - 85 °C

Width	3.17 mm
Depth	3.17 mm
Height	282 mm
Diameter	3.17 mm
Weight	170 g
Package width	152.4 mm
Package depth	482.6 mm
Package height	50.8 mm
Package weight	317.46 g

Quantity per pack	1 pc(s)

Harmonized System (HS) code	85177100

Dimensions (WxDxH)	3.17 x 3.17 x 282 mm
Frequency range	2.4 - 2.483GHz, 5.15 - 5.875GHz
