Produktbeskrivning

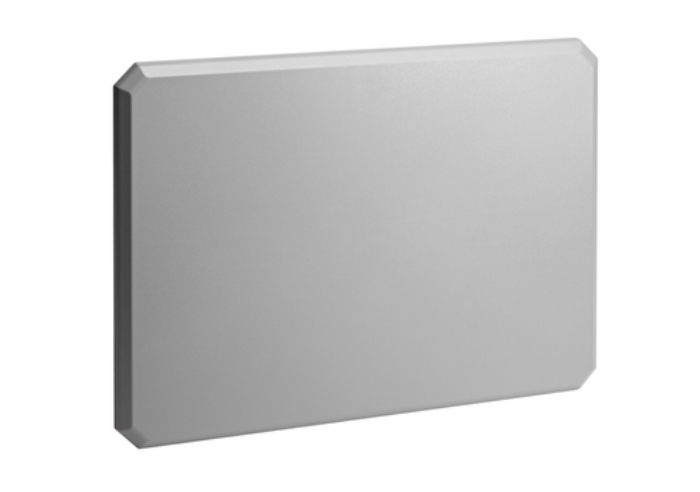

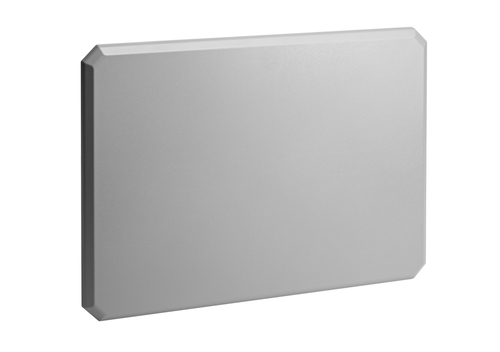

The Cisco Aironet AIR-ANT2513P4M-N= Dual-Band Directional Wi-Fi Patch Antenna is designed with improved coverage and performance in mind. This FCC-approved patch antenna directs the energy it receives from the transmitter to provide more energy in one direction and less energy in all other directions.



Viktiga egenskaper

Cisco Aironet Dual-Band Directional Wi-Fi Patch Antenna, 13 dBi (2.4 GHz)/13 dBi (5 GHz), 4 Ports, 4 N-Type Female Connectors, 1-Year Limited Hardware Warranty (AIR-ANT2513P4M-N=). Antenna gain level (max): 13 dBi, Frequency band: 2.4 - 2.5 / 5.15 - 5.9 GHz, Impedance: 50 Ω. Antenna connector type: N-type, Connector gender: Female, Polarization: Dual polarization. Width: 507 mm, Height: 21.1 mm, Weight: 2.3 kg. Package width: 402.1 mm, Package depth: 660.9 mm, Package height: 104.9 mm. Quantity per pack: 1 pc(s)



Teknisk specifikation

Antenna gain level (max)	13 dBi
Frequency band	2.4 - 2.5 / 5.15 - 5.9 GHz
Impedance	50 Ω

Antenna connector type	N-type
Connector gender	Female
Polarization	Dual polarization
Country of origin	China

Operating temperature (T-T)	-30 - 70 °C
Storage temperature (T-T)	-40 - 85 °C

Width	507 mm
Height	21.1 mm
Weight	2300 g
Package width	402.082 mm
Package depth	660.908 mm
Package height	104.902 mm
Package weight	4308.39 g

Quantity per pack	1 pc(s)

Harmonized System (HS) code	85177100
