Produktbeskrivning

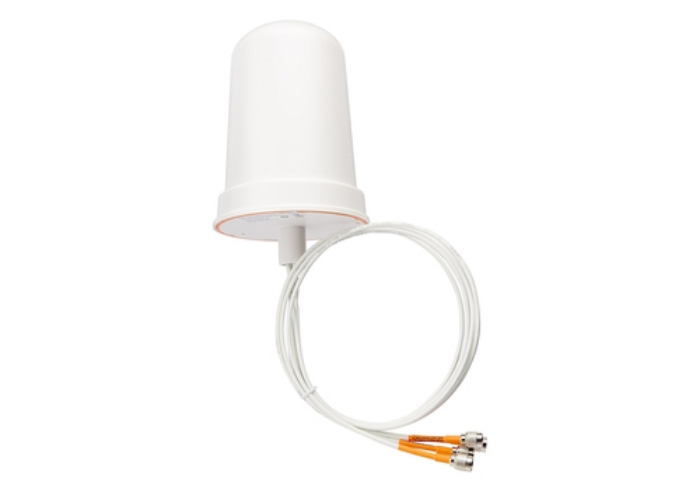

The Cisco Aironet AIR-ANT2544V4M-RS= Dual-Band Omnidirectional Wi-Fi Antenna is designed with improved performance in mind. It provides a 360-degree radiation pattern and is intended for deployment when coverage in all directions is required. This FCC-approved omnidirectional antenna includes circuitry to enable self-identification of the antenna by the Cisco Catalyst 9100 Access Points.



Viktiga egenskaper

Cisco Aironet Dual-Band Omnidirectional Wi-Fi Antenna, 4 dBi (2.4 GHz)/4 dBi (5 GHz), 4 Ports, Wall/Mast Mount, 1-Year Limited Hardware Warranty (AIR-ANT2544V4M-RS=). Antenna gain level (max): 4 dBi, Frequency band: 2.4/5 GHz, Networking standards: IEEE 802.11n. Antenna type: Omni-directional antenna, Antenna connector type: RP-TNC, Connector gender: Male. Package width: 215.9 mm, Package depth: 387.4 mm, Package height: 215.9 mm. Quantity per pack: 1 pc(s). Country of origin: Malaysia



Teknisk specifikation

Antenna gain level (max)	4 dBi
Frequency band	2.4/5 GHz
Networking standards	IEEE 802.11n
Antenna gain (2.4 GHz)	4 dBi
Antenna gain (5 GHz)	4 dBi
Impedance	50 Ω

Antenna type	Omni-directional antenna
Antenna connector type	RP-TNC
Connector gender	Male
Polarization	Vertical polarization
Voltage Standing Wave Ratio (VSWR)	< 2:1
Mounting	Wall/Pole
Purpose	Indoor & outdoor
Cable length	2.4 m
Country of origin	Malaysia
Compatible products	Cisco Aironet 1600e, 2600e, 3600e
Product colour	White

Operating temperature (T-T)	-30 - 70 °C

Package width	215.9 mm
Package depth	387.35 mm
Package height	215.9 mm
Package weight	1414.97 g

Quantity per pack	1 pc(s)
Mounting kit	Yes
Manual	Yes
Quick installation guide	Yes

Harmonized System (HS) code	85177100
