Produktbeskrivning

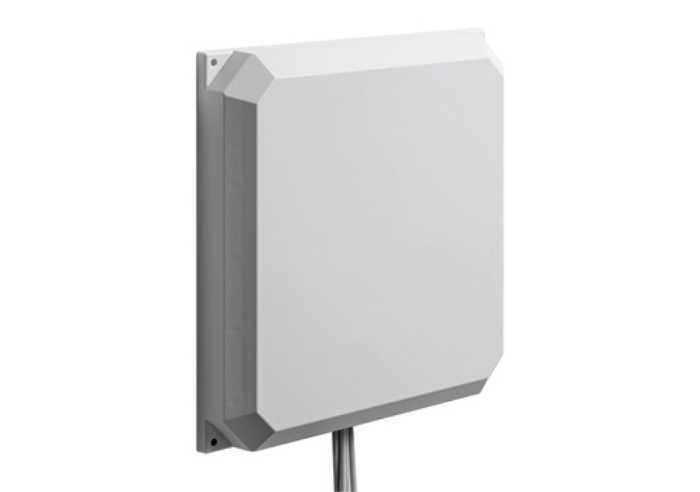

The Cisco Aironet AIR-ANT2566D4M-RS= Dual-Band Directional Wi-Fi Patch Antenna is designed with improved performance in mind. It directs the energy it receives from the transmitter to provide more energy in one direction and less in other directions. This FCC-approved patch antenna includes circuitry to enable self-identification of the antenna by the Cisco Catalyst 9100 Access Points.



Viktiga egenskaper

Cisco Aironet Dual-Band Directional Wi-Fi Patch Antenna, 6 dBi (2.4 GHz)/6 dBi (5 GHz), MIMO (4 Ports), Wall Mount, 4 RP-TNC Male Connectors, 1-Year Limited Hardware Warranty (AIR-ANT2566D4M-RS=). Antenna gain level (max): 6 dBi, Frequency band: 2.4/5 GHz, Gain: 6 dBi. Antenna type: Directional antenna, Antenna connector type: RP-TNC, International Protection (IP) code: IP67. Width: 254 mm, Depth: 254 mm, Height: 41 mm. Package width: 260.1 mm, Package depth: 260.1 mm, Package height: 215.9 mm. Quantity per pack: 1 pc(s)



Teknisk specifikation

Antenna gain level (max)	6 dBi
Frequency band	2.4/5 GHz
Gain	6 dBi
Antenna gain (5 GHz)	6 dBi
Antenna gain (2.4 GHz)	6 dBi
Impedance	50 Ω

Antenna type	Directional antenna
Antenna connector type	RP-TNC
International Protection (IP) code	IP67
Country of origin	Malaysia

Operating temperature (T-T)	-40 - 70 °C
Storage temperature (T-T)	-40 - 85 °C

Width	254 mm
Depth	254 mm
Height	41 mm
Weight	1130 g
Package width	260.096 mm
Package depth	260.096 mm
Package height	215.9 mm
Package weight	1251.7 g

Quantity per pack	1 pc(s)
