Produktbeskrivning

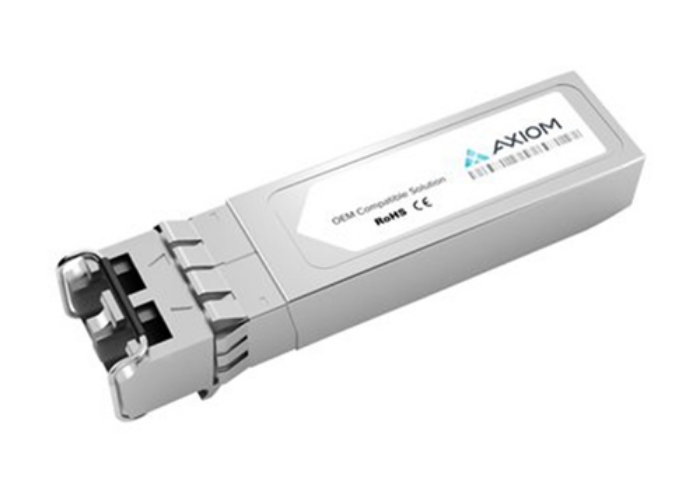

The Cisco 25GBASE-SR-S SFP Module delivers a variety of high-density and low-power 25-Gigabit Ethernet connectivity options for data centre and high-performance computing network applications. Based on an SFP28 form factor, this SFP module is interoperable with other IEEE-compliant 25G interfaces where applicable and is high-speed connectivity compliant to IEEE 802.3by and IEEE 802.3cc.



Viktiga egenskaper

Cisco 25GBASE-SR SFP Module for 25-Gigabit Ethernet Deployments, SFP28 Form Factor, 5-Year Standard Warranty (SFP-25G-SR-S=). SFP transceiver type: Fiber optic, Maximum data transfer rate: 25000 Mbit/s, Interface type: SFP28. Power consumption (typical): 1.2 W. Quantity per pack: 1 pc(s). Package width: 143 mm, Package depth: 158.8 mm, Package height: 44.5 mm. Country of origin: China



Teknisk specifikation

SFP transceiver type	Fiber optic
Maximum data transfer rate	25000 Mbit/s
Interface type	SFP28
Multi-mode fiber (MMF) supported	Yes
Maximum transfer distance	100 m
Wavelength	850 nm
Tx power (min)	-8.4 dBmW
Tx power (max)	2.4 dBmW
Rx power (min)	-10.3 dBmW
Rx power (max)	2.4 dBmW

Country of origin	China

Power consumption (typical)	1.2 W

Package width	143.002 mm
Package depth	158.75 mm
Package height	44.45 mm
Package weight	90.7 g

Quantity per pack	1 pc(s)
