Produktbeskrivning

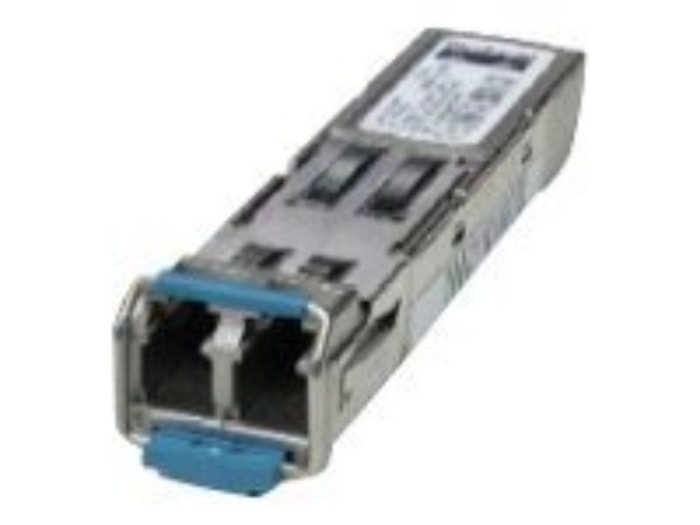

The Cisco 10GBASE-LRM SFP Module delivers 10-Gigabit Ethernet connectivity to customers with older Fibre Distributed Data Interface (FDDI), Optical Multimode 1 (OM1) and Optical Multimode 2 (OM2) Multimode Fibre (MMF) cable installation. It supports link lengths of 220 M on FDDI, OM1 and OM2. This input/output transceiver plugs into an Ethernet SFP+ port of a Cisco switch and offers optical interoperability with 10GBASE XENPAK, 10GBASE X2 and 10GBASE XFP interfaces on the same link.



Egenskaper

LINK LENGTH
Supports link lengths of 220 m on standard-grade FDDI multimode fibre; transmitter should be coupled through a mode conditioning patch cable for OM1 and OM2 (not required for applications over OM3 or OM4)

COMPACT
Industry-smallest 10G form factor for greatest density per chassis

HOT SWAPPABLE
Plugs into an Ethernet SFP+ port of a Cisco switch with no need to shut down if installing or replacing

VERSATILITY
SFP receiver/transceiver module supports 'pay-as-you-populate' model for investment protection and ease of technology migration

PEACE OF MIND
5-year standard replacement warranty



Innehåll i förpackning

● SFP Module



Teknisk specifikation

Typ av enhet	SFP+ sändar/mottagarmodul
Formfaktor	Insticksmodul

Anslutningsteknik	Kabelansluten
Typ av kablage	10GBase-LRM
Datalänkprotokoll	10GbE
Dataöverföringshastighet	10 Gbps
Optisk våglängd	1310 nm
Max överföringsavstånd	300 m
Standarder som följs	IEEE 802.3ae

Gränssnitt	1 x Ethernet 10GBase-LRM - LC/PC x 2
Kompatibla kortplatser	1 x SFP+

Standarder som följs	Laser Class 1, IEC 60825-1

Bredd	1.3 cm
Djup	5.7 cm
Höjd	0.9 cm
Vikt	75 g

Service och support	Begränsad garanti - 90 dagar

Min temperatur vid drift	0 °C
Max temperatur vid drift	70 °C

Designat för	Cisco Nexus 93180YC-FX, 9372PX-E
