Produktbeskrivning
The Cisco 40GBASE QSFP+ (Quad Small Form-Factor Pluggable Plus) modules offer customers a wide variety of high-density 40 Gigabit Ethernet connectivity options for data center, high-performance computing networks, enterprise core and distribution layers, and service provider transport applications.

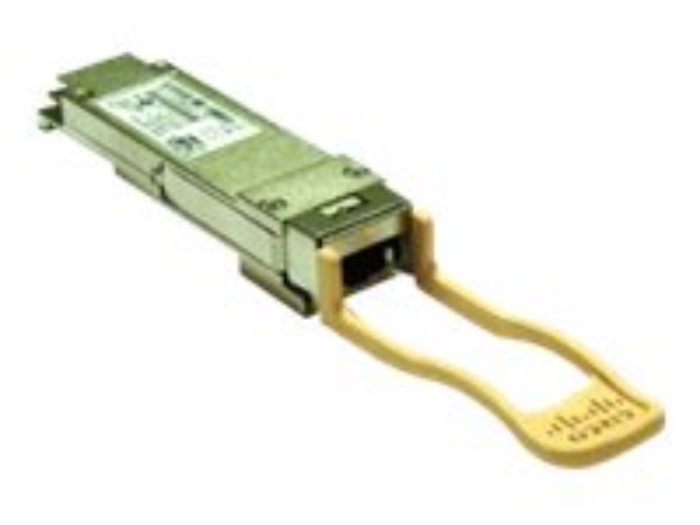

The Cisco 40GBASE-SR4 QSFP+ Module supports link lengths of 100 m and 150 m respectively on laser-optimized OM3 and OM4 multimode fiber cables. It primarily enables high-bandwidth 40G optical links over ribbon fiber cables terminated with multi-fiber connectors, and could also be used along with ribbon to duplex fiber breakout cables for connectivity to four 10GBASE-SR optical interfaces.
Egenskaper
● Support for 40GBASE Ethernet
● Hot-swappable input/output device that plugs into a 40-Gigabit Ethernet QSFP+ Cisco switch port
● Flexibility of interface choice
● Interoperable with other IEEE-compliant 40GBASE interfaces available in various form factors
● Support for "pay-as-you-populate" model
● Support for the Cisco quality identification (ID) feature which enables a Cisco switch to identify whether the module is certified and tested by Cisco
Teknisk specifikation
Allmänt
Typ av enhet | QSFP+ sändar/mottagarmodul |
Formfaktor | Insticksmodul |
Färg | Beige |
Nätverksfunktioner
Anslutningsteknik | Kabelansluten |
Typ av kablage | 40GBASE-SR4 |
Datalänkprotokoll | 40GbE |
Dataöverföringshastighet | 40 Gbps |
Optisk våglängd | 850 nm |
Max överföringsavstånd | 150 m |
Standarder som följs | IEEE 802.3ba |
Expansion/Anslutning
Gränssnitt | 1 x 40Gb Ethernet - MPO multi-mode |
Kompatibla kortplatser | 1 x QSFP+ |
Diverse
Standarder som följs | Laser Class 1, ELV, RoHS, IEC 60825-1, GR-326-CORE, MSA, GR-20-CORE, GR-1435-CORE |
Mått och vikt
Bredd | 1.84 cm |
Djup | 7.24 cm |
Höjd | 1.35 cm |
Vikt | 100 g |
Tillverkarens garanti
Service och support | Begränsad garanti - 90 dagar |
Miljöparametrar
Min temperatur vid drift | 0 °C |
Max temperatur vid drift | 70 °C |
Kompatibilitetsinformation
Designat för | Cisco 1-port 40-Gigabit Ethernet Modular Port Adapter, 2-port 40-Gigabit Ethernet Modular Port Adapter Cisco Nexus 2248PQ 10GE Fabric Extender, 3016Q, 3064-E, 3064PQ, 3064PQ Front-to-Back Airflow LAN Enterprise License Bundle, 3064-X, 6001, 93108TC-EX, 93180YC-FX, 9336C-FX2, 9372PX-E |
