Produktbeskrivning

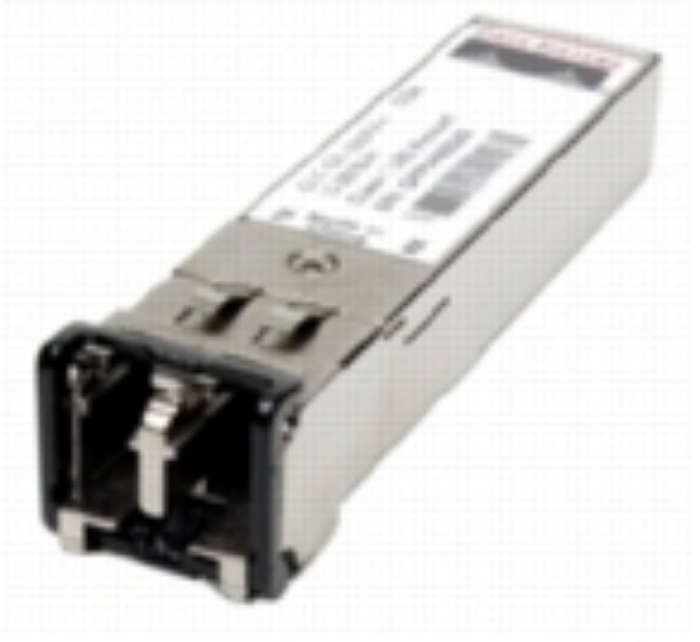

The Cisco® 100BASE-X Small Form-factor Pluggable (SFP) is a hot-swappable input/output device that plugs into a Fast Ethernet port or slot, linking the port with the network.
Main features include the following:
-Hot-swappable when deployed, the switch or router does not have to reboot.
-Supports the "pay-as-you-populate" model.
-Interchangeable with other 100BASE-X SFPs on the same line card.
-Supports the Cisco quality ID feature that enables the switch or router to identify whether or not the SFP is a Cisco qualified SFP.
-Optically interoperable with respective 100BASE-X Ethernet interfaces on the same link.
Cisco 100BASE-LX10 SFPThe Cisco 100BASE-LX10 SFP (part numbers GLC-FE-100LX and GLC-FE-100LX-RGD) operates on ordinary single-mode fiber-optic (SMF) link spans up to 10 kilometers long.
Viktiga egenskaper
Cisco GLC-FE-100LX48=. Maximum data transfer rate: 100 Mbit/s. Maximum transfer distance: 10000 m, Wavelength: 1310 nm. Connectivity technology: Wired. Transmit power range: -8 - -15 dBmW, Dimensions (WxDxH): 13.4 x 56.5 x 8.5 mm, Interface: SFP
Teknisk specifikation
Network
| Maximum data transfer rate | 100 Mbit/s |
|---|
Ports & interfaces
| Connectivity technology | Wired |
|---|
Performance
| Maximum transfer distance | 10000 m |
|---|
| Wavelength | 1310 nm |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 70 °C |
|---|
| Storage temperature (T-T) | -40 - 85 °C |
|---|
Other features
| Transmit power range | -8 - -15 dBmW |
|---|
| Interface | SFP |
|---|
| Dimensions (WxDxH) | 13.4 x 56.5 x 8.5 mm |
|---|
| Fiber type | SMF |
|---|
