Produktbeskrivning

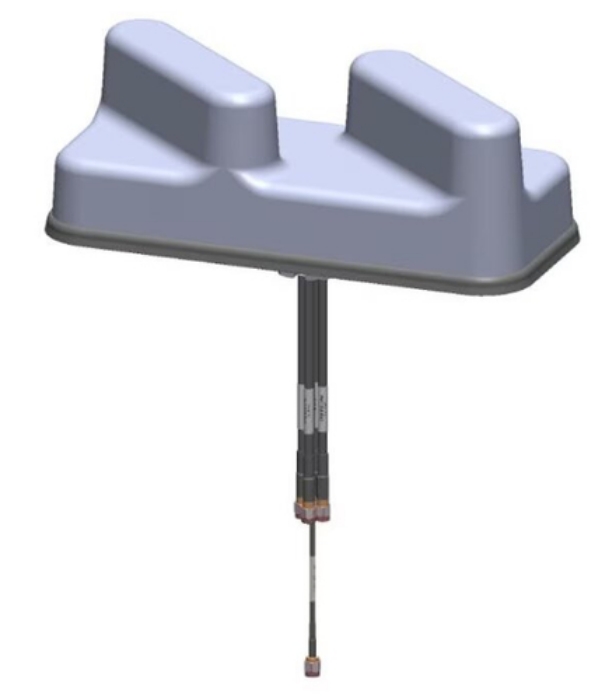

This section describes the technical specifications and installation instructions for the Cisco Multi-element, 5-in-1, 5G (FR1)/LTE/GNSS (ANT-5-5G4G1-O), hereafter referred to as the antenna. The antenna features:

- Antenna Type - Multi-band elements on ground-plane
- IP67
- RoHS Compliant
- 4x Cellular (4G/5G)
- 1x GNSS



Viktiga egenskaper

Cisco ANT-5-5G4G1-O. Impedance: 50 Ω. Antenna type: Omni-directional antenna, Antenna connector type: SMA, Connector gender: Male. Width: 123.4 mm, Depth: 275.3 mm, Height: 92.3 mm. Quantity per pack: 1 pc(s)



Teknisk specifikation

Impedance	50 Ω

Antenna type	Omni-directional antenna
Antenna connector type	SMA
Connector gender	Male
Voltage Standing Wave Ratio (VSWR)	2.5:1
Purpose	Indoor
Housing material	Acrylonitrile Butadiene Styrene (ABS),Polycarbonate (PC)

Operating temperature (T-T)	-40 - 85 °C

Width	123.4 mm
Depth	275.3 mm
Height	92.3 mm
Weight	859.03 g

Quantity per pack	1 pc(s)
