Produktbeskrivning

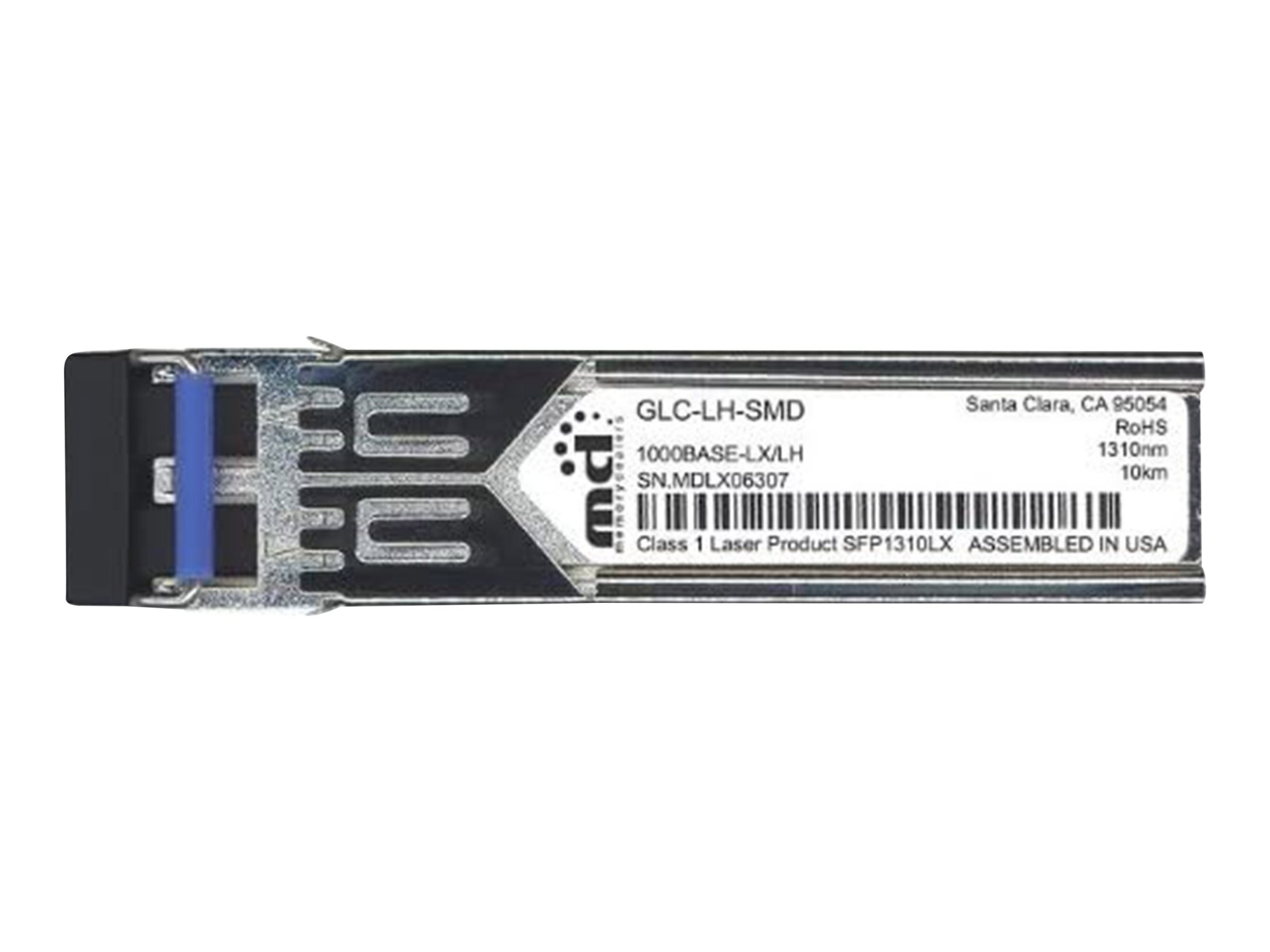

The Cisco 1000BASE-LX/LH-SMD= SFP Module is an industry-standard Small Form-Factor Pluggable (SFP) Gigabit Interface Converter that links switches and routers to the network. Featuring a robust design for enhanced reliability, this SFP receiver/transmitter module plugs into a Gigabit Ethernet port or slot and is hot-swappable to maximise uptime and simplify serviceability.



Egenskaper

COMPATIBILITY
1000BASE-LX/LH SFP is designed for long-reach single-mode fibres but works over multi-mode fibre as well.

OPERATION
Operates on standard single-mode fibre-optic link spans of up to 10 km and up to 550 metres on multi-mode fibre (transmitter should be coupled through a mode conditioning patch cable when used over multi-mode fibre type)

HOT SWAPPABLE
Plugs into an Ethernet SFP port or slot with no need to shut down if installing or replacing

VERSATILITY
SFP receiver/transceiver module supports 'pay-as-you-populate' model for flexible media and interface choice on a port-by-port basis

PEACE OF MIND
5-year standard replacement warranty



Innehåll i förpackning

● SFP Module



Teknisk specifikation

Typ av enhet	SFP-sändar/mottagarmodul (mini-GBIC)
Formfaktor	Insticksmodul

Anslutningsteknik	Kabelansluten
Typ av kablage	1000Base-LX, 1000Base-LH
Datalänkprotokoll	1GbE
Dataöverföringshastighet	1 Gbps
Optisk våglängd	1310 nm
Max överföringsavstånd	10 km
Funktioner	Stöd för digital optisk övervakning (DOM)
Standarder som följs	IEEE 802.3z

Gränssnitt	1 x Ethernet 1000Base-LX/1000Base-LH - LC/PC single-mode x 2
Kompatibla kortplatser	1 x SFP (mini-GBIC)

Bredd	1.34 cm
Djup	5.65 cm
Höjd	0.85 cm
Vikt	75 g

Service och support	Begränsad garanti - 1 år

Min temperatur vid drift	-5 °C
Max temperatur vid drift	85 °C

Designat för

Cisco 3825, 3825 Branch Office in a Box Bundle, 3825 Secure WAN Optimization Bundle, 3825 SRST Voice Upgrades for HSEC Bundle, 3825 Unified Communications Bundle, 3825 Unified Communications Bundle with Advanced Security, 3825 WAN Application Acceleration Bundle, 3825 WAN Optimization Bundle, 3825C, 3845, 3845 Branch Office in a Box Bundle, 3845 Unified Communications Bundle with Advanced Security, 3845 WAN Application Acceleration Bundle, 3845 WAN Optimization Bundle, 3845C, 3925, 3925 Application Experience, 3925 Generation 2 STM-1 Bundle, 3925E, 3925E Application Experience, 3925E Generation 2 STM-1 Bundle, 3945, 3945 Application Experience, 3945 Generation 2 STM-1 Bundle, 3945E, 3945E Generation 2 STM-1 Bundle, 4451-X, 4451-X Application Experience, 4451-X Integrated Services Router, 4451-X Integrated Services Router Security Bundle, 4451-X Integrated Services Router Voice and Video Bundle, 4451-X Integrated Services Router Voice Security Bundle, 892 Cisco 250 Series SG250X-48P Cisco Catalyst 2960-Plus 24LC-L, 2960-Plus 24LC-S, 2960-Plus 24PC-L, 2960-Plus 24PC-S, 2960-Plus 24TC-L, 2960-Plus 24TC-S, 2960-Plus 48PST-L, 2960-Plus 48PST-S, 2960-Plus 48TC-L, 2960-Plus 48TC-S, 2960X-24PSQ-L, 2960XR-24PD-I, 2960XR-24TD-I, 2960XR-48FPS-I, 2960XR-48LPD-I, 2960XR-48TS-I, 3650-24PD-E, 3650-24PD-L, 3650-24PD-S, 3650-24PS-E, 3650-24PS-L, 3650-24PS-S, 3650-24TD-E, 3650-24TD-L, 3650-24TD-S, 3650-24TS-E, 3650-24TS-L, 3650-24TS-S, 3650-48FD-E, 3650-48FD-L, 3650-48FD-S, 3650-48FQ-E, 3650-48FQ-L, 3650-48FQ-S, 3650-48FS-E, 3650-48FS-L, 3650-48FS-S, 3650-48PD-E, 3650-48PD-L, 3650-48PD-S, 3650-48PQ-E, 3650-48PQ-L, 3650-48PQ-S, 3650-48PS-E, 3650-48PS-L, 3650-48PS-S, 3650-48TD-E, 3650-48TD-L, 3650-48TD-S, 3650-48TQ-E, 3650-48TQ-L, 3650-48TQ-S, 3650-48TS-E, 3650-48TS-L, 3650-48TS-S, ESS9300 Embedded Series Cisco ME 3600X-24FS Ethernet Access Switch Cisco Supervisor Engine 8-E, 8-E Redundant Cisco UCS 6248UP Fabric Interconnect
