Produktbeskrivning

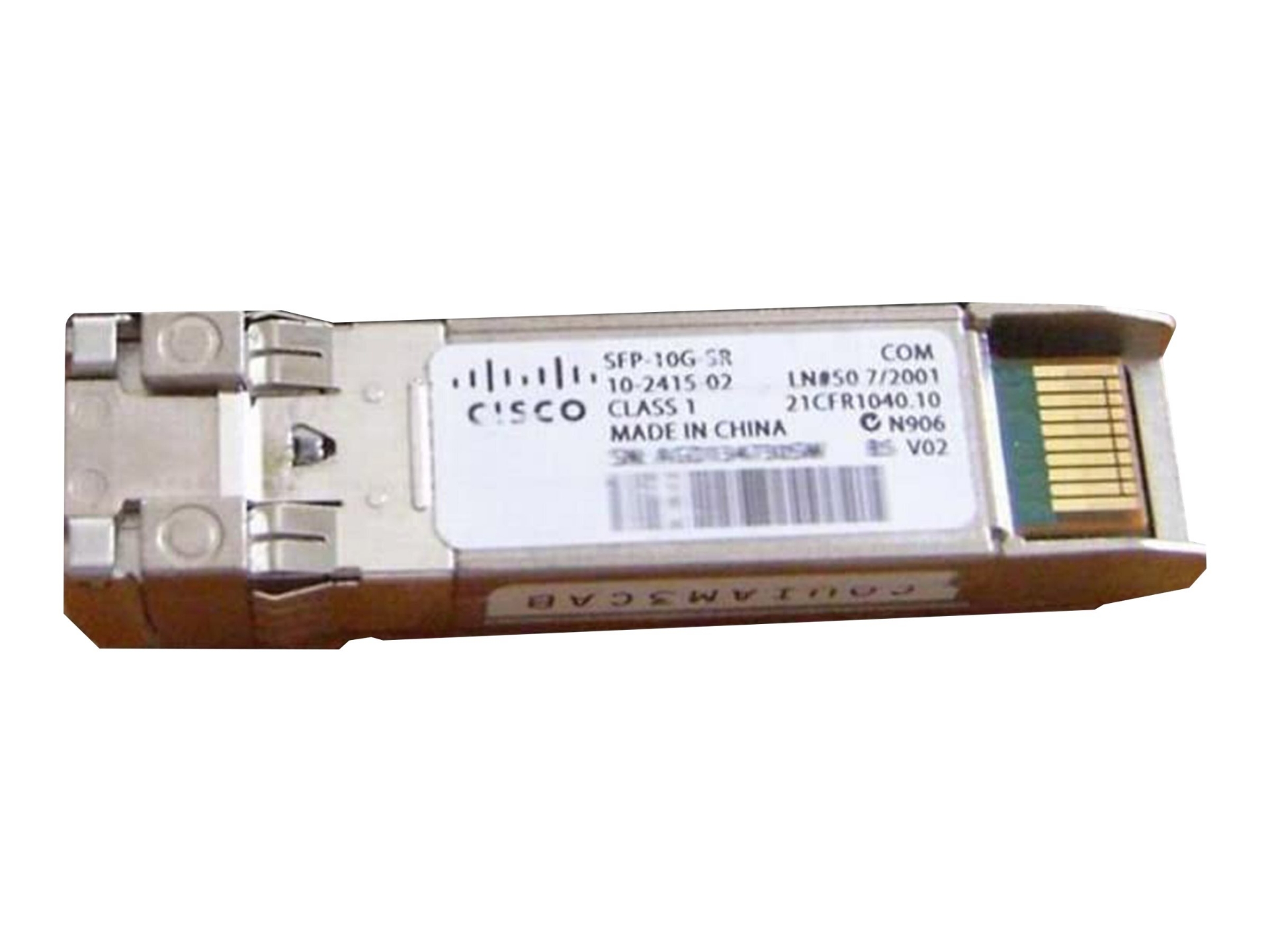

The Cisco 10GBASE-SR-S SFP Module delivers a wide variety of 10-Gigabit Ethernet connectivity options for data centre, enterprise server room and service provider transport applications. This hot-swappable input/output transceiver plugs into an Ethernet SFP+ port of a Cisco switch and offers optical interoperability with 10GBASE XENPAK, 10GBASE X2 and 10GBASE XFP interfaces on the same link.



Egenskaper

LINK LENGTH
Supports link lengths of 26 m on standard FDDI-grade multimode fiber; up to 300 m link lengths possible using OM3 and 400 m using OM4 (this model does not support Fiber Channel over Ethernet [FCoE])

COMPACT
Industry-smallest 10G form factor for greatest density per chassis

HOT SWAPPABLE
Plugs into an Ethernet SFP+ port of a Cisco switch with no need to shut down if installing or replacing

VERSATILITY
SFP receiver/transceiver module supports 'pay-as-you-populate' model for investment protection and ease of technology migration

PEACE OF MIND
5-year standard replacement warranty



Innehåll i förpackning

● SFP Module



Teknisk specifikation

Typ av enhet	SFP+ sändar/mottagarmodul
Formfaktor	Insticksmodul

Anslutningsteknik	Kabelansluten
Typ av kablage	10GBase-SR
Datalänkprotokoll	10GbE
Dataöverföringshastighet	10 Gbps
Optisk våglängd	850 nm
Max överföringsavstånd	400 m
Standarder som följs	IEEE 802.3ae

Gränssnitt	1 x Ethernet 10GBase-SR - LC/PC multi-mode x 2

Bredd	1.3 cm
Djup	5.7 cm
Höjd	0.9 cm
Vikt	75 g

Service och support	Begränsad garanti - 1 år

Min temperatur vid drift	0 °C
Max temperatur vid drift	70 °C
