Produktbeskrivning

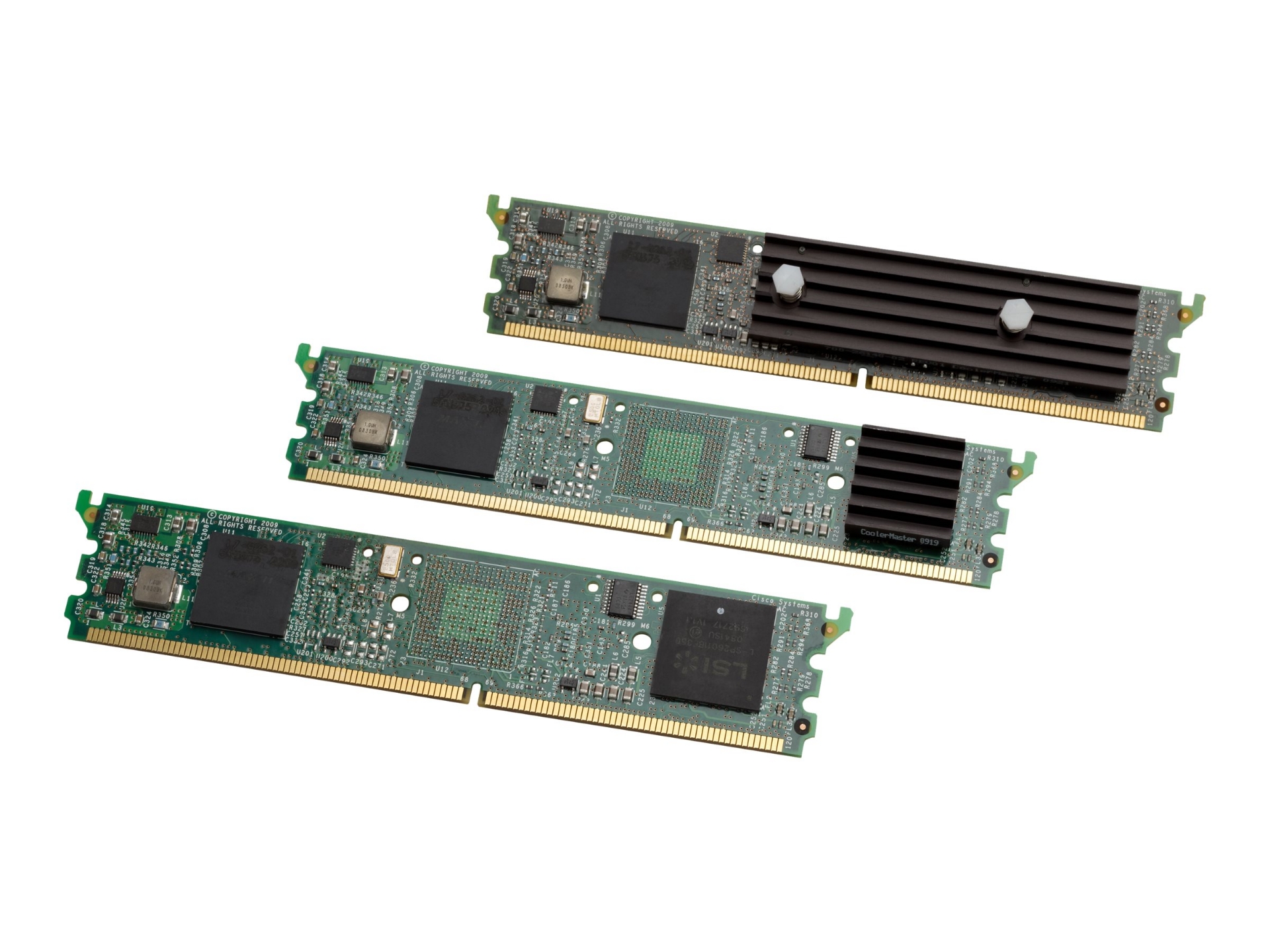

The Cisco High-Density Packet Voice Digital Signal Processor Module (PVDM3) enables Cisco 2900 and 3900 Series Integrated Services Routers Generation 2 to provide rich-media capabilities such as high-density voice video connectivity, conferencing, transcoding, transrating, and secure voice in Cisco Unified Communications Solutions.

The PVDM3s are supported on all Cisco 2900 and 3900 Series platforms. The PVDM3 provides higher density and more processing power than the PVDM2, making the addition of rich-media applications possible. Enhanced DSP architecture accommodates an original packet-processing engine optimized for rich-media voice and video applications, while concurrently supporting the time-division multiplexing IP (TDM-IP) voice framework used by the PVDM2.



Egenskaper

Investment protection and field-upgradable capability
You can now choose a DSP module from the PVDM3 module portfolio. The PVDM3 modules all have the same form factor, and are used across Cisco 2900 and 3900 Series Integrated Services Routers. The field-upgradable capability can help you easily scale your voice deployments.

Wide range of CODEC support
The PVDM3 modules support a wide range of codecs of different complexities.

High density and flexibility
The PVDM3 module portfolio has up to 4 times higher density than those in the PVDM2 portfolio. In addition, the PVDM3 modules provide better density for medium- and high-complexity codecs than their equivalent PVDM2 peers.

Conferencing, transcoding, and transrating services
The PVDM3 modules support digital voice connections, analog voice connections, conferencing, and universal transcoding services. The same DSPs on the PVDM3 modules can now support all the services with a single DSP image. In addition, the PVDM3 supports a higher number of conference sessions and a higher number of participants per conference than the PVDM2.

Cisco platform availability
The Cisco High-Density Packet Voice Digital Signal Processor Modules are supported on all Cisco 2900 and 3900 Series platforms.



Teknisk specifikation

Typ av enhet	Röst-DSP-modul
Formfaktor	Insticksmodul
Gränssnittstyp (buss)	DIMM 240-pin
Busspänning	3.3 V

Anslutningsteknik	Kabelansluten
Standarder som följs	G.711, G.729a, G.729ab, G.726, G.722, G.728, G.729, G.729b

RAM	512 MB

Kompatibla kortplatser	1 x expansionskortplats - DIMM 240-pin

Standarder som följs	CISPR 22 Class B, CISPR 24, EN 61000-3-2, IEC 60950, EN 61000-3-3, EN55024, EN50082-1, EN55022 Class B, AS/NZS 60950-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, EN 61000-4-11, EN 61000-4-8, UL 60950-1, EN 60950-1

Min temperatur vid drift	-5 °C
Max temperatur vid drift	55 °C

Designat för

Cisco 2901, 2901 Secure WAAS Bundle, 2901 Security Bundle, 2901 SRE Bundle, 2901 Terminal Server Bundle, 2901 Voice Bundle, 2901 Voice Security and CUBE Bundle, 2901 Voice Security Bundle, 2901 WAAS Bundle, 2911, 2911 Secure WAAS Bundle, 2911 Security Bundle, 2911 SRE Bundle, 2911 UCSE Bundle, 2911 Voice Bundle, 2911 Voice Security and CUBE Bundle, 2911 Voice Security Bundle, 2911 WAAS Bundle, 2921, 2921 Secure WAAS Bundle, 2921 Security Bundle, 2921 SRE Bundle, 2921 Voice Bundle, 2921 Voice Security and CUBE Bundle, 2921 Voice Security Bundle, 2921 WAAS Bundle, 2951, 2951 Secure WAAS Bundle, 2951 Security Bundle, 2951 SRE Bundle, 2951 Voice Bundle, 2951 Voice Security and CUBE Bundle, 2951 Voice Security Bundle, 2951 WAAS Bundle, 3925, 3925 Security Bundle, 3925 SRE Bundle, 3925 Voice Bundle, 3925 Voice Security and CUBE Bundle, 3925 Voice Security Bundle, 3925 WAAS Bundle, 3925E, 3925E Security Bundle, 3925E SRE Bundle, 3925E Voice Bundle, 3925E Voice Security and CUBE Bundle, 3925E Voice Security Bundle, 3945, 3945 PSRE Bundle, 3945 Security Bundle, 3945 SRE Bundle, 3945 Voice Bundle, 3945 Voice Security and CUBE Bundle, 3945 Voice Security Bundle, 3945 WAAS Express Bundle, 3945E, 3945E Security Bundle, 3945E SRE Bundle, 3945E Voice Bundle, 3945E Voice Security and CUBE Bundle, 3945E Voice Security Bundle
