Produktbeskrivning

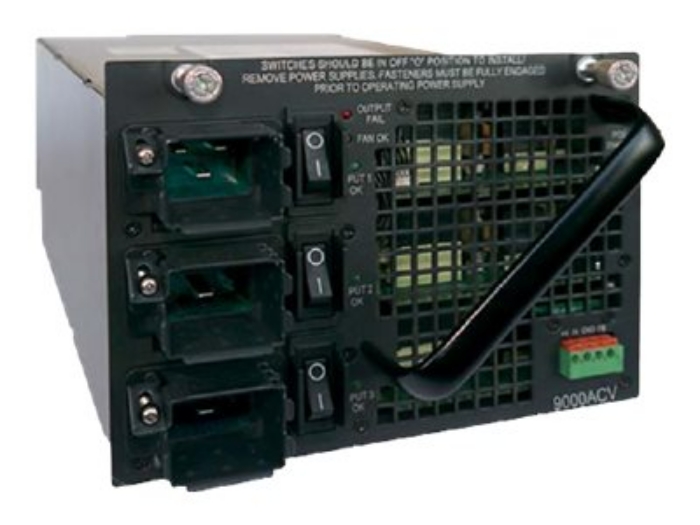

The Cisco Catalyst 4500E platform is the most widely deployed modular access platform and has been the industry leader for Power over Ethernet (PoE) technologies.



Egenskaper

Energy efficiency
80PLUS Platinum (formal certification pending) performance with more than 90-percent efficiency. It enables customers to meet corporate sustainability goals toward reducing their carbon footprint. It offers lower power dissipation in the wiring closet, so requires no additional cooling.

Lower total cost of ownership (TCO)
You should upgrade only the power supply in existing E-Series chassis to avail the benefits. This product possesses intelligent power monitoring and troubleshooting capabilities. The power supply measures the input and output power consumption of the system, enabling customers to optimally provision the right number of circuits in the wiring closet and accurately size the backup power (uninterruptible power supply [UPS]), thereby reducing infrastructure costs. It is equipped with "remote relay" functions that enable you to remotely shut down or power cycle a Cisco Catalyst 4500E series Switch for maintenance when there is no access to the console or command-line interface (CLI) of the switch, thereby reducing maintenance costs.



Teknisk specifikation

Typ av enhet	Nätaggregat - insticksmodul

Inspänning	AC 100-240 V
Utspänning	3.3 / 12 V
Effektkapacitet	9000 Watt

MTBF (genomsnittstid mellan fel)	186,000 timme/timmar
Egenskaper	Inbyggd PoE

Operativsystem erfordras	Cisco IOS 15.1(2)SG

Designat för	Cisco Catalyst 4503-E, 4503-E Data Bundle, 4503-E PoE Bundle, 4506-E, 4506-E PoE GE Bundle, 4507R+E, 4507R-E, 4507R-E Data Bundle, 4507R-E PoE Bundle, 4510R+E, 4510R-E
