Produktbeskrivning

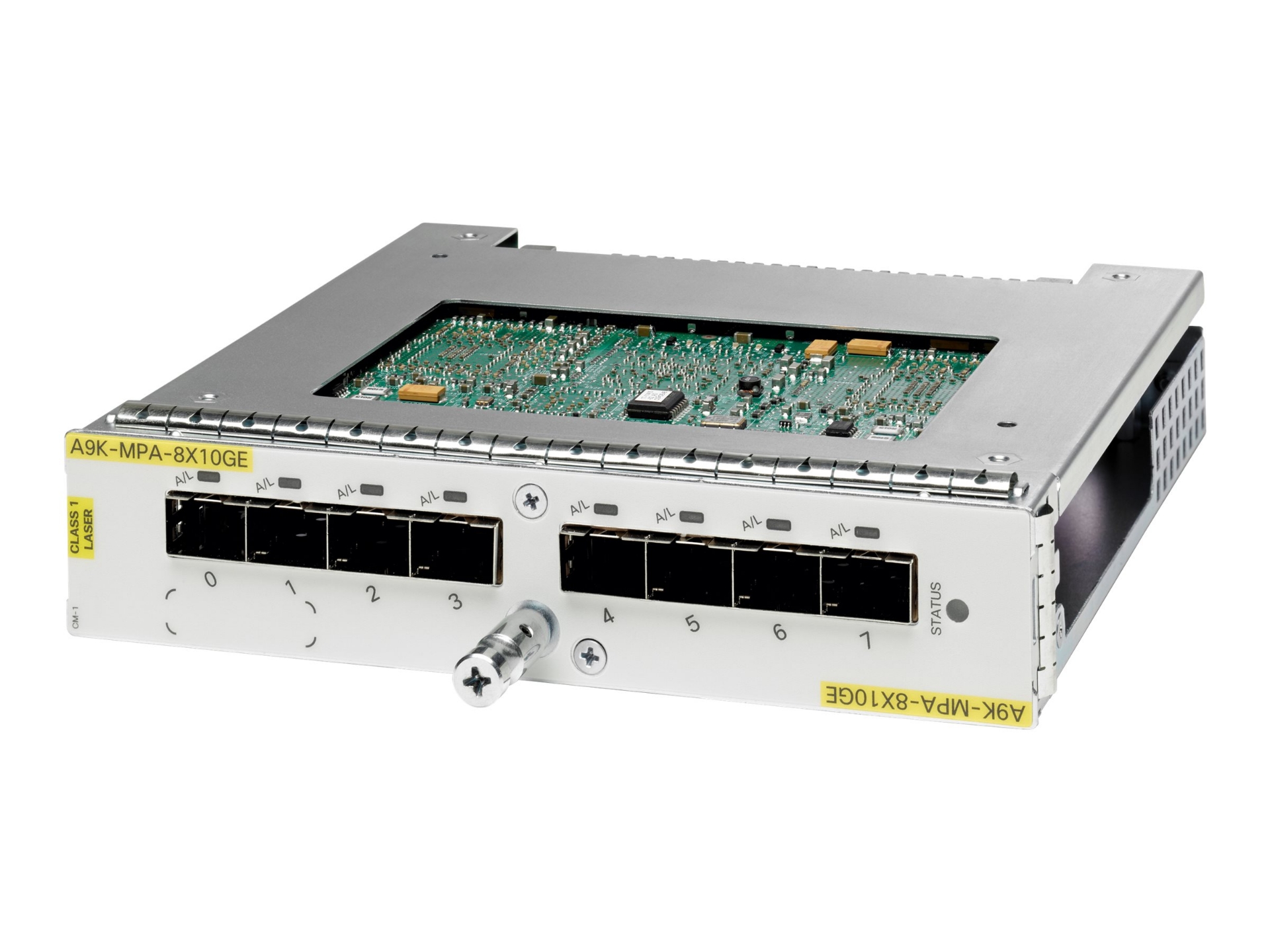

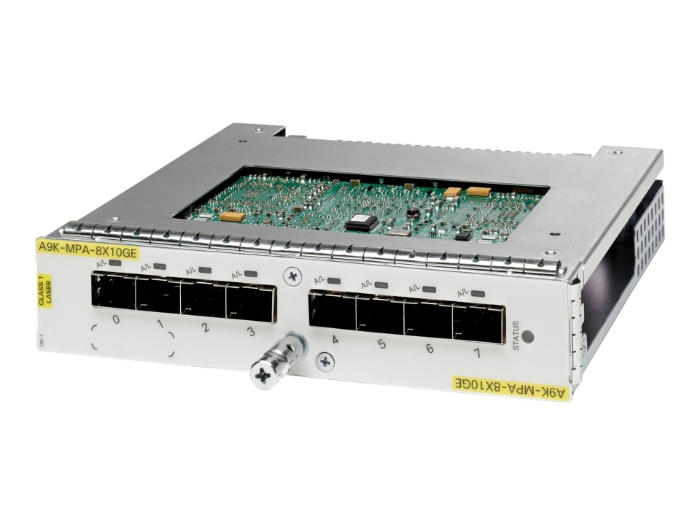

The Cisco ASR 9000 Series modular line cards provide customers with a flexible solution supporting multiple combinations of Ethernet ports, all in a single slot of the Cisco ASR 9000 Series aggregation services routers. Modular line cards support a wide range of interfaces and densities offering the benefits of network scalability with lower initial costs and ease of upgrades. The Cisco ASR 9000 modular line cards continue the Cisco focus on investment protection along with consistent feature support, broad interface availability, and advanced technology.

Using the modular line cards, the Cisco ASR 9000 Series can support customer applications including video-on-demand, Internet Protocol Television (IPTV), point-to-point video, Internet video, and cloud-based computing. These line cards can also be used to deliver economical, scalable, highly available, line-rate Ethernet, and IP/Multiprotocol Label Switching (IP/MPLS) edge services. The Cisco ASR 9000 Series line cards and routers are designed to provide the fundamental infrastructure for scalable Carrier Ethernet and IP/MPLS networks, supporting profitable business, residential, and mobile services



Egenskaper

Interface support
Provides the capability to mix and match interface types across a single line card.

G.709 and advanced FEC
Standard G.709 providing transmission-layer operations, administration, and maintenance (OAM); G.709 standard FEC and advanced FEC for enhanced transmission system performance.

Layer 2 and Layer 3 services
Combined IP, MPLS, Ethernet, Layer 2 VPN (L2VPN), and Layer 3 VPN (L3VPN) services.

Carrier-class OAM
NetFlow, IEEE 802.1ag, IEEE 802.3ah, ITU Y.1731, IP service-level agreement (IP SLA), virtual circuit connectivity verification (VCCV), ping, and traceroute.

Video monitoring (VidMon)
VidMon provides real-time monitoring of video flows, including issuance of alarm upon degradation.

Synchronous Ethernet
Derives and provides synchronization from and to Ethernet interfaces, Cisco ASR 9000 Series RSPs, and network synchronization interfaces.



Teknisk specifikation

Typ av enhet	Expansionsmodul
Formfaktor	Insticksmodul

Portar	10 Gigabit SFP+ x 8
Anslutningsteknik	Kabelansluten
Datalänkprotokoll	10 Gigabit Ethernet
Funktioner	Flödeskontroll, full duplex, stöd för MPLS, Quality of Service (QoS), NetFlow, Virtual Circuit Connectivity Verification (VCCV)
Standarder som följs	IEEE 802.3, IEEE 802.3x, IEEE 802.3ah, IEEE 802.1ag, ITU-T Y.1731

Gränssnitt	8 - SFP+

Standarder som följs

FCC klass A-certifierad, CISPR 22 klass A, EN 61000-3-2, EN55022, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, EN55024, EN50082-1, EN 61000-6-1, ACA TS001, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, ICES-003 klass A, EN 61000-4-5, EN 61000-4-11, EN 61000-4-8, EN 60825, FDA, AS/NZS 3548 klass A, BSMI Class A, AS/NZS 60950, GR-1089-CORE, IEC 60825, VCCI Class A, GR-63-CORE, IEC/UL/CSA/EN 60950-1, EN 300 386

Bredd	16.2 cm
Djup	17 cm
Höjd	3.45 cm
Vikt	790 g

Service och support	Begränsad garanti - 1 år

Min temperatur vid drift	5 °C
Max temperatur vid drift	40 °C
Luftfuktighet vid drift	10 - 85%

Designat för	Cisco ASR 9001, 9006, 9006 Chassis, 9006 DC Chasis V2, 9006 with PEM Version 2, 9010, 9010 for High Scale, 9010 with PEM Version 2, 9904, 9910, 9910 Chassis, 9912, 9912 DC Chassis V2, 9912 TH, 9922, 9922 Chassis with PEM Version 2
