Produktbeskrivning

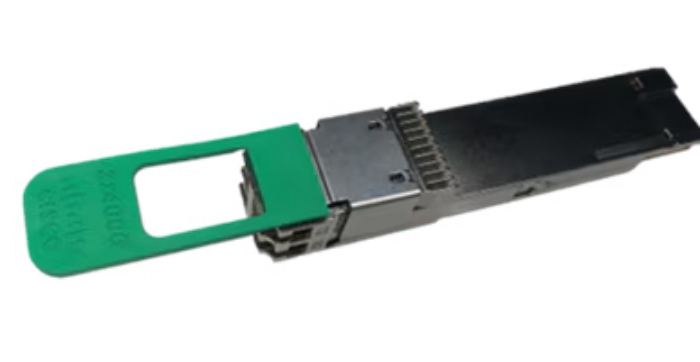

The Cisco QDD-2X400G-FR4 module supports link lengths of up to 2 km SMF with two duplex LC connectors. It is compliant to IEEE 802.3cu for 400GBASE-FR4 requirements and 100G Lambda MSA group. The 400 Gigabit Ethernet signal is carried over four CWDM grid optical wavelengths. Multiplexing and demultiplexing of the four wavelengths are managed within the device. FEC is performed on the host platform.



Viktiga egenskaper

Cisco QDD-2X400G-FR4=. SFP transceiver type: Fiber optic, Maximum data transfer rate: 400000 Mbit/s, Interface type: QSFP-DD. Product colour: Green, Silver. Width: 18.4 mm, Depth: 93.3 mm, Height: 8.5 mm. Quantity per pack: 1 pc(s)



Teknisk specifikation

SFP transceiver type	Fiber optic
Maximum data transfer rate	400000 Mbit/s
Interface type	QSFP-DD
Single-mode fiber (SMF) supported	Yes
Fiber optic connector	LC
SFP transceiver standard	FR4
Maximum transfer distance	2000 m
Fiber ethernet cabling technology	400GBASE

Product colour	Green,Silver

Operating temperature (T-T)	0 - 75 °C
Storage temperature (T-T)	-40 - 85 °C

Width	18.4 mm
Depth	93.3 mm
Height	8.5 mm
Weight	100 g

Quantity per pack	1 pc(s)
