Produktbeskrivning
The Cisco Aironet 1540 Series Access Point, with IEEE’s 802.11ac Wave 2 support, offers a data rate of up to 867 Mbps on a 5-GHz radio, enabling a total aggregated dual-radio data rate of up to 1.1 Gbps. Ideal for rugged outdoor environments, the Aironet 1815 Series delivers industry-leading performance for highly secure and reliable wireless connections and provides a superior mobility end-user experience.
Viktiga egenskaper

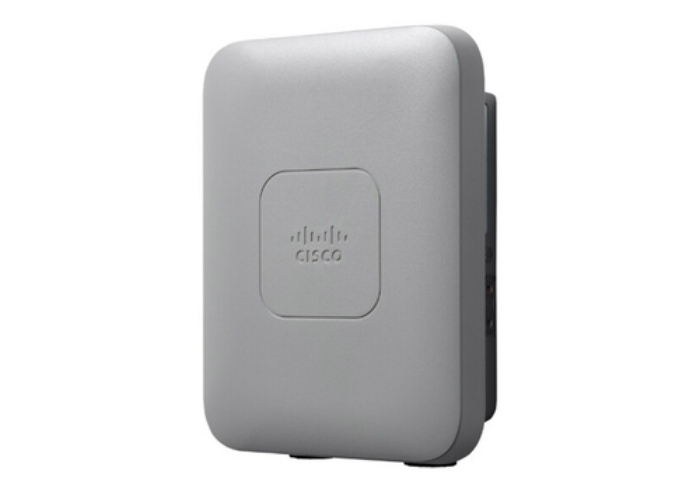

Cisco Aironet 1542I-E-K9 Wi-Fi Outdoor Access Point, 802.11ac Wave 2, with Internal Antenna, Wall or Ceiling Mountable (AIR-AP1542I-E-K9). 2.4 GHz, 5 GHz, Maximum data transfer rate: 867 Mbit/s. Security algorithms: EAP, EAP-PEAP, EAP-SIM, EAP-TLS, EAP-TTLS, IPSec, WPA, WPA2. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: White
Teknisk specifikation
Features
| 2.4 GHz | Yes |
|---|
| 5 GHz | Yes |
|---|
| Maximum data transfer rate | 867 Mbit/s |
|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
|---|
| Networking standards | IEEE 802.11a,IEEE 802.11ac,IEEE 802.11g,IEEE 802.11i,IEEE 802.11n,IEEE 802.1x |
|---|
| MIMO | Yes |
|---|
| MIMO type | Multi User MIMO |
|---|
| Maximal-Ratio Combining (MRC) | Yes |
|---|
| Dynamic Frequency Selection (DFS) | Yes |
|---|
| Cyclic Shift Diversity (CSD) | Yes |
|---|
| Transmitting power | 27 dBmW |
|---|
Security
| Security algorithms | EAP,EAP-PEAP,EAP-SIM,EAP-TLS,EAP-TTLS,IPSec,WPA,WPA2 |
|---|
| MAC address filtering | Yes |
|---|
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 1 |
|---|
| USB 2.0 ports quantity | 0 |
|---|
| WAN connection | Ethernet (RJ-45) |
|---|
Power
| Power consumption (typical) | 13 W |
|---|
| Power plug type | Type C |
|---|
Design
| Product colour | White |
|---|
| International Protection (IP) code | IP67 |
|---|
| Reset button | Yes |
|---|
| LED indicators | Yes |
|---|
| Certification | IEC 60529 IP67, NEMA 250-2008, NEMA 250-2008, EN 60068-2-5, MIL-STD-810, UL60950, CAN/CSA-C22.2 # 60950, IEC 60950, EN 60950, EN61000-4-5 4, EN61000-4-4 4, EN61000-4-3 4, EN61000-4-2 2, EN60950 IV; FCC 15.247, 15.407; FCC OET-65C, RSS-210, RSS-102, AS/NZ |
|---|
Antenna
| Antenna features | Integrated antenna |
|---|
| Antennas quantity | 2 |
|---|
| Antenna gain level (max) | 5 dBi |
|---|
Technical details
| Products per shipping (inner) case | 1 pc(s) |
|---|
Weight & dimensions
| Width | 150 mm |
|---|
| Depth | 200 mm |
|---|
| Height | 61 mm |
|---|
| Weight | 1250 g |
|---|
Packaging data
| Package width | 133.35 mm |
|---|
| Package depth | 260.35 mm |
|---|
| Package height | 228.6 mm |
|---|
| Package weight | 1383.22 g |
|---|
Operational conditions
| Operating temperature (T-T) | -40 - 65 °C |
|---|
| Storage temperature (T-T) | -40 - 85 °C |
|---|
Logistics data
| Harmonized System (HS) code | 85176990 |
|---|
| Quantity per pack | 1 pc(s) |
|---|
| Country of origin | Mexico |
|---|
| Products per master (outer) case | 1 pc(s) |
|---|
