Produktbeskrivning

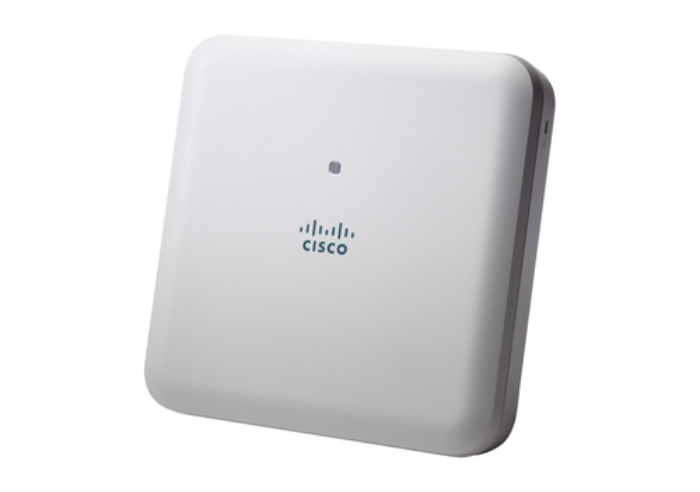

The Cisco Aironet 1832I, with IEEE’s 802.11ac Wave 2 support, offers a data rate of up to 867 Mbps on a 5-GHz radio, enabling a total aggregated dual-radio data rate of up to 1 Gbps. Ideal for small and medium-sized networks, the Aironet 1832Ii delivers industry-leading performance for highly secure and reliable wireless connections and provides a superior mobility end-user experience.



Viktiga egenskaper

Cisco Aironet 1832I-E-K9 Wi-Fi Access Point, 802.11ac Wave 2, with Internal Antenna (AIR-AP1832I-E-K9). 2.4 GHz, 5 GHz, Maximum data transfer rate: 866.7 Mbit/s. Security algorithms: 802.1x RADIUS, AES, TKIP, WPA, WPA2. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: White



Teknisk specifikation

2.4 GHz	Yes
5 GHz	Yes
Maximum data transfer rate	866.7 Mbit/s
Ethernet LAN data rates	10,100,1000 Mbit/s
Frequency band	2.4 - 5 GHz
Networking standards	IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.1x,IEEE 802.3af,IEEE 802.3at
Channels quantity	25 channels
Wi-Fi Multimedia (WMM)/(WME)	Yes
Receiver sensitivity	802.11b (CCK) -101 dBm @ 1 Mbps -98 dBm @ 2 Mbps -92 dBm @ 5.5 Mbps -89 dBm @ 11 Mbps 802.11g (non HT20) -96 dBm @ 6 Mbps -95 dBm @ 9 Mbps -94 dBm @ 12 Mbps -92 dBm @ 18 Mbps -88 dBm @ 24 Mbps -85 dBm @ 36

Security algorithms	802.1x RADIUS,AES,TKIP,WPA,WPA2

Ethernet LAN (RJ-45) ports	2
USB 2.0 ports quantity	1
WAN connection	Ethernet (RJ-45)
DC-in jack	Yes

AC input frequency	50 - 60 Hz
AC input voltage	100 - 240 V
Power consumption (typical)	15.4 W
Power plug type	Type C

Placement	Ceiling,Table,Wall
Product colour	White
LED indicators	Yes
Internal	No

Antenna direction type	Omni-directional
Antenna features	Integrated antenna
Antennas quantity	3
Antenna gain level (max)	5 dBi

Flash memory	256 MB
Internal memory	1024 MB

Products per shipping (inner) case	1 pc(s)

Width	210.8 mm
Depth	210.8 mm
Height	50.8 mm
Weight	930 g

Package width	225.552 mm
Package depth	244.602 mm
Package height	98.552 mm
Package weight	1478.46 g

Operating relative humidity (H-H)	10 - 90 %
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-30 - 70 °C
Non-operating altitude	0 - 4572 m
Storage relative humidity (H-H)	10 - 90 %
Operating altitude	0 - 3000 m

Harmonized System (HS) code	85176990
Quantity per pack	1 pc(s)
Country of origin	Mexico
Products per master (outer) case	1 pc(s)
