Produktbeskrivning
The Cisco industrial din-rail power supplies offer a variety of rugged, reliable, and compact AC and DC power supply options to power Cisco’s industrial Ethernet switches, industrial routers (including industrial gateways), and industrial computing products. Some key features include:
- Power supply options from 50W to 480W
- Operating temperatures ranging between -40°C and +85°C
- Din-rail mountable options
- Enablement of high capacity Power over Ethernet (PoE)
- Conformal coating options
Viktiga egenskaper

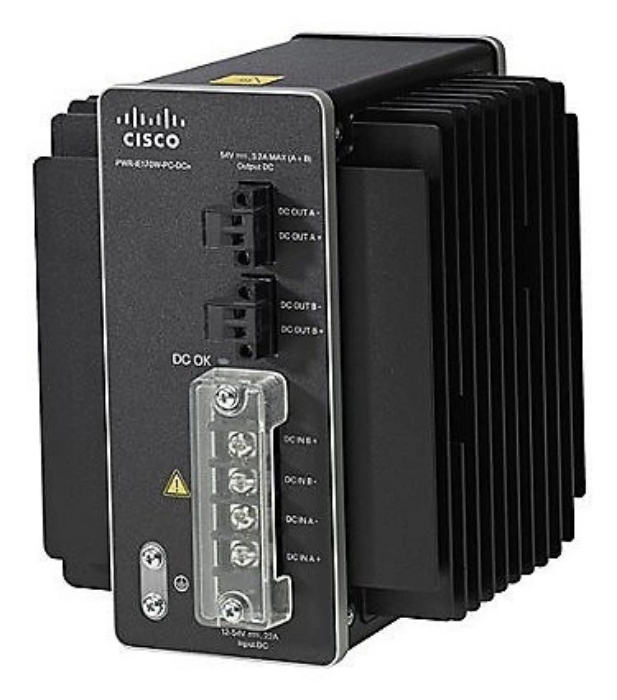

Cisco PWR-IE170W-PC-DC. Product type: Power supply, Product colour: Black, Mean time between failures (MTBF): 2164641 h. Total power: 170 W, Inrush current: 17.3 A, DC voltage range: 10.8 - 60 V. Safety: IP20, Certification: EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 UL 508 Class 1, Div 2/Zone 2.... Width: 114 mm, Depth: 150 mm, Height: 146 mm
Teknisk specifikation
Features
| Product type | Power supply |
|---|
| Product colour | Black |
|---|
| Internal | Yes |
|---|
| DIN rail mounting | Yes |
|---|
| Mean time between failures (MTBF) | 2164641 h |
|---|
| Safety | IP20 |
|---|
| Certification | EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013
UL 508 Class 1, Div 2/Zone 2
EN61000-4-2, EN61000-4-3, EN61000-4-4,
EN61000-4-5, EN61000-4-6, EN61000-4-8,
EN 55032:2015, EN 55024: 2010+A1:2015
EN55032:2015, EN 55024: 2010 |
|---|
Power
| Total power | 170 W |
|---|
| Inrush current | 17.3 A |
|---|
| DC voltage range | 10.8 - 60 V |
|---|
| DC output voltage | 54 V |
|---|
Operational conditions
| Operating temperature (T-T) | -40 - 75 °C |
|---|
| Storage temperature (T-T) | -40 - 85 °C |
|---|
Weight & dimensions
| Width | 114 mm |
|---|
| Depth | 150 mm |
|---|
| Height | 146 mm |
|---|
| Weight | 1670 g |
|---|
Logistics data
| Harmonized System (HS) code | 85177900 |
|---|
