Produktbeskrivning

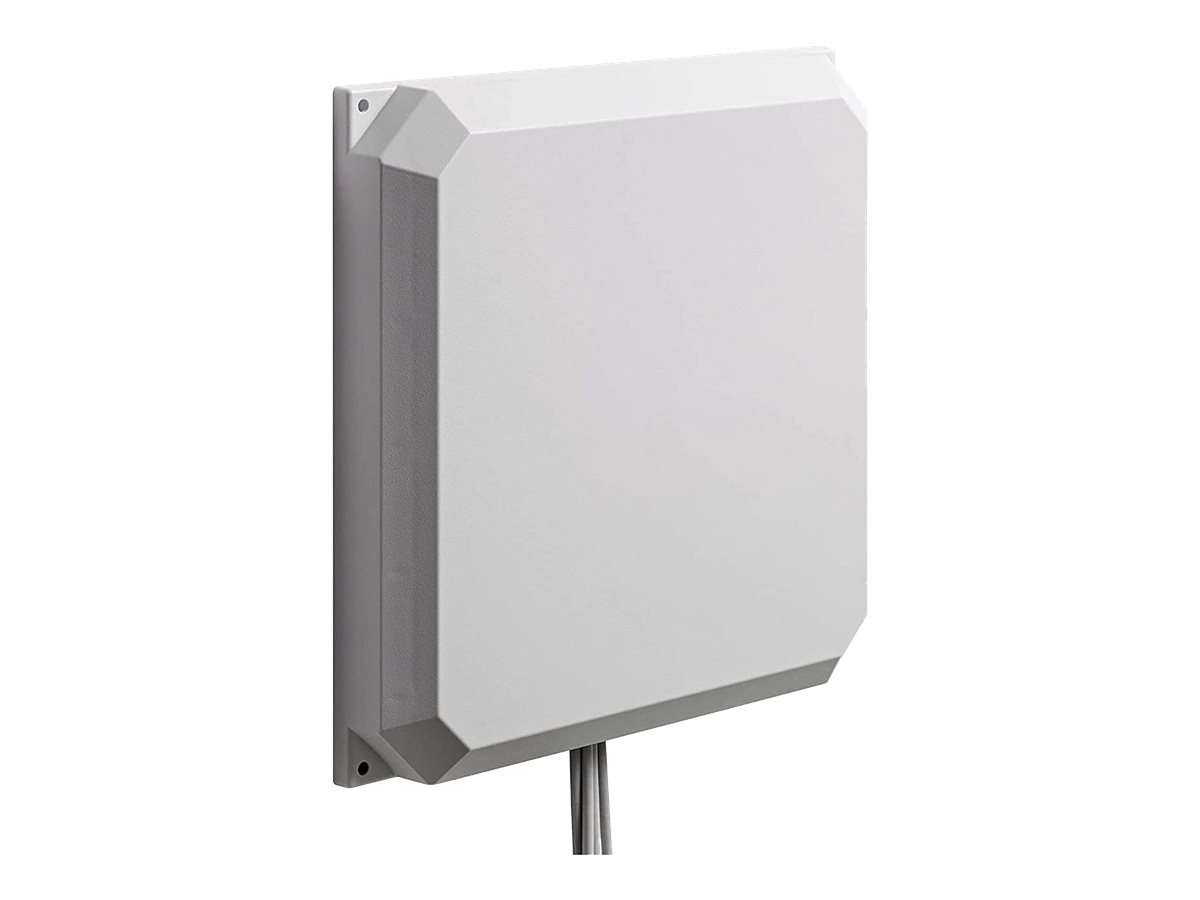

The Cisco Aironet AIR-ANT2566P4W-RS= Dual-Band Directional Wi-Fi Patch Antenna is designed with improved performance in mind. It directs the energy it receives from the transmitter to provide more energy in one direction and less in other directions. This FCC-approved patch antenna includes circuitry to enable self-identification of the antenna by the Cisco Catalyst 9100 Access Points.



Egenskaper

PATCH ANTENNA
6 dBi (2.4 GHz)/6 dBi (5 GHz), MIMO (4 dual-band ports); designed for use with dual-band port access points such as the Aironet 1830, 1850, 2800 and 3800 Series and Cisco Catalyst 9115AX, 9120AX and 9130AX Series

CONNECTION AND MOUNT
4 plenum-rated 36-inch cables and RP-TNC connectors; wall mount

DIRECTED RADIATION PATTERN
Intended for deployment when directed coverage is required

PERFORMANCE
Designed for improved directional coverage

PEACE OF MIND
1-year limited hardware warranty



Innehåll i förpackning

● AIR-ANT2566P4W-RS Antenna



Teknisk specifikation

Produkttyp	Antenn
Bredd	27.9 cm
Djup	3.05 cm
Höjd	16 cm
Vikt	635 g
Kabellängd	91.4 cm

Antennplacering/-montering	Utomhus, inomhus
Frekvensintervall	5.150 - 5.850 GHz, 2.4 - 2.484 GHz
Förstärkning	6 dBi (för 2,4 GHz), 6 dBi (för 5 GHz)
Riktning	Riktnings-
Spänning för ståendevågkvot (VSWR)	2:1
Horisontell strålvidd	105° (vid 2,4 GHz), 110° (vid 5 GHz)
Vertikal strålvidd	65° (vid 2,4 GHz), 55° (vid 5 GHz)

Tillhandahållet kontaktdon	4 x RP-TNC

Egenskaper	MIMO-teknik, IP54-skydd

Min temperatur vid drift	-40 °C
Max temperatur vid drift	70 °C

Designat för	Cisco Catalyst 9120AXE, 9120AXP
