Produktbeskrivning

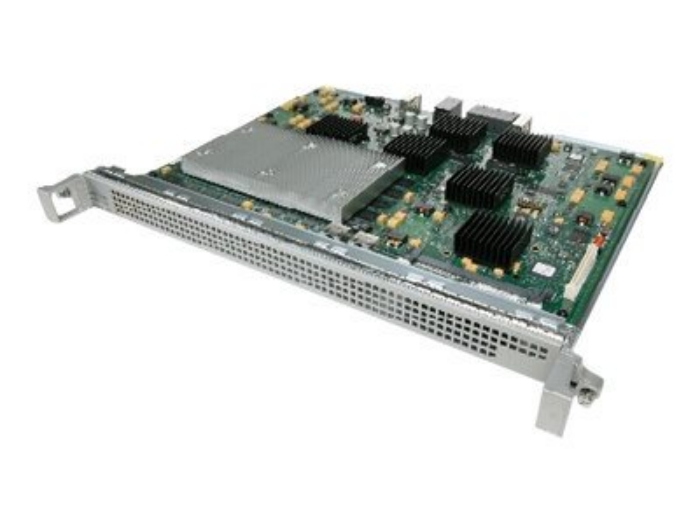

The Cisco ASR 1000 Series 20-Gbps Embedded Services Processor (ESP) is based on the innovative Cisco QuantumFlow Processor for next-generation forwarding and queuing in silicon. The Cisco ASR 1000 Series ESP is responsible for data-plane processing tasks, and all network traffic flows through them, enhancing a range of advanced services from service provider broadband and edge services to enterprise-level WAN aggregation and IP gateway services.



Egenskaper

Service provider broadband
The Cisco ASR 1000 series router serves as a broadband aggregation router that terminates up to 32,000 subscriber sessions and supports features such as Session Border Controller (SBC) for voice over IP (VoIP) and video services and hardware-assisted per-user firewall for security.

Service provider edge (PE)
The Cisco ASR 1000 series router interfaces with service provider-provisioned voice and multimedia services directly at the edge. No overlay network, network appliances, or service blades are required in this solution for lower operating expenses (OpEx) and flexible deployment models. This router supports protected signaling for both voice and video services and facilitates 32,000 voice calls concurrent with 20 Gbps of data traffic with accounting, firewall, and call quality features enabled.

Service provider-managed Customer Premise Equipment (CPE)
The Cisco ASR 1000 series router serves as a WAN aggregation router with high-density Gigabit Ethernet or WAN link aggregation and 10 Gigabit Ethernet uplink capabilities. Key benefits are Layer 2 and Layer 3 VPN functions and line-rate IP Multicast support for triple-play (data, voice, and video).

Enterprise WAN aggregation
The Cisco ASR 1000 series router at the WAN aggregation head-end facilitates a branch architecture that offers excellent investment protection with services and scale. Solution benefits consist of a multi-gigabit encryption rate, optimization of the WAN to route around brownouts in the service provider network to guarantee mission-critical applications.



Teknisk specifikation

Typ av enhet	Kontrollprocessor
Bredd	42.8 cm
Djup	36 cm
Höjd	2 cm

RAM	4 GB

Formfaktor	Insticksmodul
Anslutningsteknik	Kabelansluten
Protokoll för administration på distans	SNMP, Telnet
Prestanda	Bandbredd: 20 Gbps
Kapacitet	IPv4-routes: 1000000 IPv6-routes: 250000 ACL-regler: 16000 IPSec VPN-tunnlar: 10000 NAT-poster: 1000000
Statusindikatorer	Strömförsörjning, aktiv, vänteläge, status
Funktioner	Brandväggsskydd, NAT-stöd, stöd för IPv6, Quality of Service (QoS)

Kompatibla kortplatser	1 x expansionskortplats

Standarder som följs	CISPR 24, EN 60950, VCCI klass A ITE, IEC 60950, EN55024, UL 60950, CISPR 22, EN50082-1, CSA 22.2 No. 60950, EN 61000-4-2, EN 61000-4-6, EN 50082-2, EN 61000-4-11, AS/NZS 3548:1995, EN 55022 Class A, EN 300 386

Min temperatur vid drift	5 °C
Max temperatur vid drift	40 °C
Luftfuktighet vid drift	5 - 85%

Designat för	Cisco ASR 1004, 1004 FPI Bundle, 1004 HA Bundle, 1004 Security HA Bundle, 1004 VPN and Firewall Bundle, 1004 VPN Bundle, 1006, 1006 BB Bundle, 1006 FPI Bundle, 1006 HA Bundle, 1006 Security HA Bundle, 1006 VPN and Firewall Bundle, 1006 VPN Bundle
