Produktbeskrivning

These are times of unprecedented change for small businesses. Consumers are more demanding than ever before. Online transactions have accelerated. While this new promises greater reward, it also requires small businesses to accelerate digital transformation. At the same time, employees are increasingly distributed across remote and office locations, and this trend is likely to continue. You need a network solution that provides fast, reliable access to critical cloud-based business applications across a remote and in-office workforce.

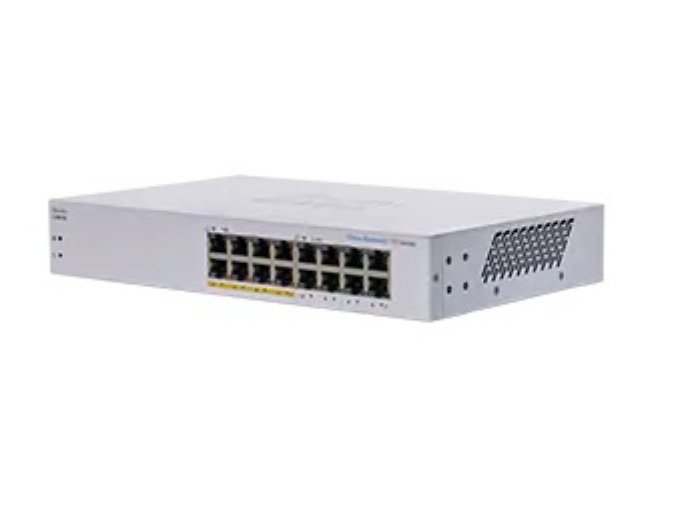

Now you can have a high-performance, business-class network with the Cisco® Business 110 Series Unmanaged Switches. These affordable plug-and-play switches are ideal for small offices, workgroups, departments, and growing offices with limited IT know-how and support.
Cisco Business 110 Series Unmanaged Switches, part of the Cisco Business networking portfolio, are a family of affordable switches that provide Gigabit Ethernet connectivity for your small business network. Available in desktop and rack-mount models, these switches are designed to suit any small business with basic network needs and are optimized for power efficiency. They provide robust network connectivity your business demands, as well as added reliability with advanced features such as Quality of Service (QoS), loop detection, and cable diagnostics, all in a switch that you can set up yourself in minutes. The Cisco Business 110 Series switches bring the proven reliability and investment protection of Cisco networking solutions to your small business.



Viktiga egenskaper

Cisco CBS110. Switch type: Unmanaged, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. Full duplex. MAC address table: 8192 entries, Switching capacity: 32 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE.... Power over Ethernet (PoE). Rack mounting, Form factor: 1U



Teknisk specifikation

Switch type	Unmanaged
Switch layer	L2
Quality of Service (QoS) support	Yes

Basic switching RJ-45 Ethernet ports quantity	16
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	16
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0

Networking standards	IEEE 802.1p,IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
10G support	No
Copper ethernet cabling technology	10BASE-T,100BASE-TX,1000BASE-T
Cable types supported	Cat5e
Full duplex	Yes
Half duplex	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Head-of-line (HOL) blocking	Yes
Auto MDI/MDI-X	Yes
Flow control support	Yes

MAC address table	8192 entries
Switching capacity	32 Gbit/s
Forwarding rate	23.8 Mpps
Number of queues	4
Jumbo frames support	Yes
Jumbo frames	9216

Queue scheduling algorithms	Weighted Round Robin (WRR)

Rack mounting	Yes
Form factor	1U
Product colour	Grey
LED indicators	Yes
Certification	UL (UL 60950), CSA (CSA 22.2), CE mark, FCC (CFR 47) Class A, FCC Class B

Built-in processor	Yes
Processor frequency	400 MHz
Internal memory	128 MB
Flash memory	16 MB
Mean time between failures (MTBF)	1971811 h

Compliance certificates	CE

Power supply included	Yes
AC input voltage	110 - 240 V
AC input frequency	50 - 60 Hz

Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) ports quantity	8
Total Power over Ethernet (PoE) budget	64 W

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	10 - 90 %
Storage relative humidity (H-H)	5 - 90 %
Heat dissipation	274.27 BTU/h

Width	279 mm
Depth	170 mm
Height	44 mm
Weight	1300 g

Quick start guide	Yes
Rack mount kit	Yes

Sustainability compliance	Yes

Harmonized System (HS) code	85176990
