Produktbeskrivning

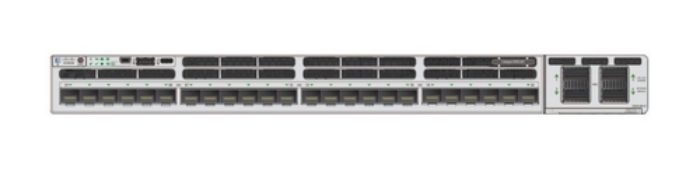

Built to reimagine connection, reinforce security and redefine experienceCisco Catalyst 9300 Series switches are Cisco’s lead stackable enterprise access switching platform and as part of the Catalyst 9000 family, are build to transform your network to handle a hybrid world where the workplace is anywhere, endpoints could be anything, and applications are hosted all over the place.
The Catalyst 9300 Series, including the new Catalyst 9300X models, continues to shape the future with continued innovation that helps you reimagine connections, reinforce security and redefine the experience for your hybrid workforce big and small.
Viktiga egenskaper
Cisco 9300X. Switch type: Managed, Switch layer: L3. Installed SFP modules quantity: 24. Full duplex. MAC address table: 32000 entries, Switching capacity: 1000 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE.... Rack mounting, Form factor: 1U
Teknisk specifikation
Management features
| Switch type | Managed |
|---|
| Switch layer | L3 |
|---|
| Quality of Service (QoS) support | Yes |
|---|
| ARP inspection | Yes |
|---|
| Configuring Location Settings (CLI) | Yes |
|---|
| MIB support | Yes |
|---|
Ports & interfaces
| Installed SFP modules quantity | 24 |
|---|
| Installed SFP+ modules quantity | 0 |
|---|
Network
| Networking standards | IEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE 802.3u,IEEE 802.3x |
|---|
| 10G support | Yes |
|---|
| Full duplex | Yes |
|---|
| VLAN support | Yes |
|---|
Data transmission
| MAC address table | 32000 entries |
|---|
| Switching capacity | 1000 Gbit/s |
|---|
| Forwarding rate | 1488 Mpps |
|---|
| Static route | Yes |
|---|
| Jumbo frames support | Yes |
|---|
| Jumbo frames | 9198 |
|---|
| Packet buffer memory | 32 MB |
|---|
Security
| Access Control List (ACL) | Yes |
|---|
| IGMP snooping | Yes |
|---|
Multicast features
| Multicast support | Yes |
|---|
Design
| Rack mounting | Yes |
|---|
| Stackable | Yes |
|---|
| Form factor | 1U |
|---|
| LED indicators | Yes |
|---|
Performance
| Internal memory | 16000 MB |
|---|
| Flash memory | 16000 MB |
|---|
Power
| Power source | AC |
|---|
| AC input voltage | 100 - 240 V |
|---|
| AC input frequency | 50/60 Hz |
|---|
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | No |
|---|
Operational conditions
| Operating temperature (T-T) | -5 - 45 °C |
|---|
| Storage temperature (T-T) | -40 - 70 °C |
|---|
| Operating relative humidity (H-H) | 5 - 90 % |
|---|
