Produktbeskrivning

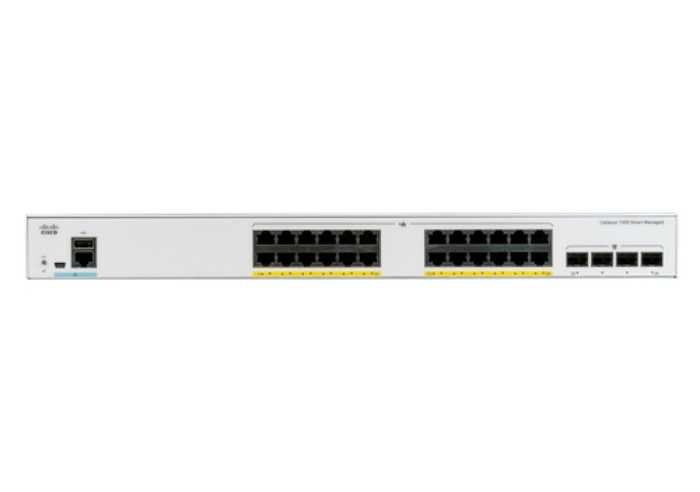

The Cisco Catalyst 1000-24P-4G-L Network Switch is an enterprise-class fixed managed Gigabit Ethernet Layer 2 switch designed for small businesses and branch offices. This simple, flexible and secure network switch is ideal for critical IoT (Internet of Things) deployments. It operates on Cisco IOS Software and features a CLI (command-line interface) as well as an intuitive web user interface.
Viktiga egenskaper
Cisco Catalyst 1000-24P-4G-L Network Switch, 24 Gigabit Ethernet (GbE) PoE+ Ports, 195W PoE Budget, four 1 G SFP Uplink Ports, Fanless Operation, Enhanced Limited Lifetime Warranty (C1000-24P-4G-L). Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, USB 2.0 ports quantity: 1, Console port: RJ-45/Mini-USB. Full duplex. MAC address table: 16000 entries, Switching capacity: 56 Gbit/s. Networking standards: IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE.... Power over Ethernet (PoE)
Teknisk specifikation
Management features
| Switch type | Managed |
|---|
| Switch layer | L2 |
|---|
| Quality of Service (QoS) support | Yes |
|---|
| Web-based management | Yes |
|---|
| Configuring Location Settings (CLI) | Yes |
|---|
| Traffic classification | Yes |
|---|
| ARP inspection | Yes |
|---|
| MIB support | Yes |
|---|
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 24 |
|---|
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
|---|
| SFP module slots quantity | 4 |
|---|
| Console port | RJ-45/Mini-USB |
|---|
| USB 2.0 ports quantity | 1 |
|---|
Network
| Networking standards | IEEE 802.1AX,IEEE 802.1D,IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3ad,IEEE 802.3ae,IEEE 802.3af,IEEE 802.3ah,IEEE 802.3at,IEEE 802.3az,IEEE 802.3u |
|---|
| 10G support | No |
|---|
| Full duplex | Yes |
|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
|---|
| Link aggregation | Yes |
|---|
| Broadcast storm control | Yes |
|---|
| Auto MDI/MDI-X | Yes |
|---|
| Spanning tree protocol | Yes |
|---|
| VLAN support | Yes |
|---|
| Number of VLANs | 4094 |
|---|
Data transmission
| MAC address table | 16000 entries |
|---|
| Switching capacity | 56 Gbit/s |
|---|
| Forwarding rate | 41.67 Mpps |
|---|
| Static route | Yes |
|---|
| Number of static routes | 16 |
|---|
| Jumbo frames support | Yes |
|---|
| Jumbo frames | 10240 |
|---|
Security
| DHCP features | DHCP snooping |
|---|
| Access Control List (ACL) | Yes |
|---|
| IGMP entries | 1024 |
|---|
| IGMP snooping | Yes |
|---|
| BPDU filtering/protection | Yes |
|---|
| Authentication type | RADIUS |
|---|
| SSH/SSL support | Yes |
|---|
| Authentication | Web-based authentication |
|---|
| Loop protection | Yes |
|---|
Multicast features
| Multicast support | Yes |
|---|
| IPv4 multicast entries | 1024 |
|---|
| IPv6 multicast entries | 1024 |
|---|
Design
| Product colour | Grey |
|---|
| LED indicators | Yes |
|---|
| Market segment | Business |
|---|
| Country of origin | China |
|---|
Performance
| Built-in processor | Yes |
|---|
| Processor model | ARM7 |
|---|
| Processor frequency | 800 MHz |
|---|
| Memory type | DRAM |
|---|
| Internal memory | 512 MB |
|---|
| Flash memory | 256 MB |
|---|
| Mean time between failures (MTBF) | 698220 h |
|---|
Technical details
| Products per shipping (inner) case | 1 pc(s) |
|---|
Power
| AC input voltage | 110 - 220 V |
|---|
| AC input frequency | 50 - 60 Hz |
|---|
| Power plug type | Type C |
|---|
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | Yes |
|---|
| Power over Ethernet plus (PoE+) ports quantity | 24 |
|---|
| Total Power over Ethernet (PoE) budget | 195 W |
|---|
Operational conditions
| Operating temperature (T-T) | -5 - 50 °C |
|---|
| Storage temperature (T-T) | -25 - 70 °C |
|---|
| Operating relative humidity (H-H) | 5 - 90 % |
|---|
| Storage relative humidity (H-H) | 5 - 95 % |
|---|
| Operating altitude | 0 - 3000 m |
|---|
| Non-operating altitude | 0 - 4500 m |
|---|
Weight & dimensions
| Width | 444.5 mm |
|---|
| Depth | 299 mm |
|---|
| Height | 44 mm |
|---|
| Weight | 3530 g |
|---|
Packaging data
| Package width | 390.652 mm |
|---|
| Package depth | 549.402 mm |
|---|
| Package height | 147.574 mm |
|---|
| Package weight | 5541.95 g |
|---|
Logistics data
| Quantity per pack | 1 pc(s) |
|---|
| Harmonized System (HS) code | 85176990 |
|---|
| Products per master (outer) case | 1 pc(s) |
|---|
