Produktbeskrivning

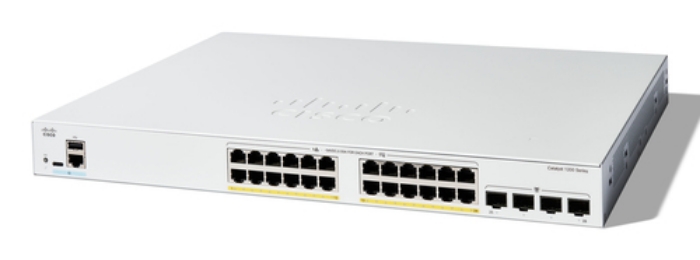

The Cisco Catalyst 1200-24FP-4G switch is the next generation of affordable, smart switches that combine powerful network performance, security and reliability with a comprehensive suite of network features you need for a solid small business network.



Viktiga egenskaper

Cisco Catalyst 1200-24FP-4G Smart Switch, 24 Port GE, Full PoE, 4x1GE SFP, Limited Lifetime Protection (C1200-24FP-4G). Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, Installed SFP modules quantity: 4. Networking standards: IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ad, IEEE...



Teknisk specifikation

Switch type	Managed
Switch layer	L2/L3
Quality of Service (QoS) support	Yes
Web-based management	Yes
Configuring Location Settings (CLI)	Yes
ARP inspection	Yes
MIB support	Yes

Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	4
Installed SFP+ modules quantity	0

Networking standards	IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1ad,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ad,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
10G support	No
Port mirroring	Yes
Broadcast storm control	Yes
Flow control support	Yes
Spanning tree protocol	Yes
Head-of-line (HOL) blocking	Yes
Ethernet LAN data rates	1000 Mbit/s
VLAN support	Yes

Static route	Yes
Jumbo frames support	Yes
Jumbo frames	9000

Access Control List (ACL)	Yes
IGMP snooping	Yes
MAC address filtering	Yes
SSH/SSL support	Yes
Security algorithms	HTTPS,SSH,SSL/TLS

Multicast support	Yes

Product colour	White
Housing material	Metal
Reset button	Yes
LED indicators	Yes
Country of origin	China

Processor frequency	1400 MHz
Internal memory	1024 MB
Flash memory	512 MB

Power source	AC
Power supply included	Yes
Power plug type	Type C

Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-25 - 70 °C
Operating relative humidity (H-H)	10 - 90 %
Storage relative humidity (H-H)	10 - 90 %

Width	350.012 mm
Depth	444.5 mm
Height	43.942 mm

Package width	512.064 mm
Package depth	575.056 mm
Package height	107.95 mm
Package weight	7120.18 g
