Produktbeskrivning

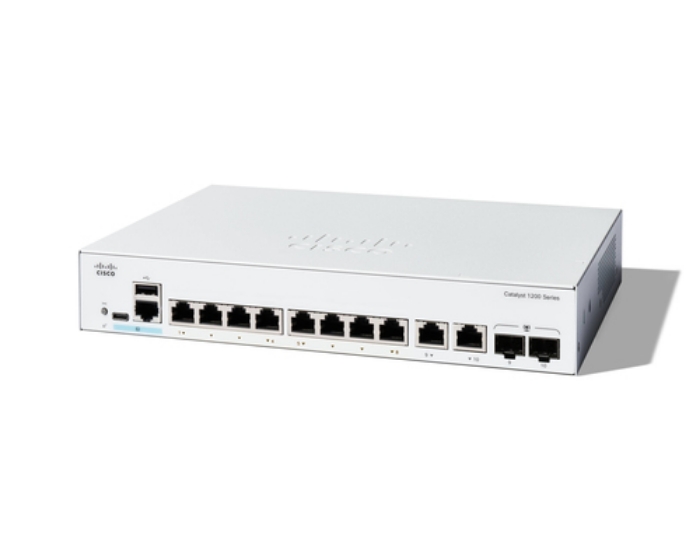

The Cisco Catalyst 1200-8T-E-2G switch is the next generation of affordable, smart switches that combine powerful network performance, security and reliability with a comprehensive suite of network features you need for a solid small business network.
Viktiga egenskaper
Cisco Catalyst 1200-8T-E-2G Smart Switch, 8 Port GE, Ext PS, 2x1GE Combo, Limited Lifetime Protection (C1200-8T-E-2G). Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 10, Console port: RJ-45/USB Type-C. MAC address table: 8000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE.... Rack mounting, Form factor: 1U
Teknisk specifikation
Management features
| Switch type | Managed |
|---|
| Switch layer | L2 |
|---|
| Quality of Service (QoS) support | Yes |
|---|
| Web-based management | Yes |
|---|
| Configuring Location Settings (CLI) | Yes |
|---|
| MIB support | Yes |
|---|
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 10 |
|---|
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
|---|
| Installed SFP modules quantity | 0 |
|---|
| Installed SFP+ modules quantity | 0 |
|---|
| SFP module slots quantity | 2 |
|---|
| Console port | RJ-45/USB Type-C |
|---|
Network
| Networking standards | IEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3ad,IEEE 802.3az |
|---|
| 10G support | No |
|---|
| Port mirroring | Yes |
|---|
| Head-of-line (HOL) blocking | Yes |
|---|
| Broadcast storm control | Yes |
|---|
| Spanning tree protocol | Yes |
|---|
| Link aggregation | Yes |
|---|
| VLAN support | Yes |
|---|
| Number of VLANs | 255 |
|---|
Data transmission
| MAC address table | 8000 entries |
|---|
| Switching capacity | 20 Gbit/s |
|---|
| Forwarding rate | 14.88 Mpps |
|---|
| Number of queues | 8 |
|---|
| Jumbo frames support | Yes |
|---|
| Jumbo frames | 9000 |
|---|
| Packet buffer memory | 1.5 MB |
|---|
Security
| Access Control List (ACL) rules | 512 |
|---|
| Queue scheduling algorithms | Weighted Round Robin (WRR) |
|---|
| Security algorithms | 802.1x RADIUS |
|---|
| Loop protection | Yes |
|---|
| DoS attack prevention | Yes |
|---|
Multicast features
| Multicast support | Yes |
|---|
Protocols
| GARP VLAN Registration Protocol (GVRP) | Yes |
|---|
Design
| Rack mounting | Yes |
|---|
| Form factor | 1U |
|---|
| Product colour | White |
|---|
| Reset button | Yes |
|---|
| LED indicators | Yes |
|---|
| Country of origin | China |
|---|
| Certification | UL (UL 62368), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A |
|---|
Performance
| Built-in processor | Yes |
|---|
| Processor frequency | 1.4 MHz |
|---|
| Memory type | DDR4-SDRAM |
|---|
| Internal memory | 1000 MB |
|---|
| Flash memory | 512 MB |
|---|
| Firmware upgradeable | Yes |
|---|
| Mean time between failures (MTBF) | 2171669 h |
|---|
Power
| Power source | AC |
|---|
| AC input voltage | 100 - 240 V |
|---|
| AC input frequency | 50/60 Hz |
|---|
| Power consumption (typical) | 10.65 W |
|---|
| Power plug type | Type C |
|---|
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | No |
|---|
Operational conditions
| Operating temperature (T-T) | -5 - 50 °C |
|---|
| Storage temperature (T-T) | -25 - 70 °C |
|---|
| Operating relative humidity (H-H) | 10 - 90 % |
|---|
| Storage relative humidity (H-H) | 10 - 90 % |
|---|
Weight & dimensions
| Width | 184.912 mm |
|---|
| Depth | 268.224 mm |
|---|
| Height | 43.942 mm |
|---|
| Weight | 1390 g |
|---|
Packaging data
| Package width | 298.958 mm |
|---|
| Package depth | 544.83 mm |
|---|
| Package height | 103.886 mm |
|---|
| Package weight | 2448.98 g |
|---|
