Produktbeskrivning

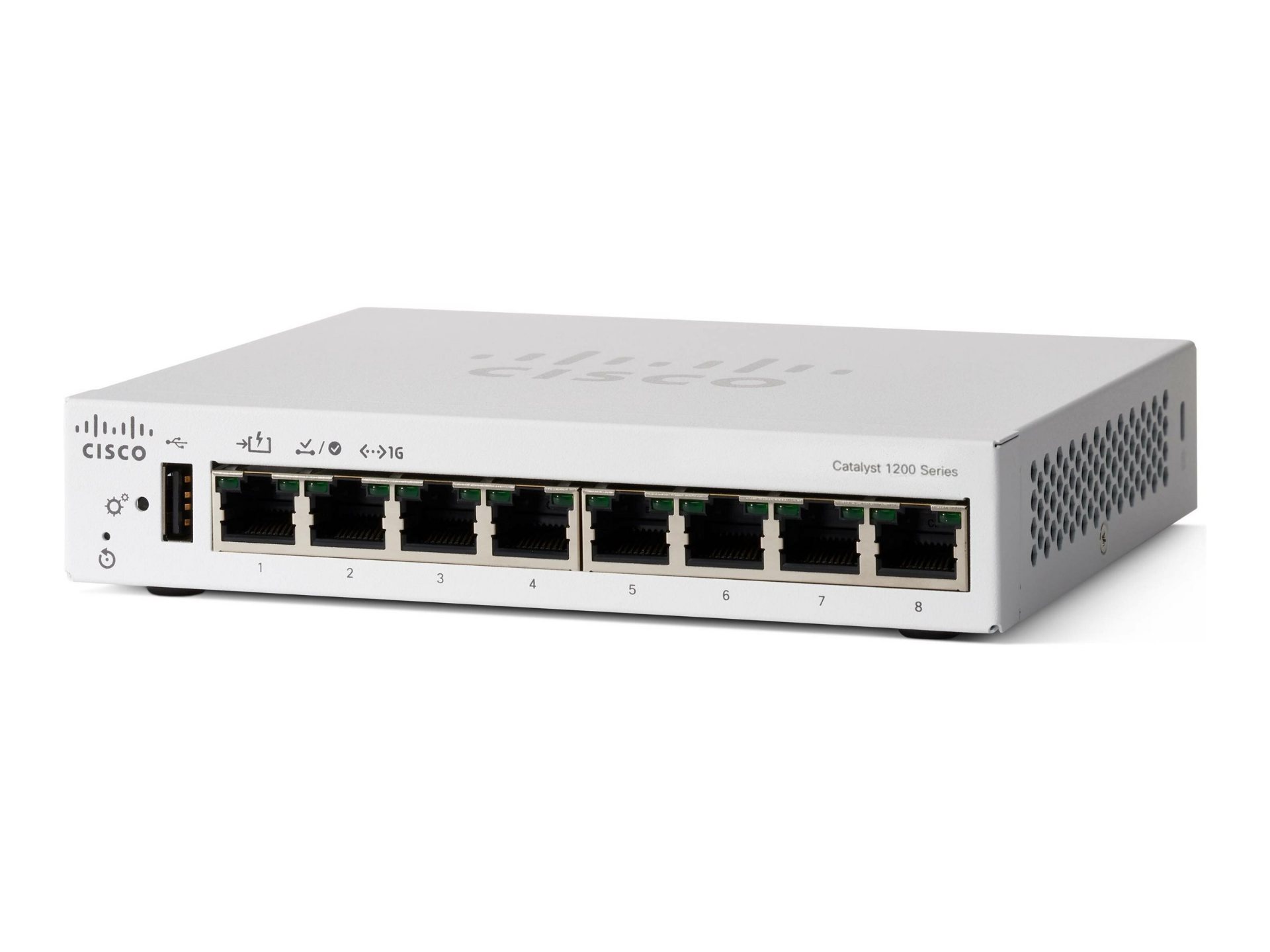

The Cisco Catalyst 1200-8T-D switch is the next generation of affordable, smart switches that combine powerful network performance, security and reliability with a comprehensive suite of network features you need for a solid small business network.



Egenskaper

SWITCH PORTS
8 ports 10/100/1000

SIMPLE
Intuitive Cisco Business mobile app, local web interface and Cisco Business Dashboard allows you to set up, manage and monitor the switch, with step-by-step instructions to install and configure your network in minutes – no IT expertise required

SECURITY
Integrated with IEEE 802.1X port security to control access to your network, denial-of-service (DoS) attack prevention increases network uptime during an attack, while access control lists (ACLs) protect the network from unauthorised users

ENERGY EFFICIENT
Optimises power usage to lower operational cost. Compliant with IEEE 802.3az Energy Efficient Ethernet. Fanless in select models

PERFECT FOR SMALL BUSINESS
Requires no subscription or licences to use, and offers limited lifetime hardware warranty with complimentary 1-year technical support



Innehåll i förpackning

● Switch, power cable or adapter, USB Type C cable and mounting hardware



Teknisk specifikation

Typ av enhet	Switch - 8 portar - L3 - smart
Modell	Skrivbordsmodell
Portar	8 x 10/100/1000
PoE (Power Over Ethernet)	PoE
PoE-budget	67 W
Prestanda	Vidarebefordringshastighet (paket med 64 bytes): 11.90 Mpps Växlingskapacitet: 16 Gbps
Kapacitet	MSTP-instanser: 8 PVST + instanser: 126 RPVST + -instanser: 126 Länkaggregeringsgrupper: 4 Link aggregation ports: 8 Aktiva VLAN: 255 IGMP multicastgrupper: 255 IPv4-routes (statisk): 32 IPv4-gränssnitt: 16 ACL-regler: 512 Prioriteringsköer: 8 Paketets bufferstorlek: 1,5 MB
MAC Address Table Size	8 000 poster
Jumbo Frame-support	9000 byte
Nätverksprotokoll	IGMPv2, IGMP, statisk IP-routing, IGMPv3, MLDv2, MLD, CIDR, MSTP, RSTP, STP, Bounjour
Protokoll för administration på distans	SNMP, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, SCP, ICMP, DHCP, RADIUS, Syslog
Krypteringsalgoritm	SSL
Verifieringsmetod	RADIUS
Funktioner	BOOTP-stöd, VLAN-stöd, IGMP snooping, skydd mot DoS-attacker, portspegling, Stöd för DiffServ, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, SNTP-support, DHCP-server, återställningsknapp, Cable Diagnostics Function, fläktlös, DHCP-relä, Port Security, SNMP-fälla, DHCP-klient, portgruppering, Storm Control, Link Aggregation, IGMP-förfrågningar, VLAN-spegling, DNS-klient, Voice VLAN, VLAN-hantering, LLDP-MED, Guest VLAN, ingresshastighetsbegränsning, STP-loopskydd, EEE (Energy-Efficient Ethernet), TCP-/UDP-proxy, DSCP based CoS, loopbackdetektion, portbaserad VLAN, Telnetserver, Telnet-klient, Unknown Storm Control, IPv4 och IPv6 dubbel bunt, Zero-Touch Deployment, kabellängddetektering, betrodda system, routning i 3 lager, fjärruppgradering av firmware, ACL-stöd, miljövänlig knapp, VLAN med automatisk övervakning, TCP-stockning, chipskydd, startintegritet, tidsbaserad portanvändning, taggbaserade VLAN, WRR-köer, MSTP-stöd, TFTP-stöd, QoS, PVST+, LACP, CoS, SP, GARP, GVRP, ToS, SCP, SCT, SSD, UDP, DoS-skydd, WRR, HoL blockeringsskydd, LAG, CDP, VSDP, RPVST+, DAD, LLDP, EQS, path MTU discovery
Standarder som följs	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az
Processor	X ARM: 1.4 GHz
RAM	1 GB DDR4 SDRAM
Flash-minne	512 MB
Statusindikatorer	System, PoE, länk/aktivitet/hastighet

Gränssnitt	8 x 10/100/1000 Base-T RJ-45 1 x konsol RJ-45

Nätdel	Extern strömadapter
Nätspänning	AC 100-240 V (50 - 60 Hz)

Inkluderade tillbehör	Monteringskit, pekarkort
MTBF (genomsnittstid mellan fel)	3,277,956 timmar
Standarder som följs	Plug and Play, FCC CFR47 Part 15, WEEE, CSA 22.2, RFC1213, RFC1493, RFC1757, RFC2674, RFC768, RFC791, RFC1157, RFC2460, RFC2011, RFC1643, RFC2012, RFC2013, UL 62368, RFC783, RFC792, RFC2863, RFC793, RFC826, RFC854, RFC2131, RFC2132, RFC1907, RFC1215, RFC2233, RFC2665, RFC951, RFC1542, RFC2618, RFC4443, RFC1981, RFC4861, RFC4862, RFC4291, RFC813, RFC879, RFC896, RFC855, RFC856, RFC858, RFC894, RFC919, RFC920, RFC922, RFC950, RFC1042, RFC1071, RFC1123, RFC1141, RFC1155, RFC1286, RFC1350, RFC1442, RFC1451, RFC1533, RFC1541, RFC1573, RFC1624, RFC1700, RFC1867, RFC2030, RFC2576, RFC2616, RFC2666, RFC2737, RFC2819, RFC3164, RFC3176, RFC3411, RFC3412, RFC3413, RFC3414, RFC3415, RFC3416, RFC4330, RFC4007, RFC3484, RFC5214, RFC4293, RFC3595

Bredd	16 cm
Djup	12.8 cm
Höjd	3 cm
Vikt	540 g

Service och support	Begränsad garanti - livstid - svarstid: nästa arbetsdag Tekniskt stöd - retur till fabrik - 1 år

Min temperatur vid drift	0 °C
Max temperatur vid drift	50 °C
Luftfuktighet vid drift	10 - 90% RH (non-condensing)
Min temperatur vid förvaring	-25 °C
Max temperatur vid förvaring	70 °C
Luftfuktighet vid lagring	10 - 90% RH (non-condensing)
