Produktbeskrivning

The Cisco Catalyst 1300 Series Switches are fixed, managed, enterprise-class Gigabit Ethernet Layer 3 switches designed for small and medium-sized business and branch offices. These simple, flexible, and secure switches are ideal for deployment out of the wiring closet. The Catalyst 1300 Series operates on customized Linux OS software, with an intuitive dashboard that simplifies network setup and advanced features that accelerate digital transformation, while pervasive security protects business-critical transactions. The 1300 Series switches provide the ideal combination of affordability and capabilities for small and medium-sized businesses and help you create a more efficient, better-connected workforce. When your business needs advanced networking features and security for the digital transformation, yet value is still a top consideration, you’re ready for the Cisco Catalyst 1300 Series Switches.



Viktiga egenskaper

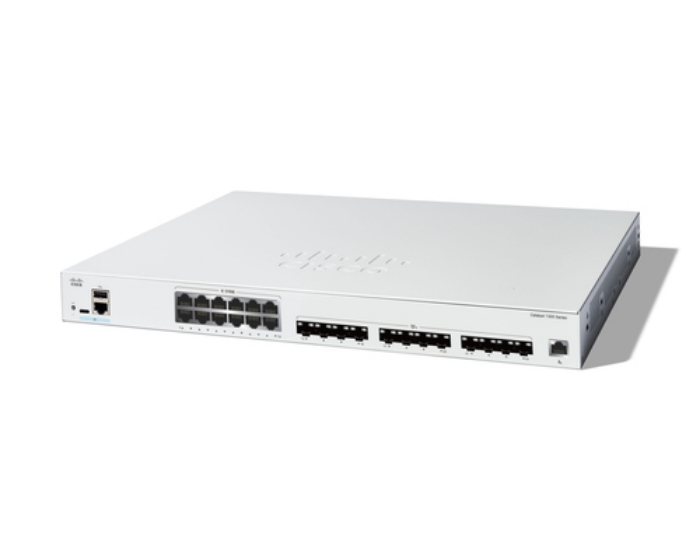

Cisco Catalyst 1300-24XTS Managed Switch, 12 Port 10G Copper, 12x10GE SFP+, Limited Lifetime Protection (C1300-24XTS). Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 12, Console port: RJ-45/USB Type-C. MAC address table: 16000 entries, Switching capacity: 480 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE.... Rack mounting



Teknisk specifikation

Switch type	Managed
Switch layer	L2/L3
Quality of Service (QoS) support	Yes
Web-based management	Yes
Configuring Location Settings (CLI)	Yes
MIB support	Yes

Basic switching RJ-45 Ethernet ports quantity	12
Basic switching RJ-45 Ethernet ports type	10G Ethernet (100/1000/10000)
SFP+ module slots quantity	12
Console port	RJ-45/USB Type-C

Networking standards	IEEE 802.1D,IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3ae,IEEE 802.3af,IEEE 802.3an,IEEE 802.3at,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
Cable types supported	Cat5e
Port mirroring	Yes
Policy-based routing	Yes
Link aggregation	Yes
Head-of-line (HOL) blocking	Yes
Spanning tree protocol	Yes
Broadcast storm control	Yes
Rate limiting	Yes
QinQ implementation	Selective QinQ
VLAN support	Yes
Virtual LAN features	Private VLAN,Voice VLAN

MAC address table	16000 entries
Switching capacity	480 Gbit/s
Number of queues	8
Static route	Yes
Number of static routes	990
Jumbo frames support	Yes
Jumbo frames	9000
Packet buffer memory	8 MB

DHCP features	DHCP auto-config,DHCP client,DHCP relay,DHCP server,DHCP snooping
Access Control List (ACL)	Yes
Access Control List (ACL) rules	1024
IGMP snooping	Yes
IGMP proxy	Yes
DoS attack prevention	Yes
SSH/SSL support	Yes
Authentication type	RADIUS,TACACS+
Queue scheduling algorithms	Weighted Round Robin (WRR)
Authentication	MAC-based authentication,Web-based authentication
Security algorithms	HTTPS,SNMP,SNMPv2,SNMPv3,SSH,SSH-2

Multicast support	Yes

GARP VLAN Registration Protocol (GVRP)	Yes
IPv4 & IPv6 features	ICMPv6,IPv6 SNMP,IPv6 SSH,IPv6 TFTP,IPv6 Telnet

Rack mounting	Yes
Product colour	Grey
Reset button	Yes
Country of origin	China
Certification	UL (UL 62368), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A

Built-in processor	Yes
Processor frequency	1.4 MHz
Memory type	DDR4-SDRAM
Internal memory	1000 MB
Flash memory	512 MB
Plug and Play	Yes
Noise level	39 dB
Mean time between failures (MTBF)	427188 h

Power source	AC
AC input voltage	100 - 220 V
AC input frequency	50/60 Hz
Power consumption (typical)	88.2 W
Power plug type	Type C

Operating temperature (T-T)	-5 - 50 °C
Storage temperature (T-T)	-25 - 70 °C
Operating relative humidity (H-H)	10 - 90 %
Storage relative humidity (H-H)	10 - 90 %
Heat dissipation	300.76 BTU/h

Width	445 mm
Depth	273 mm
Height	44 mm
Weight	4200 g

Package width	430.032 mm
Package depth	574.696 mm
Package height	105.918 mm
Package weight	5600 g
