Produktbeskrivning

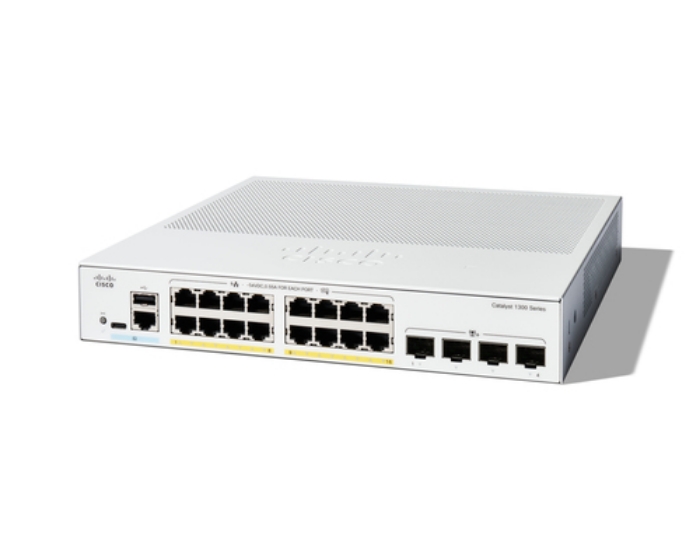

The Cisco Catalyst 1300-16P-4X switch is part of the fully managed switch line that delivers reliable and secure connectivity for small business networks. These switches accelerate your digital transformation by delivering full Layer 2/3 capabilities, an intuitive web dashboard, advanced networking features and PoE+ support.
Viktiga egenskaper
Cisco Catalyst 1300-16P-4X Managed Switch, 16 Port GE, PoE, 4x10GE SFP+, Limited Lifetime Protection (C1300-16P-4X). Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16, Installed SFP+ modules quantity: 4. Networking standards: IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ad, IEEE...
Teknisk specifikation
Management features
| Switch type | Managed |
|---|
| Switch layer | L2/L3 |
|---|
| Quality of Service (QoS) support | Yes |
|---|
| Web-based management | Yes |
|---|
| ARP inspection | Yes |
|---|
| Configuring Location Settings (CLI) | Yes |
|---|
| MIB support | Yes |
|---|
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 16 |
|---|
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
|---|
| Installed SFP modules quantity | 0 |
|---|
| Installed SFP+ modules quantity | 4 |
|---|
Network
| Networking standards | IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1ad,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ad,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z |
|---|
| Port mirroring | Yes |
|---|
| Spanning tree protocol | Yes |
|---|
| Ethernet LAN data rates | 1000 Mbit/s |
|---|
| Broadcast storm control | Yes |
|---|
| Flow control support | Yes |
|---|
| Head-of-line (HOL) blocking | Yes |
|---|
| VLAN support | Yes |
|---|
Data transmission
| Static route | Yes |
|---|
| Jumbo frames support | Yes |
|---|
| Jumbo frames | 9000 |
|---|
Security
| Access Control List (ACL) | Yes |
|---|
| IGMP snooping | Yes |
|---|
| SSH/SSL support | Yes |
|---|
| MAC address filtering | Yes |
|---|
| Security algorithms | HTTPS,SSH,SSL/TLS |
|---|
Multicast features
| Multicast support | Yes |
|---|
Design
| Product colour | White |
|---|
| Housing material | Metal |
|---|
| Reset button | Yes |
|---|
| LED indicators | Yes |
|---|
| Country of origin | China |
|---|
Performance
| Processor frequency | 1400 MHz |
|---|
| Internal memory | 1024 MB |
|---|
| Flash memory | 512 MB |
|---|
Power
| Power source | AC |
|---|
| Power supply included | Yes |
|---|
| Power plug type | Type C |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 50 °C |
|---|
| Storage temperature (T-T) | -25 - 70 °C |
|---|
| Operating relative humidity (H-H) | 10 - 90 % |
|---|
| Storage relative humidity (H-H) | 10 - 90 % |
|---|
Weight & dimensions
| Width | 296.926 mm |
|---|
| Depth | 268.224 mm |
|---|
| Height | 43.942 mm |
|---|
Packaging data
| Package width | 414.02 mm |
|---|
| Package depth | 399.034 mm |
|---|
| Package height | 107.95 mm |
|---|
| Package weight | 4272.11 g |
|---|
