Produktbeskrivning

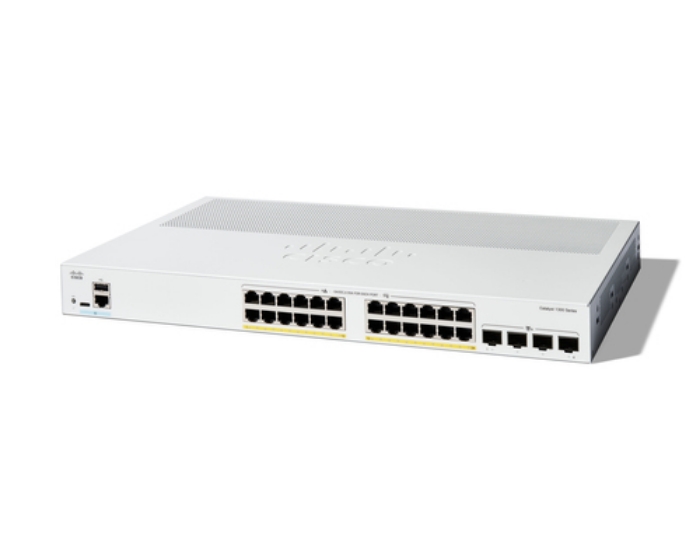

The Cisco Catalyst 1300-24T-4X switch is part of the fully managed switch line that delivers reliable and secure connectivity for small business networks. These switches accelerate your digital transformation by delivering full Layer 2/3 capabilities, an intuitive web dashboard, advanced networking features and PoE+ support.
Viktiga egenskaper
Cisco Catalyst 1300-24P-4X Managed Switch, 24 Port GE, PoE, 4x10GE SFP+, Limited Lifetime Protection (C1300-24P-4X). Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, Console port: RJ-45/USB Type-C. MAC address table: 16000 entries, Switching capacity: 128 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE.... Power over Ethernet (PoE). Rack mounting
Teknisk specifikation
Management features
| Switch type | Managed |
|---|
| Switch layer | L2/L3 |
|---|
| Quality of Service (QoS) support | Yes |
|---|
| Web-based management | Yes |
|---|
| Configuring Location Settings (CLI) | Yes |
|---|
| MIB support | Yes |
|---|
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 24 |
|---|
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
|---|
| Installed SFP modules quantity | 0 |
|---|
| Installed SFP+ modules quantity | 0 |
|---|
| SFP+ module slots quantity | 4 |
|---|
| Console port | RJ-45/USB Type-C |
|---|
Network
| Networking standards | IEEE 802.1D,IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3ae,IEEE 802.3af,IEEE 802.3an,IEEE 802.3at,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z |
|---|
| Cable types supported | Cat5e |
|---|
| Port mirroring | Yes |
|---|
| Policy-based routing | Yes |
|---|
| Head-of-line (HOL) blocking | Yes |
|---|
| Rate limiting | Yes |
|---|
| Broadcast storm control | Yes |
|---|
| Spanning tree protocol | Yes |
|---|
| Link aggregation | Yes |
|---|
| QinQ implementation | Selective QinQ |
|---|
| VLAN support | Yes |
|---|
| Virtual LAN features | Private VLAN,Voice VLAN |
|---|
Data transmission
| MAC address table | 16000 entries |
|---|
| Switching capacity | 128 Gbit/s |
|---|
| Number of queues | 8 |
|---|
| Static route | Yes |
|---|
| Number of static routes | 990 |
|---|
| Jumbo frames support | Yes |
|---|
| Jumbo frames | 9000 |
|---|
| Packet buffer memory | 1.5 MB |
|---|
Security
| DHCP features | DHCP auto-config,DHCP client,DHCP relay,DHCP server,DHCP snooping |
|---|
| Access Control List (ACL) | Yes |
|---|
| Access Control List (ACL) rules | 1024 |
|---|
| IGMP snooping | Yes |
|---|
| IGMP proxy | Yes |
|---|
| SSH/SSL support | Yes |
|---|
| DoS attack prevention | Yes |
|---|
| Queue scheduling algorithms | Weighted Round Robin (WRR) |
|---|
| Security algorithms | HTTPS,SNMP,SNMPv2,SNMPv3,SSH,SSH-2 |
|---|
| Authentication | MAC-based authentication,Web-based authentication |
|---|
| Authentication type | RADIUS,TACACS+ |
|---|
Multicast features
| Multicast support | Yes |
|---|
Protocols
| GARP VLAN Registration Protocol (GVRP) | Yes |
|---|
| IPv4 & IPv6 features | ICMPv6,IPv6 SNMP,IPv6 SSH,IPv6 TFTP,IPv6 Telnet |
|---|
Design
| Rack mounting | Yes |
|---|
| Product colour | Grey |
|---|
| Reset button | Yes |
|---|
| Country of origin | China |
|---|
| Certification | UL (UL 62368), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A |
|---|
Performance
| Built-in processor | Yes |
|---|
| Processor frequency | 1.4 MHz |
|---|
| Memory type | DDR4-SDRAM |
|---|
| Internal memory | 1000 MB |
|---|
| Flash memory | 512 MB |
|---|
| Plug and Play | Yes |
|---|
| Mean time between failures (MTBF) | 698220 h |
|---|
Power
| Power source | AC |
|---|
| AC input voltage | 100 - 220 V |
|---|
| AC input frequency | 50/60 Hz |
|---|
| Power consumption (typical) | 31.8 W |
|---|
| Power plug type | Type C |
|---|
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | Yes |
|---|
| Power over Ethernet (PoE) ports quantity | 24 |
|---|
| Total Power over Ethernet (PoE) budget | 195 W |
|---|
Operational conditions
| Operating temperature (T-T) | -5 - 50 °C |
|---|
| Storage temperature (T-T) | -25 - 70 °C |
|---|
| Operating relative humidity (H-H) | 10 - 90 % |
|---|
| Storage relative humidity (H-H) | 10 - 90 % |
|---|
| Heat dissipation | 804.1 BTU/h |
|---|
Weight & dimensions
| Width | 298.704 mm |
|---|
| Depth | 444.5 mm |
|---|
| Height | 43.942 mm |
|---|
| Weight | 3680 g |
|---|
Packaging data
| Package width | 430.022 mm |
|---|
| Package depth | 575.056 mm |
|---|
| Package height | 105.918 mm |
|---|
| Package weight | 5986.39 g |
|---|
