Produktbeskrivning

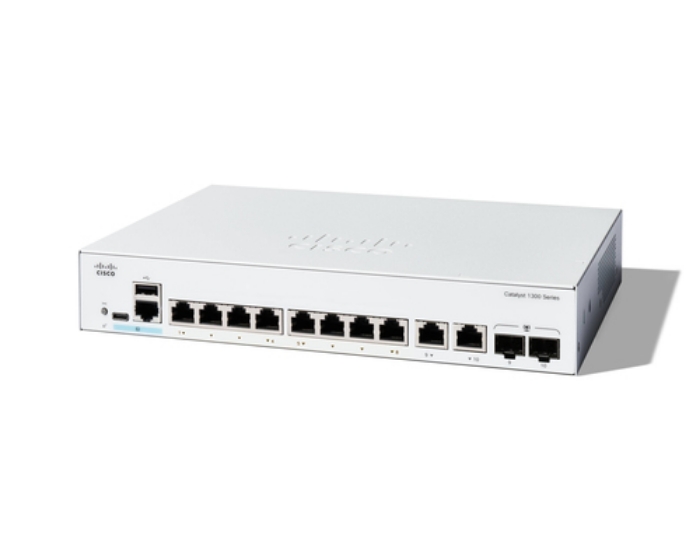

The Cisco Catalyst 1300-8T-E-2G switch is part of the fully managed switch line that delivers reliable and secure connectivity for small business networks. These switches accelerate your digital transformation by delivering full Layer 2/3 capabilities, an intuitive web dashboard, advanced networking features and PoE+ support.
Viktiga egenskaper
Cisco Catalyst 1300-8T-E-2G Managed Switch, 8 Port GE, Ext PS, 2x1GE Combo, Limited Lifetime Protection (C1300-8T-E-2G). Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8, Console port: RJ-45/USB Type-C. MAC address table: 16000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE.... Rack mounting
Teknisk specifikation
Management features
| Switch type | Managed |
|---|
| Switch layer | L2 |
|---|
| Quality of Service (QoS) support | Yes |
|---|
| Web-based management | Yes |
|---|
| Configuring Location Settings (CLI) | Yes |
|---|
| MIB support | Yes |
|---|
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 8 |
|---|
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
|---|
| Installed SFP modules quantity | 0 |
|---|
| Installed SFP+ modules quantity | 0 |
|---|
| Combo SFP ports quantity | 2 |
|---|
| Console port | RJ-45/USB Type-C |
|---|
Network
| Networking standards | IEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z |
|---|
| Port mirroring | Yes |
|---|
| Spanning tree protocol | Yes |
|---|
| Link aggregation | Yes |
|---|
| Broadcast storm control | Yes |
|---|
| VLAN support | Yes |
|---|
| Number of VLANs | 4093 |
|---|
Data transmission
| MAC address table | 16000 entries |
|---|
| Switching capacity | 20 Gbit/s |
|---|
| Forwarding rate | 14.88 Mpps |
|---|
| Static route | Yes |
|---|
| Number of static routes | 990 |
|---|
| Jumbo frames support | Yes |
|---|
| Jumbo frames | 9000 |
|---|
| Packet buffer memory | 1.5 MB |
|---|
Security
| DHCP features | DHCP Option 82,DHCP client,DHCP server |
|---|
| Access Control List (ACL) | Yes |
|---|
| IGMP snooping | Yes |
|---|
| IGMP entries | 2000 |
|---|
| SSH/SSL support | Yes |
|---|
| Loop protection | Yes |
|---|
| Authentication | MAC-based authentication,Web-based authentication |
|---|
| Authentication type | RADIUS |
|---|
Multicast features
| Multicast support | Yes |
|---|
Design
| Rack mounting | Yes |
|---|
| Product colour | Grey |
|---|
| LED indicators | Yes |
|---|
| Country of origin | China |
|---|
Performance
| Mean time between failures (MTBF) | 2171669 h |
|---|
Power
| Power source | AC |
|---|
| AC input voltage | 110 - 220 V |
|---|
| AC input frequency | 50/60 Hz |
|---|
| Power consumption (max) | 12.56 W |
|---|
| Power plug type | Type C |
|---|
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | No |
|---|
Operational conditions
| Operating temperature (T-T) | -5 - 50 °C |
|---|
| Storage temperature (T-T) | -25 - 70 °C |
|---|
| Operating relative humidity (H-H) | 10 - 90 % |
|---|
| Storage relative humidity (H-H) | 10 - 90 % |
|---|
| Heat dissipation | 42.86 BTU/h |
|---|
Weight & dimensions
| Width | 184.912 mm |
|---|
| Depth | 268.224 mm |
|---|
| Height | 43.942 mm |
|---|
| Weight | 1390 g |
|---|
Packaging data
| Package width | 298.958 mm |
|---|
| Package depth | 544.83 mm |
|---|
| Package height | 103.886 mm |
|---|
| Package weight | 2467.12 g |
|---|
