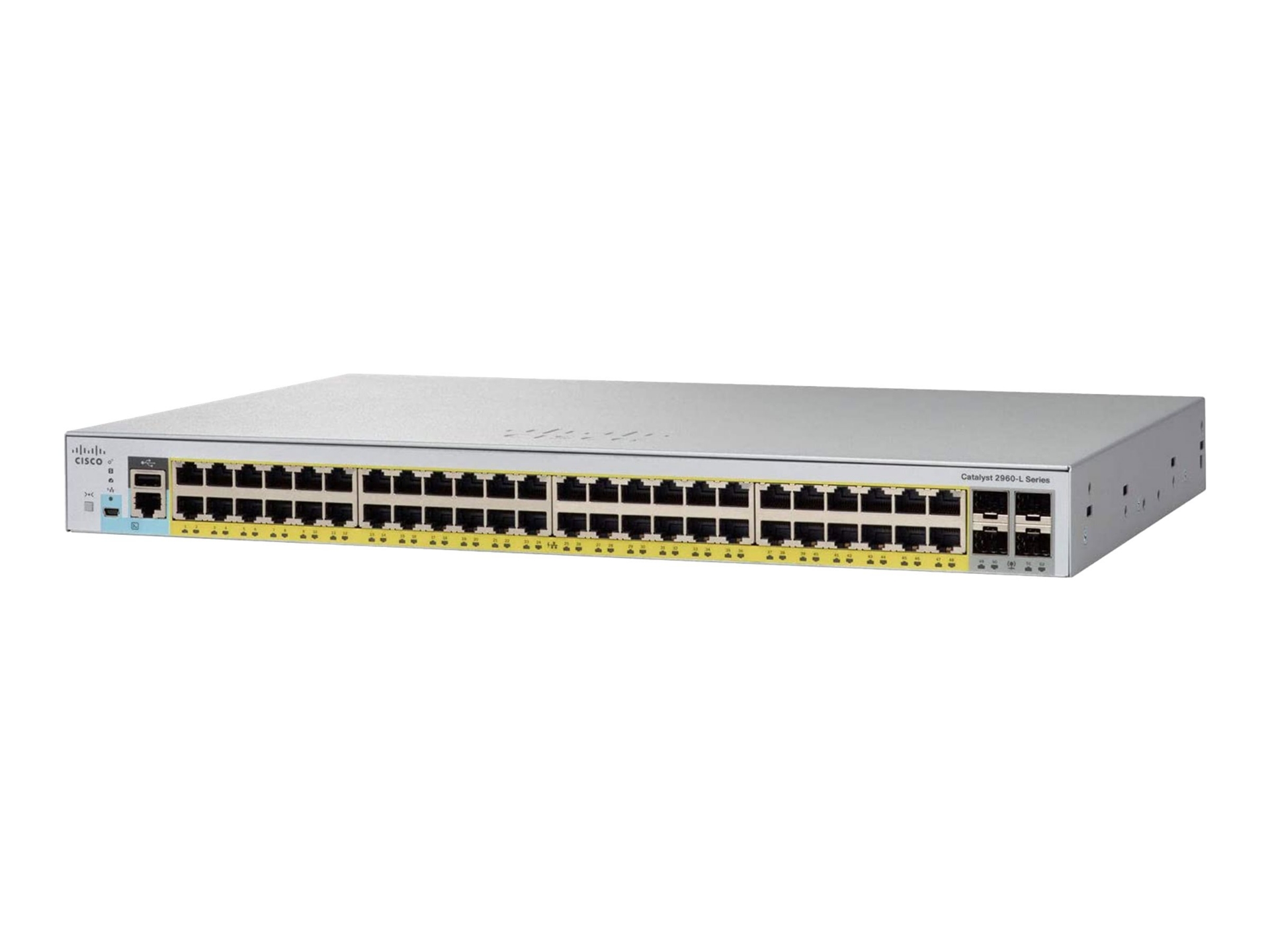

The Cisco Catalyst 2960L-SM-48TQ Network Switch is an enterprise-class, fixed Gigabit Ethernet switch designed for small and medium-sized businesses. This secure network switch is ideal for critical IoT (Internet of Things) deployments. It operates on Cisco IOS Software and supports simple device management using only a simple yet powerful web UI.
Manage the switch via the Cisco IOS CLI (command-line interface) and/or intuitive web UI
802.1X support for connected devices, Switched Port Analyser (SPAN) and Bridge Protocol Data Unit (BPDU) Guard
Allmänt
| Typ av enhet | Switch - 48 portar - L3 - smart - staplingsbar |
|---|
| Modell | Rackmonterbar |
|---|
| Undertyp | Gigabit Ethernet |
|---|
| Portar | 48 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+ |
|---|
| PoE (Power Over Ethernet) | PoE+ |
|---|
| PoE-budget | 370 W |
|---|
| Prestanda | Vidarekopplingsbandbredd: 88 Gbps
Switchningsbandbredd: 176 Gbps
Vidarebefordringsfrekvens: 77.38 Mpps |
|---|
| Kapacitet | Utgångsportköer: upp till 8
IPv4-routes (statisk): 16
IPv6-routes (statisk): 16
IPv6-grupper (Multicast): 1024
Aktiva VLAN: 256
VLAN ID:n: 4094
STP-instanser: 64
SPAN-sessioner: 4
Maximal överföringsenhet (MTU) (bytes): 9198 byten |
|---|
| Jumbo Frame-support | 10.240 byte |
|---|
| Nätverksprotokoll | RIP, IGMP, MLDv2, MLD |
|---|
| Protokoll för administration på distans | RMON 1, RMON 2, SNMP, SNMP 3, SNMP 2c, TFTP, SSH, SSH-2, CLI, NTP |
|---|
| Verifieringsmetod | Kerberos, RADIUS, TACACS+, WebAuth |
|---|
| Funktioner | DHCP-stöd, auto-negotiation, IGMP snooping, Multicast Storm Control, Unicast Storm Control, stöd för MSTP (Multiple Spanning Tree Protocol), stöd för dynamiskt trunkingprotokoll (DTP), stöd för portaggregeringsprotokoll (PAgP), Cisco EnergyWise-teknik, Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), fläktlös, Shaped Round Robin (SRR), LACP (Link Aggregation Control Protocol), MAC Address Notification, statisk routing, Class of Service (CoS), stöd för DiffServ Code Point (DSCP), IP-källskydd, Weighted Tail Drop (WTD), VLAN Trunking Protocol (VTP), Bridge protocol data unit (BPDU), Spanning-tree Root Guard (STRG), Authentication, Authorization and Accounting (AAA), Voice VLAN, proxy ARP, EEE (Energy-Efficient Ethernet), Switched Port Analyzer (SPAN), Enhanced QoS, BPDU Guard, Rapid Reconfiguration of Spanning Tree (RSTP) |
|---|
| Standarder som följs | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, Bluetooth 4.0, IEEE 802.1AX |
|---|
| Processor | ARM7: 800 MHz |
|---|
| RAM | 512 MB |
|---|
| Flash-minne | 256 MB |
|---|
| Statusindikatorer | Portstatus, duplex-läge för port, system, PoE, länk/hastighet |
|---|
Diverse
| Medföljande kablar | 2 x konsolkabel - 1.83 cm |
|---|
| Standarder som följs | Plug and Play, CISPR 22 klass A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, ICES-003 klass A, EN 61000-4-5, RoHS, UL 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, Directive 2011/65/EU, VCCI Class A, KN24, KN22 Class A, EN 55022 Class A, FCC CFR47 Part 15 A, CNS 13438 Class A, CAN/CSA C22.2 No. 60950-1 Second Edition, EN 300 386, USGv6, AS/NZS CISPR22 Class A |
|---|
