Produktbeskrivning

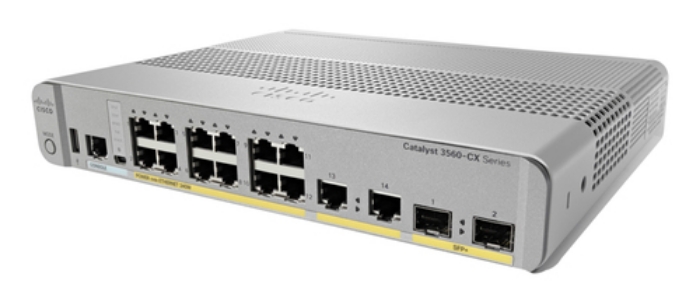

The Cisco Catalyst 3560CX-12PD-S Network Switch is ideal for high-speed data connectivity, Wi-Fi backhaul and PoE+ connectivity in places where space is at a premium. Featuring a compact design and quiet, fanless operation, this managed switch can come out of the server room and be placed closer to users, meaning shorter cable runs and greater flexibility for your network deployment.



Viktiga egenskaper

Cisco Catalyst 3560CX-12PD-S Network Switch, 12 Gigabit Ethernet Ports, 12 PoE+ Outputs, 240W PoE Budget, two 10 G SFP+ and two 1 G Copper Uplinks, Enhanced Limited Lifetime Warranty (WS-C3560CX-12PD-S). Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 12. Full duplex. Switching capacity: 68 Gbit/s. Networking standards: IEEE 802.11ac, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE.... Power over Ethernet (PoE). Wall mountable, Rack mounting



Teknisk specifikation

Switch type	Managed
Quality of Service (QoS) support	Yes
ARP inspection	Yes

Basic switching RJ-45 Ethernet ports quantity	12
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	2
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
SFP+ module slots quantity	2

Networking standards	IEEE 802.11ac,IEEE 802.1D,IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3ah,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
10G support	Yes
Copper ethernet cabling technology	10BASE-T,100BASE-TX,1000BASE-T
Port mirroring	Yes
Full duplex	Yes
IP routing	Yes
Spanning tree protocol	Yes
VLAN support	Yes
Number of VLANs	4000

Fiber ethernet cabling technology	100BASE-BX,100BASE-FX,100BASE-LX,1000BASE-X,1000BASE‑BX,1000BASE‑LH,1000BASE‑SX,1000BASE‑ZX
Fiber type	Multi-mode

Switching capacity	68 Gbit/s
Forwarding rate	50.6 Mpps
Jumbo frames support	Yes
Jumbo frames	9198

DHCP features	DHCP server,DHCP snooping,DHCP client
Access Control List (ACL)	Yes
IGMP snooping	Yes
SSH/SSL support	Yes
Static port security	Yes
Authentication	MAC-based authentication
Security algorithms	802.1x RADIUS,SNMP

Multicast support	Yes

Rack mounting	Yes
Product colour	White
Market segment	Business
DIN rail mounting	Yes
Wall mountable	Yes
Country of origin	China
Safety	UL 60950-1, CAN/CSA 22.2 No. 60950-1, EN 60950-1, IEC 60950-1, CE, GB 4943, IEC 60825
Electromagnetic compatibility	FCC 15, CFR 47, EN 55022 (CISPR22), EN 55024 (CISPR24), CE, AS/NZS, A, CISPR22:2004, EN55022, VCCI A, V-3/2007.04, KCC (MIC, GB17625.1-1998) A, KN24/KN22, ANATEL, CCC, GOST

Internal memory	512 MB
Flash memory	128 MB
Mean time between failures (MTBF)	528480 h

Products per shipping (inner) case	1 pc(s)

AC input voltage	100 - 240 V
Input current	1.5 - 3.25 A
Power consumption (typical)	29.5 W
Power consumption (max)	278 W
Power plug type	Type C

Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	12
Total Power over Ethernet (PoE) budget	240 W

Operating temperature (T-T)	-5 - 45 °C
Storage temperature (T-T)	-25 - 70 °C
Operating relative humidity (H-H)	5 - 95 %
Storage relative humidity (H-H)	5 - 95 %
Operating altitude	0 - 3048 m
Non-operating altitude	0 - 4000 m
Heat dissipation	1057.71 BTU/h

Width	269 mm
Depth	238 mm
Height	44.4 mm
Weight	2310 g

Package width	327.66 mm
Package depth	349.25 mm
Package height	160.274 mm
Package weight	2312.93 g

Quantity per pack	1 pc(s)
Harmonized System (HS) code	85176990
Products per master (outer) case	1 pc(s)
