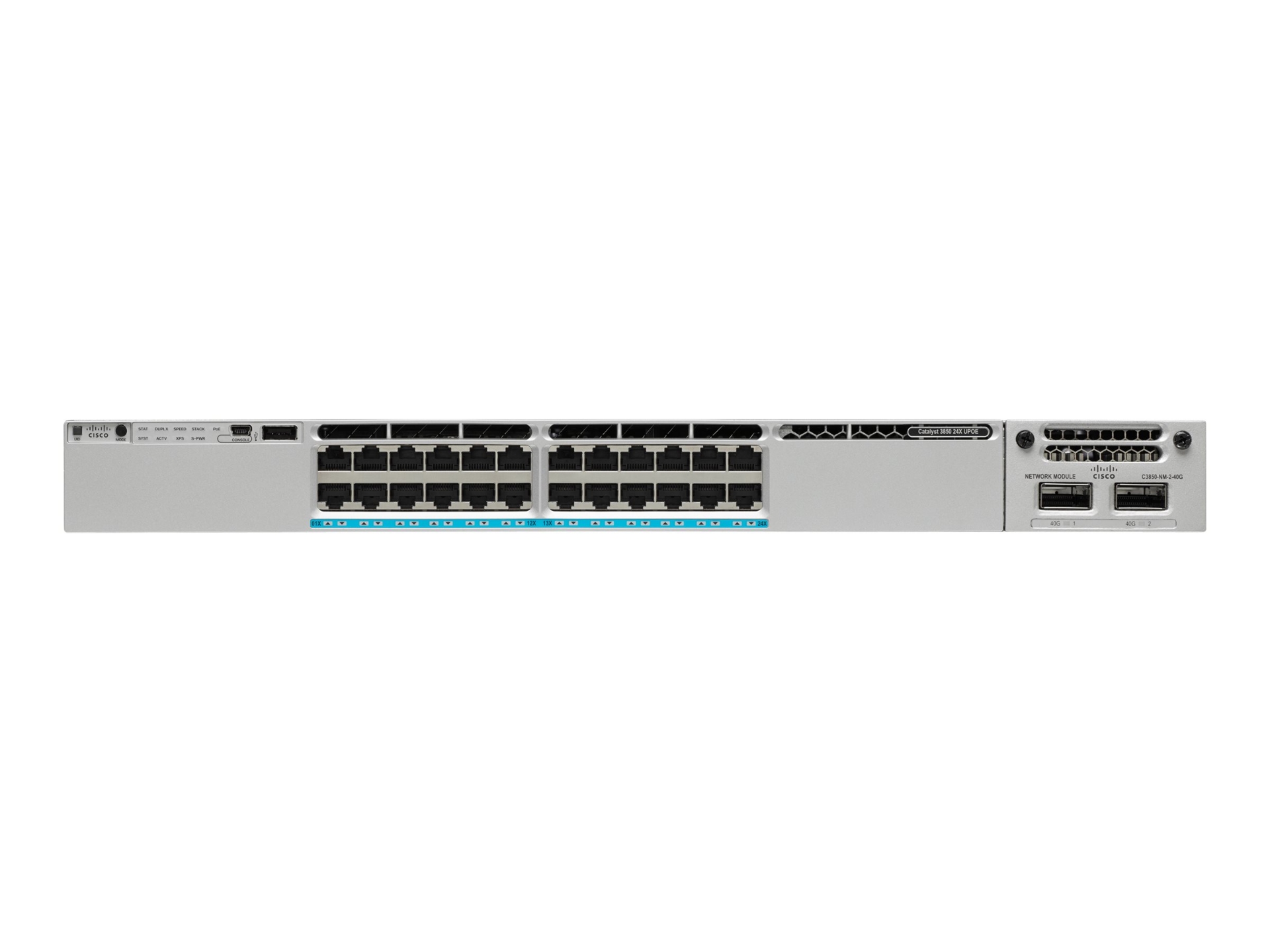

Get an access switch that gets you ready for 802.11ac Wave 2 and other new technologies that are here today, or coming at you tomorrow. Stackable Catalyst 3850 Series multigigabit network switches give you wired and wireless together so you can scale up and protect your investments.
Allmänt
| Typ av enhet | Switch - 24 portar - Administrerad - staplingsbar |
|---|
| Modell | Skrivbordsmodell, rackmonterbar 1U |
|---|
| Undertyp | 10 Gigabit Ethernet |
|---|
| Portar | 24 x 1/2.5/5/10GBase-T (UPOE) |
|---|
| PoE (Power Over Ethernet) | UPOE |
|---|
| PoE-budget | 580 W |
|---|
| Prestanda | Växlingskapacitet: 640 Gbps
Stackningsbandbredd: 480 Gbps
Vidarebefordringsfrekvens: 500 Mbps |
|---|
| Kapacitet | IPv4-routes: 24000
NetFlow-poster: 48000
VLAN ID:n: 4000
Switchade virturlla gränssnitt (SVIs): 1000 |
|---|
| MAC Address Table Size | 32 000 poster |
|---|
| Jumbo Frame-support | 9198 byte |
|---|
| Nätverksprotokoll | OSPF, BGP-4, IS-IS, RIP-1, RIP-2, EIGRP, IGMPv2, IGMP, PIM-SM, PIM-DM, IGMPv3, EIGRP for IPv6, OSPFv3, PIM-SSM, PBR (policy-based routing), RIPng, MLDv2, MLD, URPF, MSTP |
|---|
| Protokoll för administration på distans | SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, TFTP, SSH, CLI, NTP |
|---|
| Krypteringsalgoritm | 128-bitars AES, 256 bitars AES, DTLS |
|---|
| Verifieringsmetod | Kerberos, Secure Shell (SSH), RADIUS, TACACS+ |
|---|
| Funktioner | ARP-stöd, Intrusion Detection System (IDS), stöd för IPv6, DHCP-snooping, stöd för dynamiskt trunkingprotokoll (DTP), stöd för portaggregeringsprotokoll (PAgP), stöd för ACL (Access Control List), Quality of Service (QoS), Virtual Route Forwarding-Lite (VRF-Lite), Dynamic ARP Inspection (DAI), Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), IPv4-support, Shaped Round Robin (SRR), LACP (Link Aggregation Control Protocol), Remote Switch Port Analyzer (RSPAN), Management Information Base (MIB), Wireless Intrusion Prevention System (WIPS), Class of Service (CoS), Cisco StackWise-480-teknik, Cisco StackPower-teknik, Flexible NetFlow (FNF), 802.1x-autentisering, stöd för DiffServ Code Point (DSCP), radioresurshantering (RRM), IP-källskydd, Weighted Tail Drop (WTD), Bridge protocol data unit (BPDU), Control plane protection (CoPP), Spanning-tree Root Guard (STRG), RA-skydd, EEE (Energy-Efficient Ethernet), Embedded Event Manager (EEM), Protocol Independent Multicast (PIM), VLAN Trunking Protocol (VTP) v.3, MQC, Audio Video Bridging (AVB), OBFL, bekräftad informationshastighet (CIR), Media Access Control Security (MACsec) |
|---|
| Standarder som följs | IEEE 802.3, IEEE 802.3u, IEEE 802.11, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ae, IEEE 802.1as, IEEE 802.3at, IEEE 802.1Qat, IEEE 802.1Qav, IEEE 802.1BA, IEEE 802.3bz |
|---|
| RAM | 4 GB |
|---|
| Flash-minne | 2 GB |
|---|
| Statusindikatorer | Status |
|---|
