Produktbeskrivning

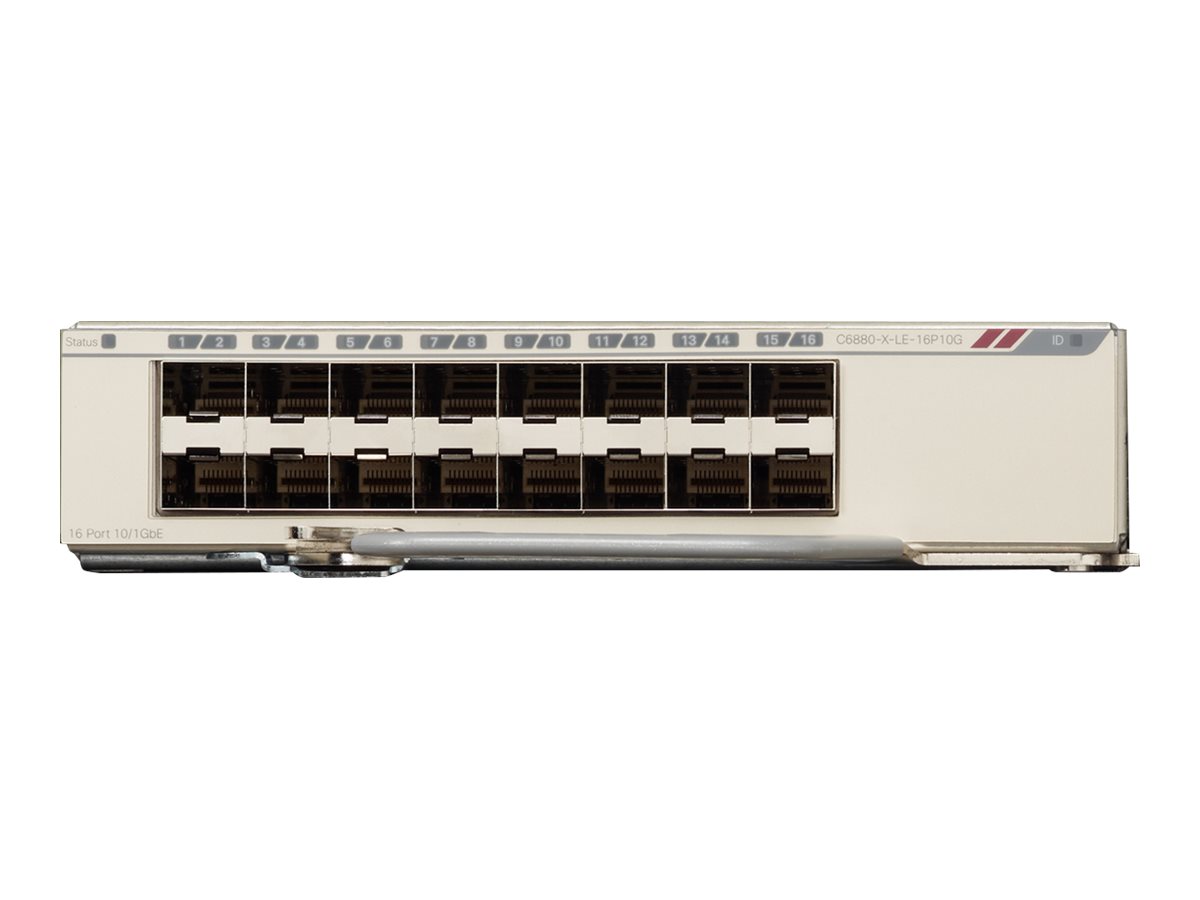

The Cisco Catalyst 6880-X provides flexibility to build desired port density through two versions of base chassis along with optional port cards. The base chassis comes with 16 10G/1G ports. Each system can be built up to 80 ports in 16-port increments. The port interface on the base module and the port cards supports both 10 Gigabit Ethernet and 1 Gigabit Ethernet speeds allowing customers to use their investment in 1 Gigabit Ethernet SFP and upgrade to 10 Gigabit Ethernet SFP+ when business demands change, without having to do a comprehensive upgrade of the existing deployment. The port cards are hot swappable.
Egenskaper
Platform scalabilityThe platform supports up to 220Gbps slot capacity per port-card. It supports up to 2Tbps of switching capacity, which doubles up to 4Tbps with VSS technology.
SecuritySupport for Cisco TrustSec (CTS), to provide IEEE 802.1AE MACsec encryption and role-based ACL, CoPP to prevent DoS attacks and Cisco ISE to safeguard and manage end-to-end security for the enterprise.
VirtualizationComprehensive suite of Virtualization features including L2/L3 VPN, full MPLS, EVN, VRF aware applications for NAT Netflow, GRE for v4/v6, L2 extensions with VPLS etc. to segment different user groups and serve unique security/QoS policy requirements of each of these diverse user groups.
Application visibility and control (AVC)Supports enhanced application monitoring such as Flexible and Sampled NetFlow for intelligent and scalable application monitoring.
Smart operationsThe Cisco Catalyst 6880-X supports Catalyst Instant Access*, which allows an Instant Access Client to act as a remote line card of the Cisco Catalyst 6880-X, as well as Smart Install Director, which provides zero-touch deployment of access switches.
High availabilityTwo Cisco Catalyst 6880-X Series Switches can be combined into a VSS. In addition to high-availability VSS, provides ease of operation by providing a single point of management, eliminating the need for First Hop Routing Protocol (FHRP) and removing the reliance on Spanning Tree Protocol (STP) for link failure restoration.
Teknisk specifikation
Allmänt
Typ av enhet | Expansionsmodul |
Formfaktor | Insticksmodul |
Nätverk
Portar | 10 Gigabit SFP+ x 16 |
Anslutningsteknik | Kabelansluten |
Typ av kablage | Ethernet 10GBase-X |
Datalänkprotokoll | 10 Gigabit Ethernet |
Dataöverföringshastighet | 10 Gbps |
Kapacitet | IPv4-routes: 256000 IPv6-routes: 128000 ACL-poster: 64000 NetFlow-poster: 512000 IPv4-routes (Multicast): 128000 IPv6-routes (Multicast): 128000 |
Expansion/Anslutning
Gränssnitt | 16 x 10GBase-X - SFP+ |
Kompatibilitetsinformation
Designat för | Cisco Catalyst 6880-X-Chassis (Standard Tables) |
