Produktbeskrivning

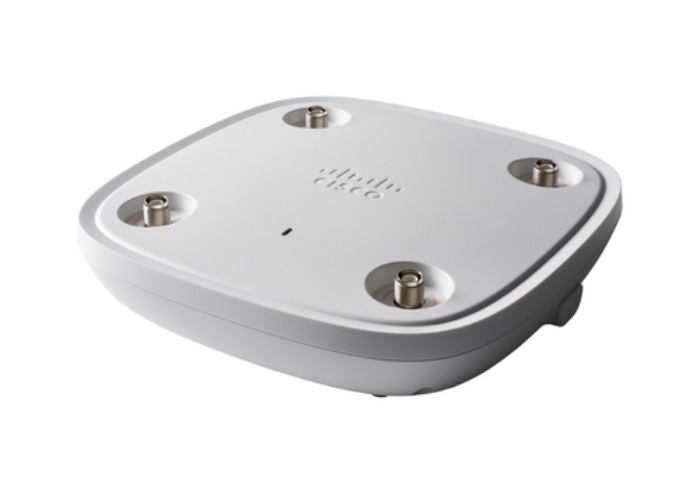

The Catalyst 9120 Access Points are designed for mission-critical deployments with dual 5-GHz and integrated IoT radio. With CleanAir technology powered by Cisco RF ASIC, the C9120 access point goes beyond the Wi-Fi 6 (802.11ax) standard, providing radio-frequency excellence for high-density environments. These access points are resilient and intelligent while providing integrated security for mobile and IoT devices. Pairing with Cisco DNA, it further offers real-time analytics, quickly detect and contain security threats, and a network-wide consistency through automation and virtualisation.
Viktiga egenskaper
Cisco Catalyst 9120AXE-E Wireless Access Point, Wi-Fi 6, 4x4 Dual 5GHz Radio, MU-MIMO, CleanAir with RF ASIC, PoE, External antenna, (C9120AXE-E). 2.4 GHz, 5 GHz, Maximum data transfer rate: 5000 Mbit/s. Security algorithms: AES, EAP, EAP-GTC, EAP-SIM, MSCHAPv2, TLS, TTLS, WPA, WPA2, WPA3. Ethernet LAN data rates: 100,1000,2500,5000 Mbit/s. Power over Ethernet (PoE). Product colour: White
Teknisk specifikation
Features
| 2.4 GHz | Yes |
|---|
| 5 GHz | Yes |
|---|
| Maximum data transfer rate | 5000 Mbit/s |
|---|
| Maximum data transfer rate (2.4 GHz) | 2500 Mbit/s |
|---|
| Maximum data transfer rate (5 GHz) | 5000 Mbit/s |
|---|
| Ethernet LAN data rates | 100,1000,2500,5000 Mbit/s |
|---|
| Networking standards | IEEE 802.11a,IEEE 802.11ac,IEEE 802.11ax,IEEE 802.11b,IEEE 802.11d,IEEE 802.11g,IEEE 802.11h,IEEE 802.11n,IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at |
|---|
| Bluetooth | Yes |
|---|
| Channels quantity | 29 channels |
|---|
| Bluetooth version | 5.0 |
|---|
| MIMO | Yes |
|---|
| MIMO type | Multi User MIMO |
|---|
Security
| Security algorithms | AES,EAP,EAP-GTC,EAP-SIM,MSCHAPv2,TLS,TTLS,WPA,WPA2,WPA3 |
|---|
Management features
| Syslog | Yes |
|---|
| Firmware upgradeable | Yes |
|---|
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 1 |
|---|
| Internal RJ-45 ports quantity | 1 |
|---|
| USB 2.0 ports quantity | 1 |
|---|
| WAN connection | Ethernet (RJ-45),Mobile network (SIM),Wi-Fi |
|---|
Power
| Power over Ethernet (PoE) | Yes |
|---|
| Power plug type | Type C |
|---|
Design
| Placement | Ceiling,Floor,Table |
|---|
| Product colour | White |
|---|
| On/off switch | Yes |
|---|
Antenna
| Antenna type | Internal & external |
|---|
| Antenna direction type | Omni-directional |
|---|
| Antenna features | Detachable antenna |
|---|
| Antennas quantity | 4 |
|---|
| Antenna gain level (max) | 6 dBi |
|---|
| Antenna connector type | RP-TNC |
|---|
| Number of connectors | 2 |
|---|
Performance
| Internal memory | 2048 MB |
|---|
| Flash memory | 1024 MB |
|---|
Technical details
| Products per shipping (inner) case | 1 pc(s) |
|---|
Weight & dimensions
| Width | 216 mm |
|---|
| Depth | 216 mm |
|---|
| Height | 51 mm |
|---|
| Weight | 1360 g |
|---|
Packaging data
| CD manual | Yes |
|---|
| Package width | 244.602 mm |
|---|
| Package depth | 263.652 mm |
|---|
| Package height | 90.424 mm |
|---|
| Package weight | 671.2 g |
|---|
Packaging content
| AC adapter included | Yes |
|---|
| PoE adapter included | Yes |
|---|
Operational conditions
| Operating relative humidity (H-H) | 10 - 90 % |
|---|
| Operating temperature (T-T) | -20 - 50 °C |
|---|
| Storage temperature (T-T) | -39 - 70 °C |
|---|
| Non-operating altitude | 0 - 4572 m |
|---|
| Operating altitude | 0 - 3000 m |
|---|
Logistics data
| Harmonized System (HS) code | 85176990 |
|---|
| Quantity per pack | 1 pc(s) |
|---|
| Country of origin | Mexico |
|---|
| Products per master (outer) case | 1 pc(s) |
|---|
